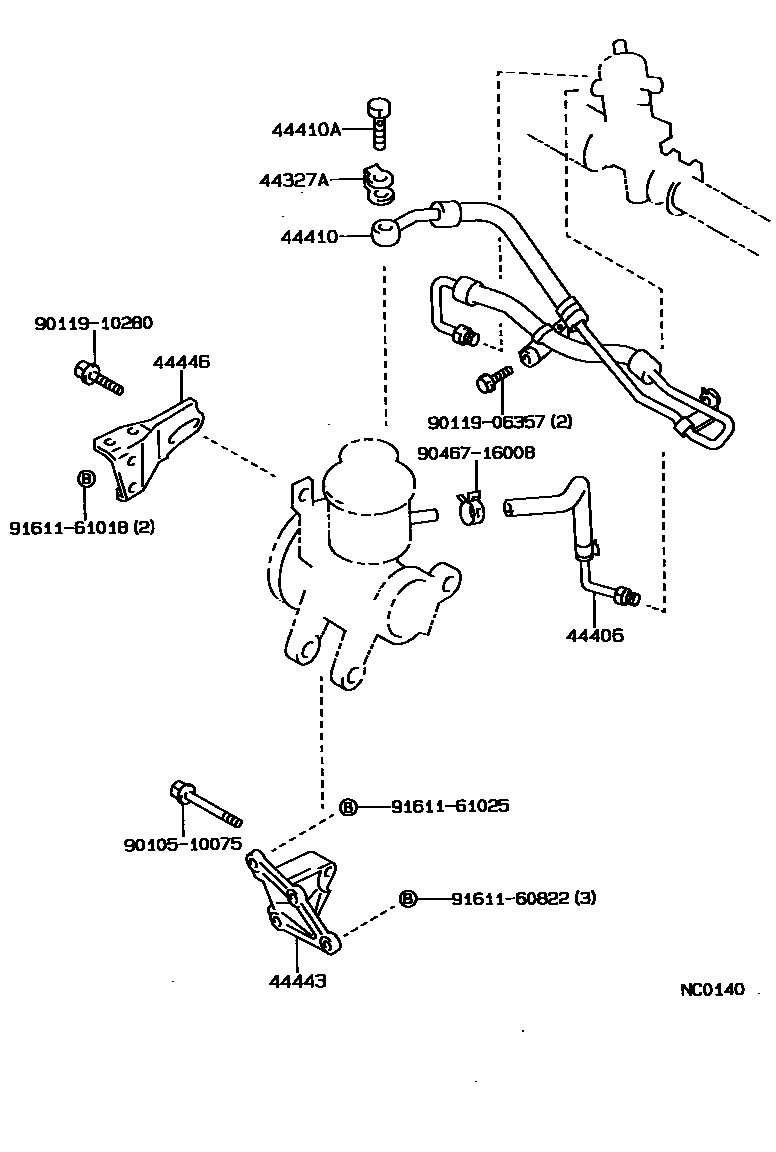

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE91..L198705-198707

44406TUBE SUB-ASSY, RETURN

main44406-12080iAE91199001-199106

main44406-12090iAE91..3FC; AE91..5F..L198707-198905

44410TUBE ASSY, PRESSURE FEED

main44410-12220iAE91199001-199106

main44410-12240iAE91..3FC; AE91..5F..L198707-198905

main44410-12260iAE92..EFI198705-198905

main44410-12261iAE92..EFI198905-199005

main44410-12262iAE92..EFI199005-199106

main44410-12290iAE92..SPC198705-198801

main44410-12292iAE92..SPC198811-198905

main44410-12293iAE92..SPC198801-198811

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE91..3FC; AE91..5F..L198707-198905

44443BRACKET, PUMP

main44443-12050iAE91..L198705-198707

main44443-12060iAE92..EFI198705-199106

44446STRUT, ADJUSTING

main44446-12040iAE91..L198705-198707

main44446-12070iAE92..SPC198705-199106

9010510075

main90105-10075

9011906357

main90119-06357

9011910280

main90119-10280

9046716008

main90467-16008

9161161018

main91611-61018

9161161025

main91611-61025

9166160822

main91661-60822

13 parts on this diagram · 3 diagrams in section
