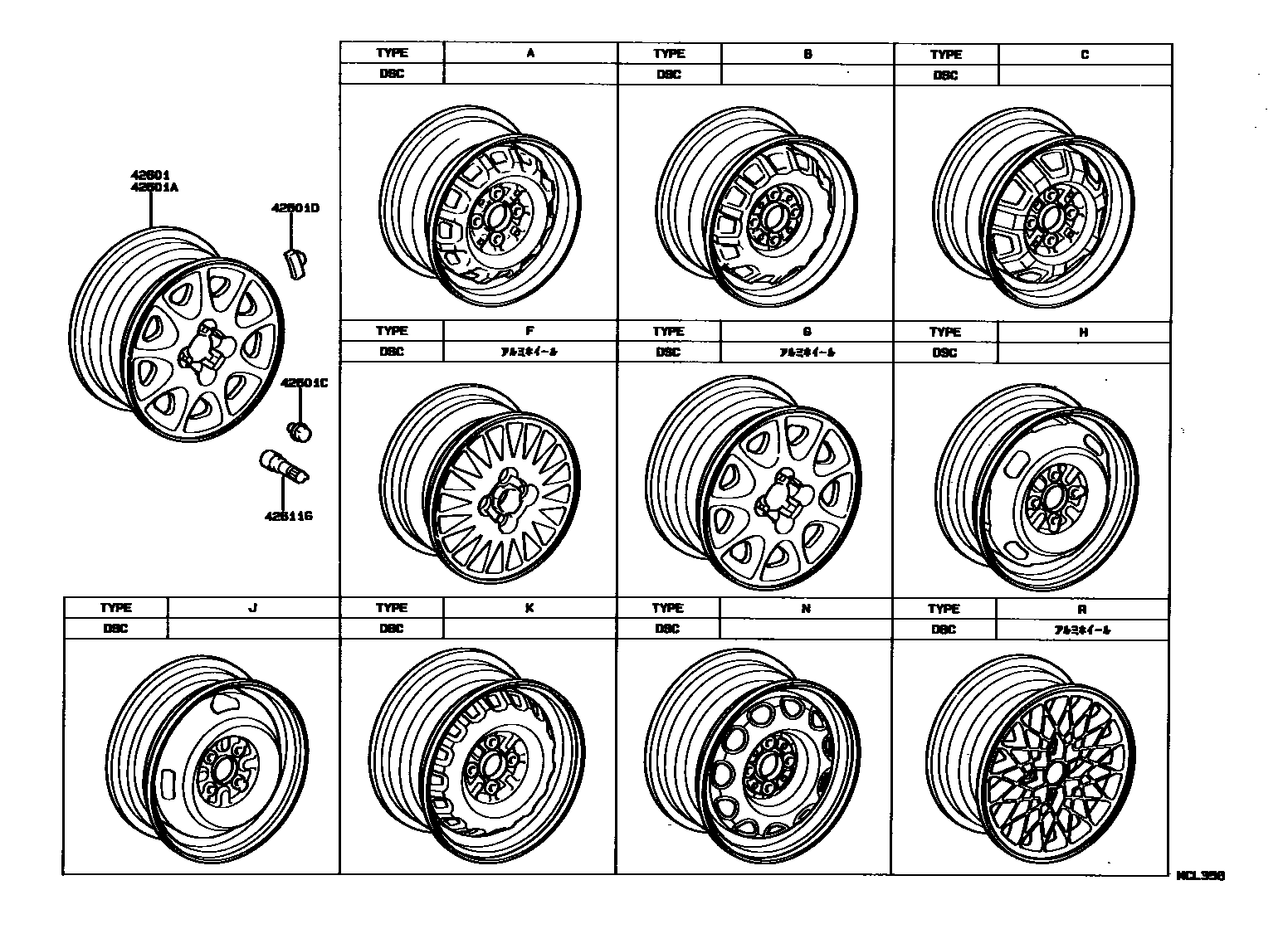

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-12760-01×4iAE91..L198705-198805

main42611-12760-03×4iAE91..L..CBR; AE91..L..EFI198808-199106

main42611-12820×4iAE91..G198705-198808

main42611-12820-03×4iAE91..G198705-198805

main42611-12840×4iAE92198705-198811

main42611-12840-03×4iAE92..GT; AE92..GTAPX; AE92..GTV,GTZ198811-198905

main42611-12850×4iAE91..G,XI198705-199106

main42611-12870×4iAE91..G,XI198705-199106

main42611-12880×4iAE92..SPC198705-198811

main42611-1A060-01×4iAE91..EFIS; AE92..EFI198905-199106

main42611-20300×4iAE91..EFI198705-198805

main42611-20300-03×4iAE91..(G,XI)..EFI198805-199106

42601AWHEEL, DISC (FOR SPARE)

main42611-16200iAE91..EFI198905-199106

main42611-17040iAE9#..GT,GTAPX,GTZ,XS198905-199106

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iAE9#..GTAPX,L,XI; AE92..SPC198705-198805

main90942-01021×16iAE91..4FC..G..EFI198811-199106

main90942-01033×16iAE91..G,XI198705-199106

main90942-01058×16iAE9#..EFI; AE92..SPC198705-198905

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iAE9#198705-199106

main90942-03020iAE9#198705-199106

main90942-03022iAE9#198705-199106

main90942-03025iAE9#198705-199106

main90942-03027iAE9#198705-199106

main90942-03029iAE9#198705-199106

main90942-03031iAE9#198705-199106

main90942-03041iAE9#198705-199106

main90942-03098iAE9#198705-199106

main90942-03099iAE9#198705-199106

main90942-03100iAE9#198705-199106

main90942-03101iAE9#198705-199106

main90942-03102iAE9#198705-199106

main90942-03108iAE9#198705-199106

main90942-03109iAE9#198705-199106

main90942-03119iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03120iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03121iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03122iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03123iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03124iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03125iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03126iAE9#..EFI; AE92..SPC198705-198905

main90942-03127iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03128iAE9#..EFI; AE92..SPC198705-198905

main90942-03129iAE9#..EFI; AE92..SPC198705-198905

main90942-03130iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03131iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03132iAE9#..EFI; AE92..SPC198705-198905

main90942-03133iAE91..EFIS; AE92..EFI; AE92..SPC198905-199106

main90942-03146iAE91..G,XI198705-199106

main90942-03147iAE91..G,XI198705-199106

main90942-03148iAE91..G,XI198705-199106

main90942-03149iAE91..G,XI198705-199106

main90942-03150iAE91..G,XI198705-199106

main90942-03151iAE91..G,XI198705-199106

main90942-03152iAE91..G,XI198705-199106

main90942-03153iAE91..G,XI198705-199106

main90942-03154iAE91..G,XI198705-199106

main90942-03155iAE91..G,XI198705-199106

main90942-03156iAE91..G,XI198705-199106

main90942-03157iAE91..G,XI198705-199106

main90942-03158iAE91..G,XI198705-199106

main90942-03159iAE91..G,XI198705-199106

main90942-03160iAE91..G,XI198705-199106

main90942-03161iAE9#198705-199106

main90942-03163iAE9#..EFI; AE92..SPC198705-198905

main90942-03167iAE91..G,XI198705-199106

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAE9#198705-199106

5 parts on this diagram · 2 diagrams in section
