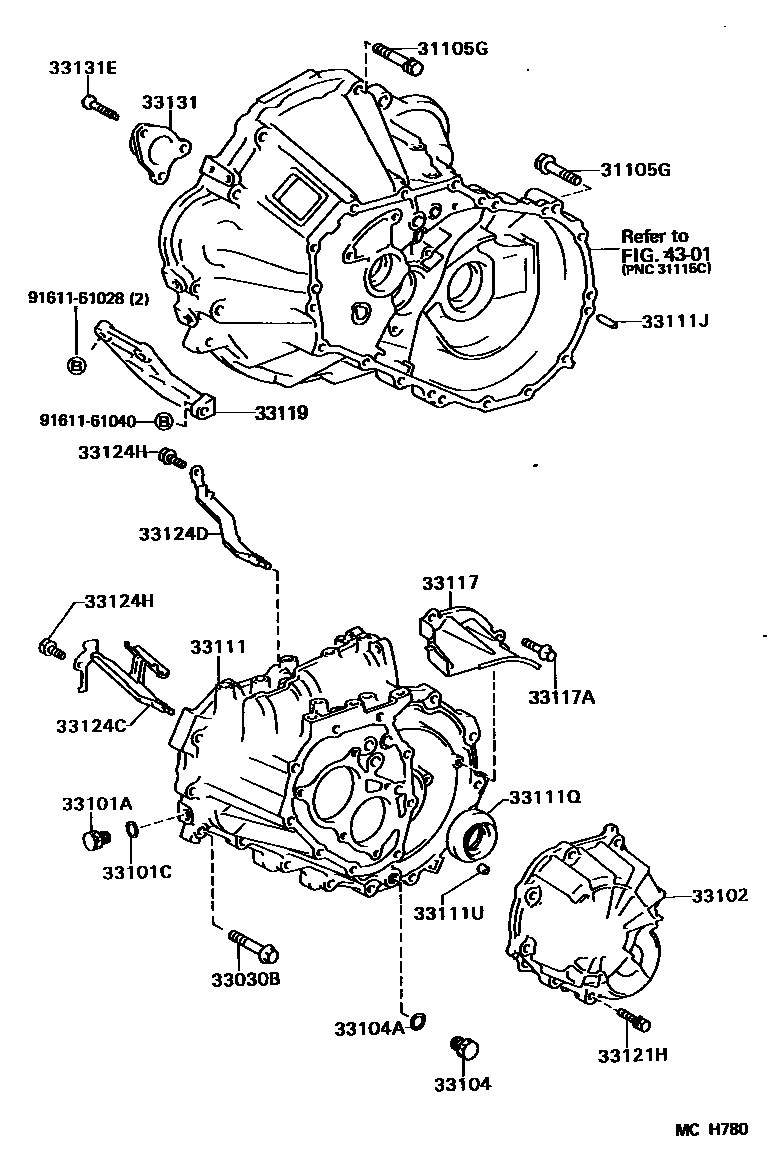

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C52 0002 1E52,E58

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10065×3iAE92..SPC198705-198805

main90105-10077iAE9#..5F198705-199106

main90119-12042iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main90119-12128iAE92..SPC198705-199106

main90119-12168×2iAE9#..5F..(CBR,EFI)198805-198808

main91611-61025iAE91..5F198905-199106

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×16iAE9#..5F..(CBR,EFI)198705-198904

main90105-08086×3iAE9#..5F..(CBR,EFI,EFIS)198904-199106

main90105-08126×17iAE92..SPC198705-199106

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE9#..5F..(CBR,EFI,EFIS)198710-199106

main90341-18033iAE92..SPC198710-199106

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE9#..5F198705-199106

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAE9#..5F..(CBR,EFI,EFIS)198705-199105

main33102-12021iAE9#..5F..(EFI,EFIS)199105-199106

main33102-12030iAE92..SPC198805-199106

main33102-20040iAE92..SPC198705-198805

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE9#..5F198705-199106

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE9#..5F198705-199106

33111CASE, MANUAL TRANSMISSION

main33101-20030iAE92..SPC198705-198805

main33101-32010iAE92..SPC198805-198907

main33101-32011iAE92..SPC198907-199106

main33111-16040iAE9#..CBR,EFI,EFIS198705-199106

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iAE9#..5F..(CBR,EFI); AE92..SPC198705-198805

main90250-12005×2iAE92..SPC198705-199106

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE9#..CBR,EFI,EFIS198705-199106

main90311-50010iAE92..SPC198705-199106

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAE9#..5F..(CBR,EFI,EFIS)198705-199106

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE91..5F198705-199011

main33117-16010iAE9#..5F..(EFI,EFIS)199011-199106

main33117-17010iAE92..5F..EFI198905-199011

main33117-20020iAE92..SPC198705-199106

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE9#..5F198705-199106

33119PLATE, STIFFENER, LH(MTM)

main33119-17011iAE92..5F..EFI198905-199106

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089×10iAE92..SPC198705-198805

main90119-08630×10iAE92..SPC198805-199106

main91611-60835×9iAE9#..5F..(CBR,EFI,EFIS)198705-199106

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main33124-12030iAE92..SPC198805-199106

main33124-20030iAE92..SPC198705-198805

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE9#..5F..(CBR,EFI)198705-198905

main33124-12040iAE92..SPC198805-199106

main33124-20020iAE92..SPC198705-198805

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAE92..SPC198709-199106

main91611-60818iAE92..SPC198705-198709

main91611-60820×2iAE9#..5F..(CBR,EFI)198705-198904

33131RETAINER, BEARING, FRONT(MTM)

main33131-12070iAE9#..5F..(CBR,EFI)198705-198708

main33131-12071iAE9#..5F..(CBR,EFI,EFIS)198708-199106

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAE9#..5F..(CBR,EFI,EFIS)198705-199106

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9161161028

main91611-61028

9161161040

main91611-61040

23 parts on this diagram · 2 diagrams in section
