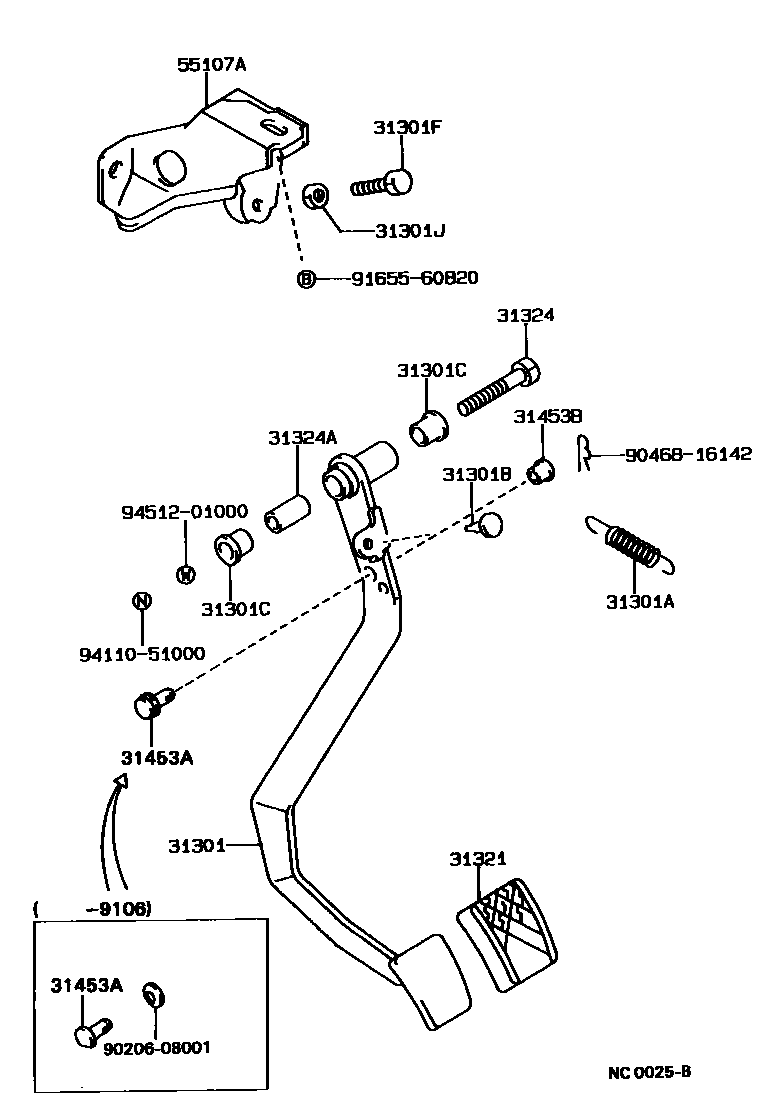

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12330iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main31310-12020iAE92..SPC198705-198905

main31310-12021iAE92..SPC198905-199106

31301ASPRING(FOR CLUTCH PEDAL)

main90501-40015iAE92..SPC198705-199106

main90506-14002iAE9#..5F..(CBR,EFI,EFIS)198705-199106

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main90541-07010iAE92..SPC198705-199106

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAE9#..5F199002-199106

main90386-13192iAE9#..5F198705-199002

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE9#..5F198705-199106

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iAE9#..5F198705-199106

31321PAD, CLUTCH PEDAL

main31321-12030iAE9#..5F198705-198708

main31321-12040iAE9#..5F198708-199106

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main90101-10081iAE92..SPC198705-199106

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE9#..5F198705-199106

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAE9#..5F..(CBR,EFI)198705-199106

main90249-08143iAE92..SPC198705-199106

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAE9#..5F198705-199106

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12110iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main55107-12120iAE92..SPC198705-199106

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 3 diagrams in section
