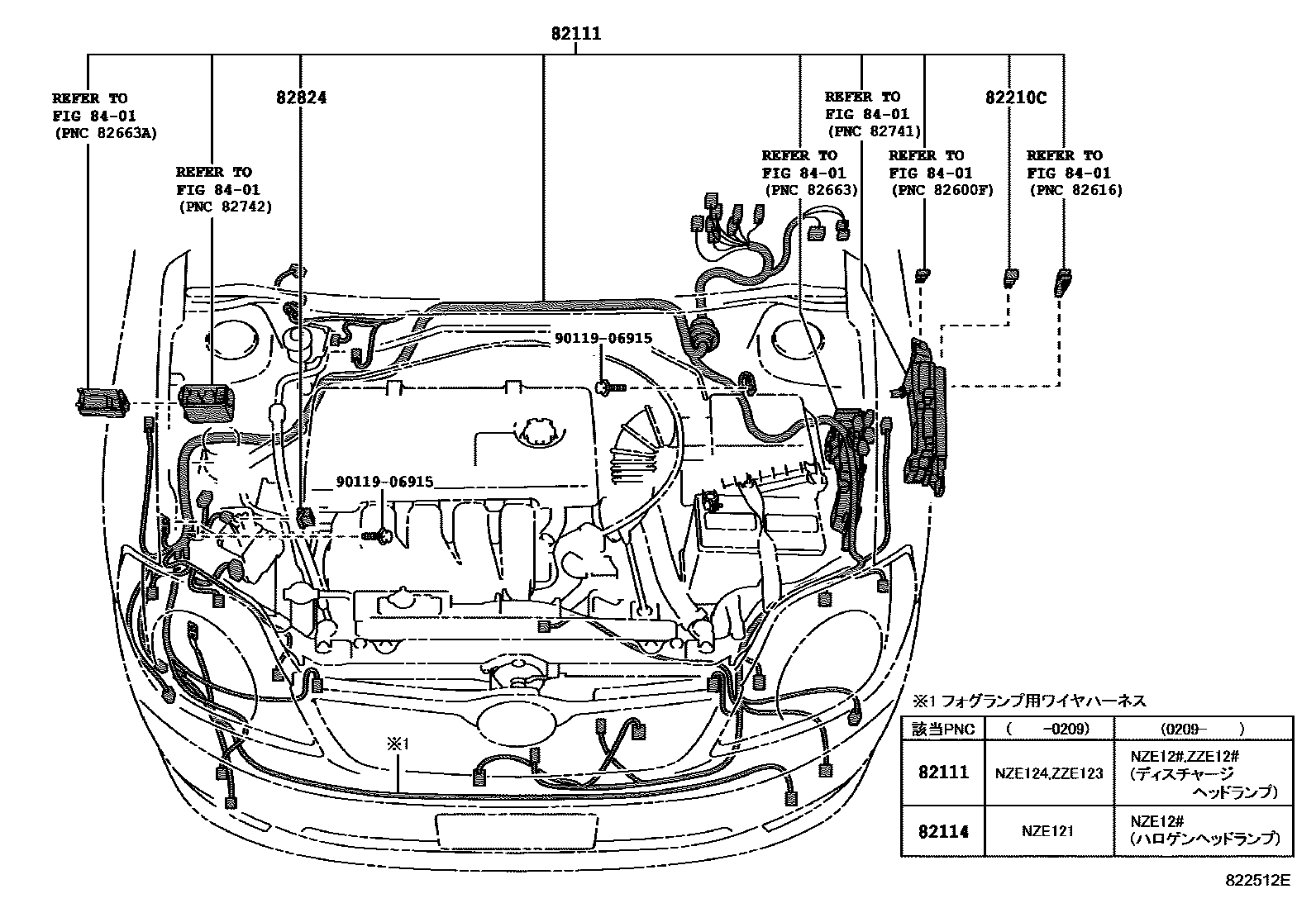

82111WIRE, ENGINE ROOM MAIN

main82111-13A00iNZE124200404-200609

main82111-13A10iNZE121200404-200609

main82111-13A20iNZE124200404-200609

main82111-13A30iNZE121200404-200609

main82111-13A40iNZE124,ZZE123,124200404-200411

main82111-13A41iNZE124; NZE124,ZZE123,124200412-200609

main82111-13A50iNZE121,ZZE122200404-200411

main82111-13A51iNZE121; NZE121,ZZE122200412-200609

main82111-1K410iZZE123200101-200209

main82111-1K420iNZE121200101-200209

main82111-1K530iNZE124200101-200209

main82111-1K760iNZE121200209-200404

main82111-1K770iNZE121,ZZE122200209-200404

main82111-1K790iNZE121,ZZE122200209-200404

main82111-1K800iZZE123200209-200404

main82111-1K810iNZE124200209-200404

main82111-1K820iNZE124,ZZE124200209-200404

main82111-1K830iNZE124,ZZE124200209-200404

82114WIRE, ENGINE ROOM, NO.4

main82114-12050iNZE121200101-200209

main82114-12080iNZE12#200209-200404

main82114-12090iNZE12#200404-200609

82210CFUSIBLE LINK

main90982-08246iNZE12#,ZZE123200101-200209

main90982-08280iNZE12#,ZZE12#200209-200404

main90982-08281iNZE12#,ZZE123200101-200209

main90982-08282iNZE12#,ZZE12#200404-200609

main90982-08283iNZE12#,ZZE12#200404-200609

main90982-08284iNZE12#,ZZE12#200404-200609

82824CONNECTOR, WIRING HARNESS

main82824-12300iNZE12#,ZZE123200101-200209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

6 parts on this diagram · 10 diagrams in section
