REAR COMBINATION LAMP

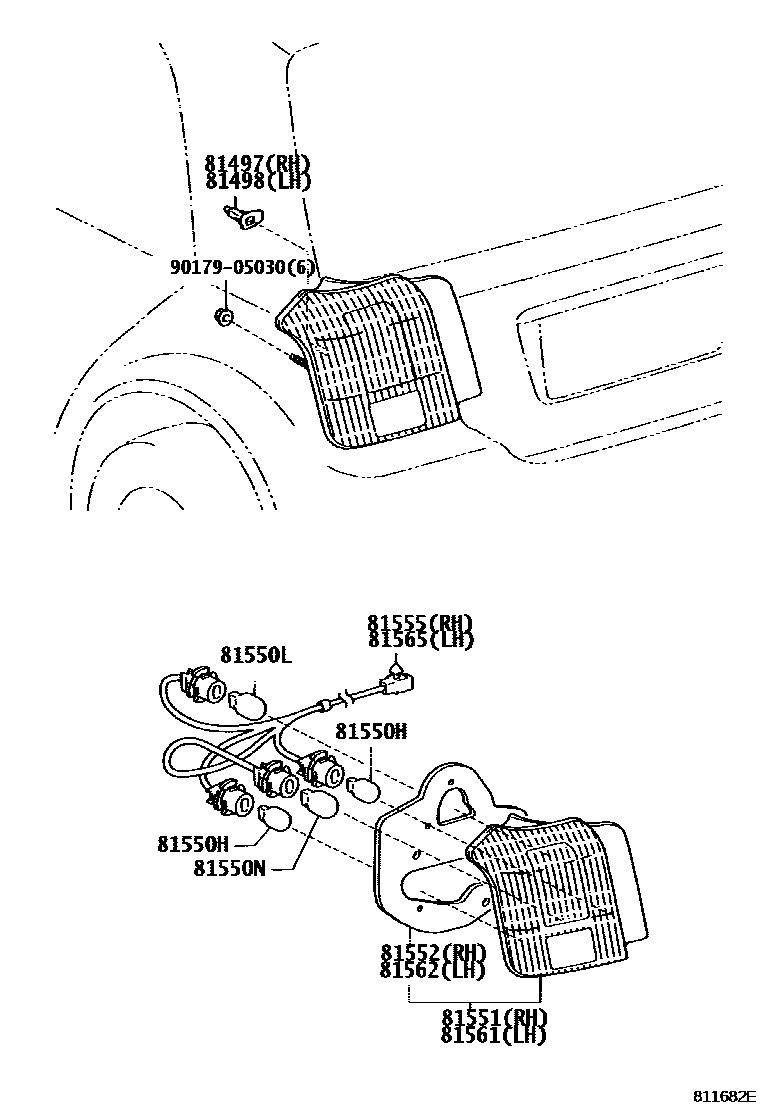

Parts diagram
81497COVER, REAR COMBINATION LAMP, RH
main81497-13010i200101-200609
81498COVER, REAR COMBINATION LAMP, LH
main81498-13010i200101-200609
81550HBULB, TAIL & STOP LAMP
main90981-13044i200101-200404
main90981-13044i200101-200404
main99132-21210i200404-200609
81550LBULB, REAR TURN SIGNAL LAMP
main90981-13043i200101-200209
main90981-15001i200209-200404
sub90981-15011
main99132-11210i200404-200609
81550NBULB, BACK UP LAMP
main90981-13043i200101-200404
main99132-11210i200404-200609
81551LENS, REAR COMBINATION LAMP, RH
main81551-13480i200101-200209
main81551-13490i200101-200209
main81551-13550i200209-200404
main81551-13560i200209-200404
main81551-13650i200404-200609
main81551-13660i200404-200609
81552GASKET, REAR COMBINATION LAMP LENS, RH
main81552-13480i200101-200209
main81552-13550i200209-200404
main81552-13660i200404-200609
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-13480i200101-200209
main81555-13490i200101-200209
main81555-13550i200209-200404
main81555-13560i200209-200404
81561LENS, REAR COMBINATION LAMP, LH
main81561-13470i200101-200209
main81561-13480i200101-200209
main81561-13490i200209-200404
main81561-13500i200209-200404
main81561-13620i200404-200609
81562GASKET, REAR COMBINATION LAMP LENS, LH
main81552-13480i200101-200201
main81552-13550i200209-200404
main81552-13660i200404-200609
main81562-13470i200201-200209
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81565-13470i200101-200209
main81565-13480i200101-200209
main81565-13490i200209-200404
main81565-13500i200209-200404
9017905030
main90179-05030

12 parts on this diagram · 5 diagrams in section
