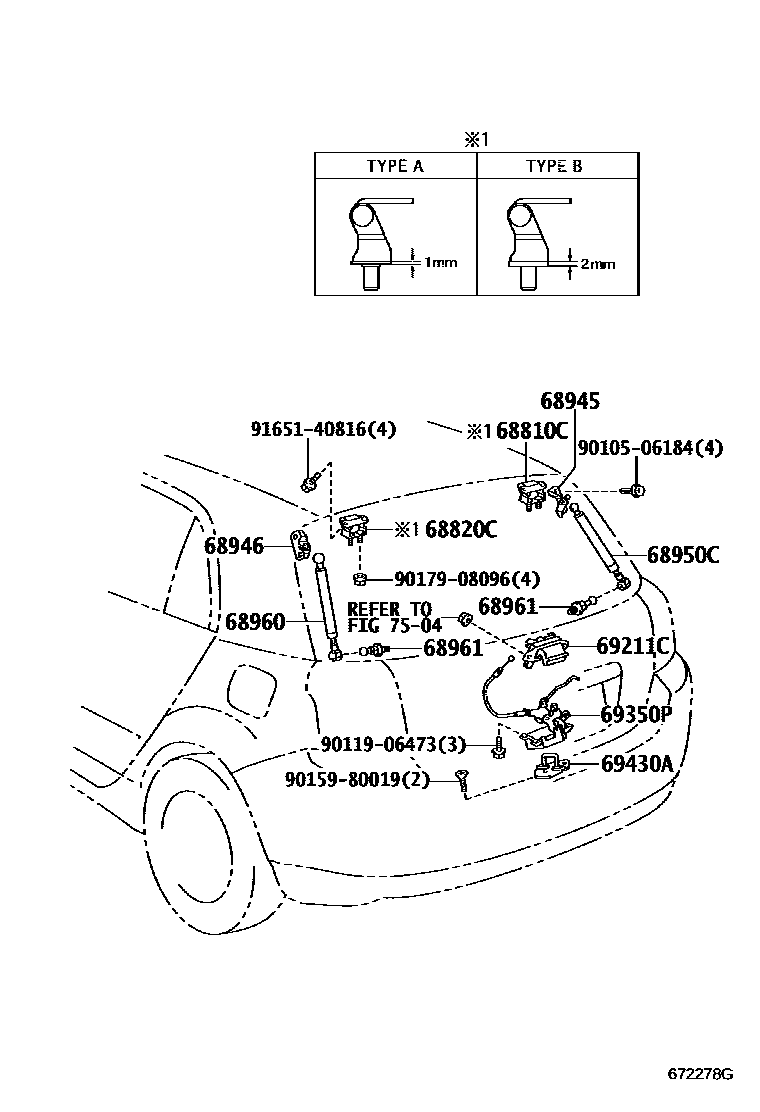

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-12060iNZE12#,ZZE12#200409-200609

main68810-21050iNZE12#,ZZE12#200101-200409

main68810-21050iNZE12#,ZZE12#200409-200609

68820CHINGE ASSY, BACK DOOR, LH

main68810-12060iNZE12#,ZZE12#200409-200609

main68810-21050iNZE12#,ZZE12#200101-200409

main68810-21050iNZE12#,ZZE12#200409-200609

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13050iNZE12#,ZZE123200101-200609

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13050iNZE12#,ZZE123200101-200609

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W080iNZE12#,ZZE12#200101-200412

sub68950-0W081

main68950-0W081iNZE12#,ZZE12#200501-200609

sub68950-0W082

68960STAY ASSY, BACK DOOR, LH

main68960-0W070iNZE12#,ZZE123200101-200412

sub68960-0W071

main68960-0W071iNZE12#,ZZE12#200501-200609

sub68960-0W072

68961BOLT, BACK DOOR STAY

main68961-10030iNZE12#,ZZE123200101-200609

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13010iNZE12#,ZZE123200101-200109

main69023-13020iNZE12#,ZZE123200109-200609

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-13250iNZE12#,ZZE123200101-200209

sub69350-13300

main69350-13300iNZE12#,ZZE12#200209-200404

main69350-13370iNZE12#,ZZE12#200404-200609

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iNZE12#,ZZE123200101-200609

7504

9010506184

main90105-06184

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
