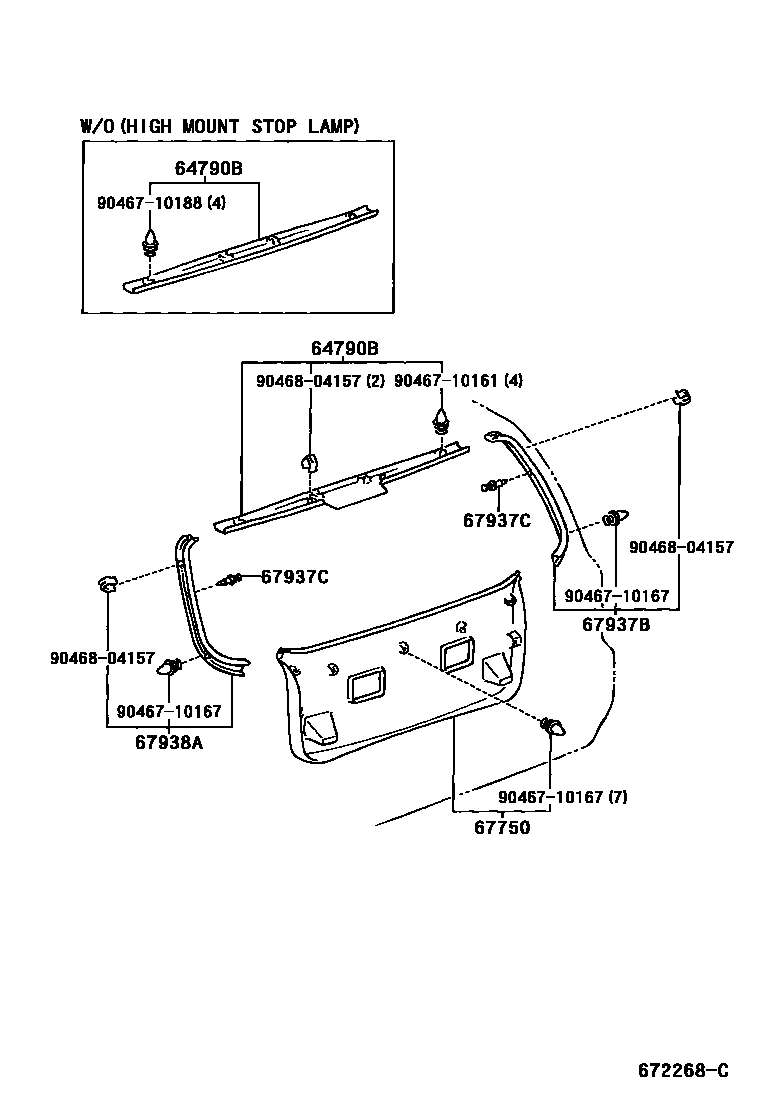

BACK DOOR PANEL & GLASS

0001 1 0002 1

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-13020-B0iNZE12#200101-200404

DK.GRAY,TRIM0#

main64790-13030-B0iZZE123200101-200609

main64790-13030-B0iZZE123200101-200609

main64790-13040-B0iNZE12#200404-200609

67750BOARD ASSY, BACK DOOR TRIM

main67750-13090-B0iZZE123200101-200609

DK.GRAY,TRIM0#,1#

main67750-13090-B0iNZE12#200101-200609

DK.GRAY,TRIM1#

67937BGARNISH, BACK DOOR SIDE, RH

main67937-13010-B0iNZE12#200101-200609

DK.GRAY,TRIM0#,1#

main67937-13010-B0iZZE123200101-200609

DK.GRAY,TRIM1#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main64338-13010iNZE12#,ZZE12#200101-200609

67938AGARNISH, BACK DOOR SIDE, LH

main67938-13010-B0iNZE12#,ZZE122,124200101-200609

DK.GRAY,TRIM0#,1#

main67938-13010-B0iNZE12#200101-200609

DK.GRAY,TRIM1#

9046710161

main90467-10161

9046710167

main90467-10167

9046710188

main90467-10188

9046804157

main90468-04157

9 parts on this diagram · 2 diagrams in section
