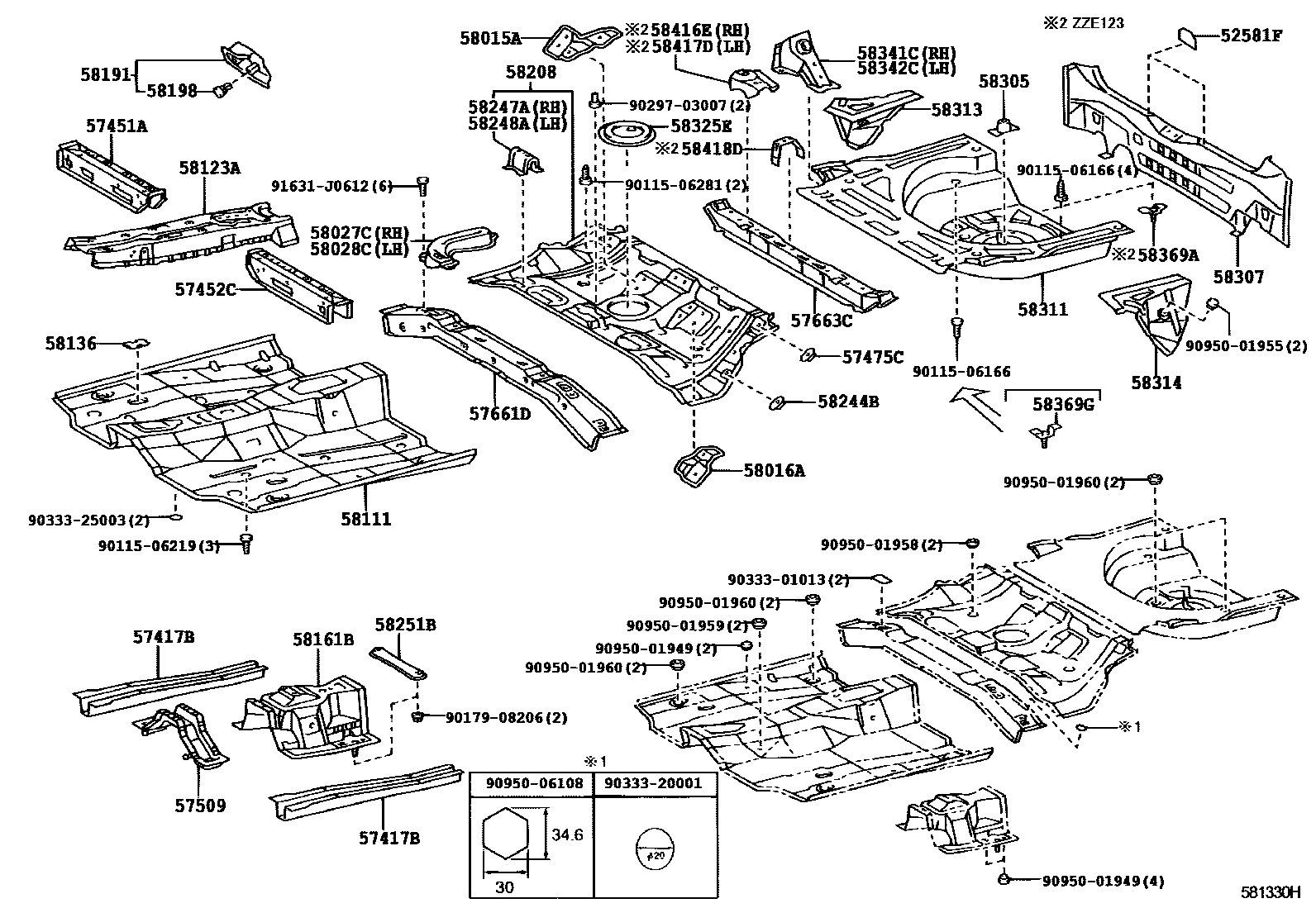

FLOOR PAN & LOWER BACK PANEL
52581FPROTECTOR, REAR BUMPER
57417BREINFORCEMENT, FRONT FLOOR UNDER
57452CMEMBER, FRONT FLOOR CROSS, LH
57475CPLATE, FRONT FLOOR CROSSMEMBER
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
57663CMEMBER, REAR FLOOR CROSS, CENTER
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
58244BBRACKET, REAR SEAT CUSHION MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369ABRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
58416EBRACKET, DECK BOARD, NO.1 RH
58417DBRACKET, DECK BOARD, NO.1 LH
58418DBRACKET, DECK BOARD, NO.2
9011506166
main90115-06166
9011506219
main90115-06219
9011506281
main90115-06281
9017908206
main90179-08206
9029703007
main90297-03007
9033301013
main90333-01013
9033320001
main90333-20001
9033325003
main90333-25003
9095001949
main90950-01949
9095001955
main90950-01955
9095001958
main90950-01958
9095001959
main90950-01959
9095001960
main90950-01960
9095006108
main90950-06108
91631J0612
main91631-J0612
51 parts on this diagram · 2 diagrams in section
