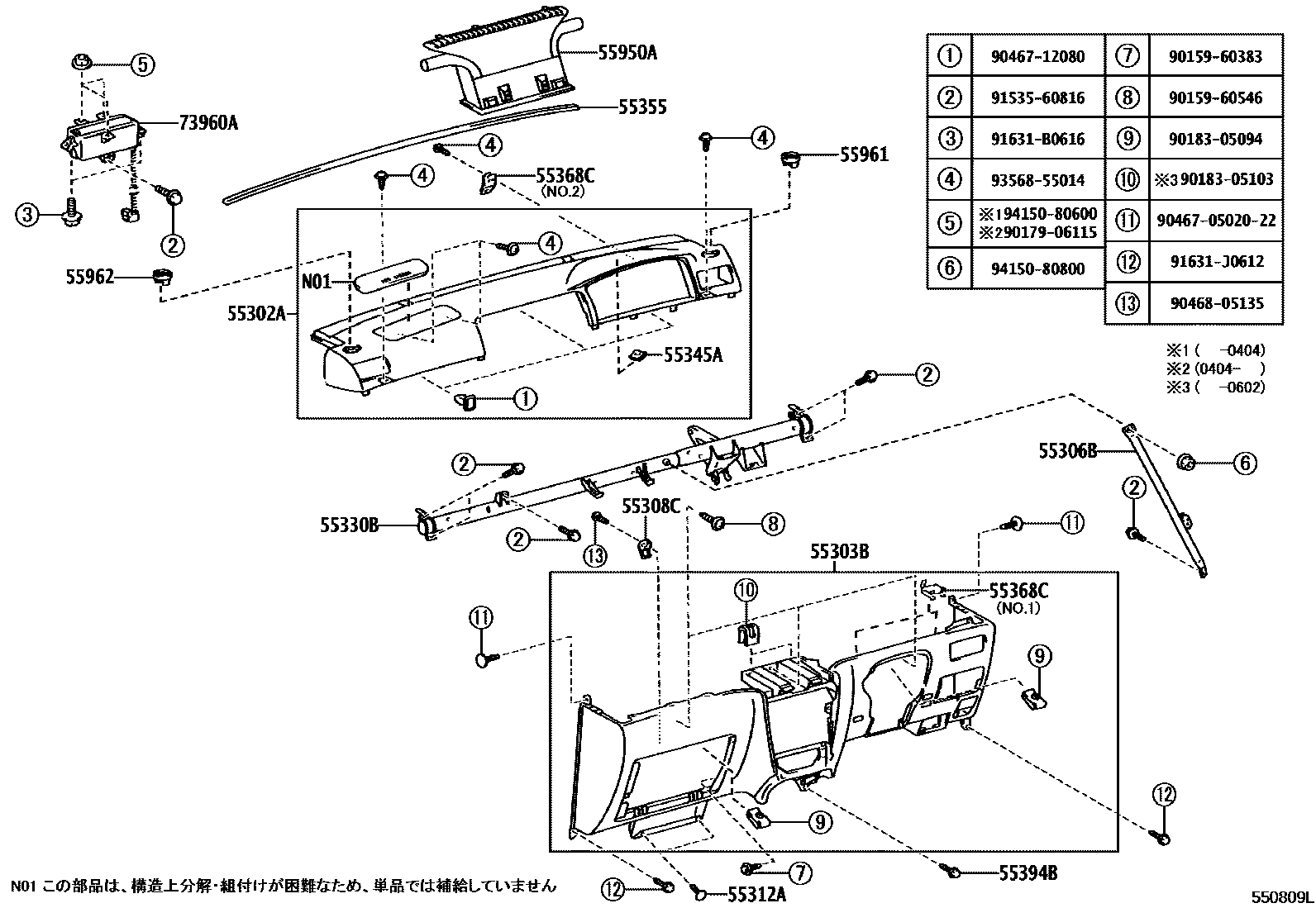

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12010-B0iNZE12#; ZZE123200101-200209

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main55302-12060-B0iNZE12#; ZZE122,124; ZZE123200404-200609

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM0#,14,16; DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12240-A0iNZE12#200101-200102

IVORY,TRIM0#

main55303-12240-B1iNZE12#,ZZE123200101-200102

DK.GRAY,TRIM1#

main55303-12241-A0iNZE12#,ZZE122,124200404-200602

IVORY,TRIM0#

main55303-12241-B1iNZE12#; ZZE12#200404-200602

DK.GRAY,TRIM1#; DK.GRAY,TRIM16

main55303-12241-B2iNZE12#200404-200602

MD.GRAY,TRIM14

main55303-12242-A0iNZE12#;ZZE122,124..ALLEX200602-200609

IVORY,TRIM0#

main55303-12242-B1iNZE12#,ZZE123;ZZE122,124..RUNX200602-200609

DK.GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-12270iNZE12#,ZZE12#200404-200609

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12280iNZE12#,ZZE123200101-200209

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0×2iNZE12#; ZZE123200101-200209

BLACK,TRIM0#,1#; BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12350iNZE121200101-200110

main55330-12351iNZE121200110-200209

main55330-12390iNZE124,ZZE123200101-200111

main55330-12490iNZE124,ZZE123,124200404-200602

main55330-12500iNZE121,ZZE122200209-200404

main55330-12501iNZE121,ZZE122200602-200609

main55330-12740iNZE124,ZZE123,124200602-200609

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNZE12#,ZZE123200101-200209

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iNZE12#,ZZE12#200404-200609

55368CBRACKET, METER MOUNTING

main55362-12050×2iNZE12#,ZZE12#200404-200601

main55368-12090iNZE12#,ZZE12#200209-200404

main55368-12100iNZE12#,ZZE12#200404-200609

55394BBOLT, INSTRUMENT PANEL

main55394-12010iNZE12#,ZZE123200101-200209

main55394-12020iNZE12#,ZZE123200101-200209

55950ANOZZLE ASSY, DEFROSTER

main55950-12240iNZE12#,ZZE123200101-200209

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12220-B0iNZE12#; ZZE123200101-200209

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-12220-B0iNZE12#; ZZE123200101-200209

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12030iNZE12#,ZZE123200101-200209

main73960-12110iNZE12#,ZZE12#200404-200609

9015960383

main90159-60383

9015960546

main90159-60546

9017906115

main90179-06115

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046712080

main90467-12080

9046805135

main90468-05135

9153560816

main91535-60816

91631B0616

main91631-B0616

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

28 parts on this diagram · 4 diagrams in section
