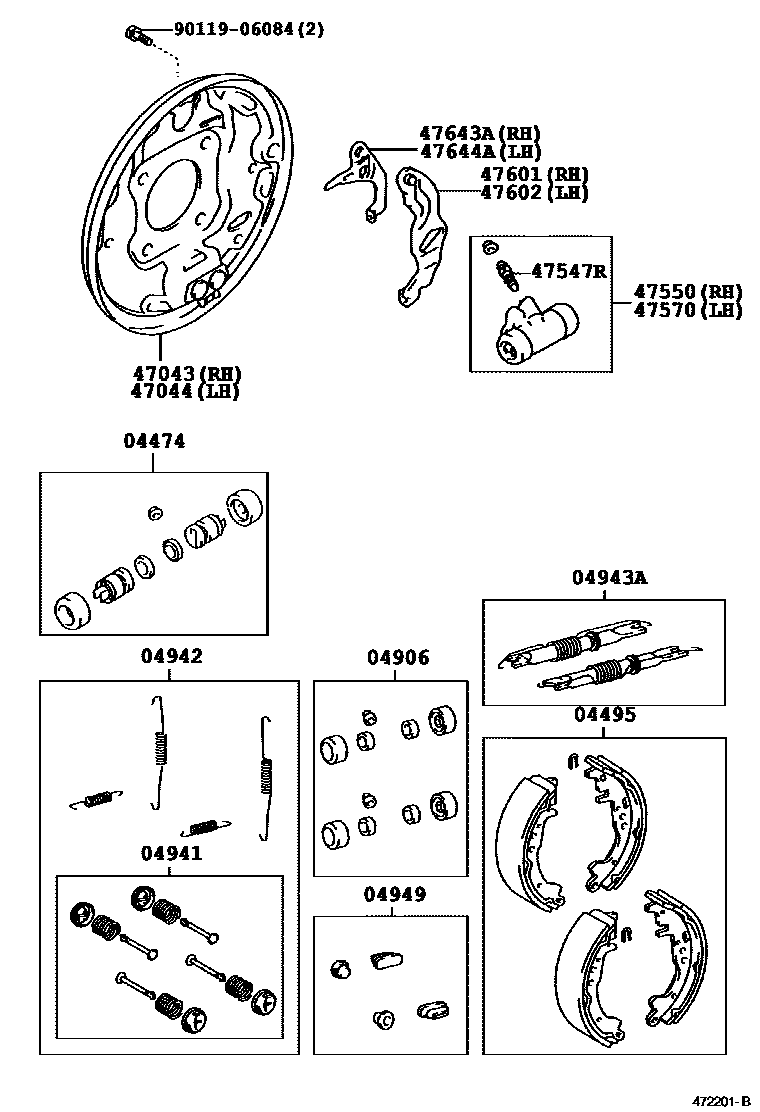

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iNZE121200101-200209

main04474-52020×2iNZE124200101-200209

04495SHOE KIT, REAR BRAKE

main04495-52020iNZE12#,ZZE122,124200209-200404

main04495-52040iNZE12#,ZZE122,124200404-200609

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNZE124,ZZE124200404-200609

main04906-52010iNZE121,ZZE122200209-200404

main04906-52020iNZE124200101-200209

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iNZE12#,ZZE122,124200209-200404

main04941-46010iNZE12#,ZZE122,124200502-200609

04942SPRING KIT, REAR BRAKE

main04942-12010iNZE12#200101-200209

main04942-46010iNZE12#,ZZE122,124200502-200609

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNZE12#200101-200209

04949PLUG KIT, REAR BRAKE

main04949-12010iNZE12#200101-200209

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iNZE12#200101-200209

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iNZE12#200101-200209

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNZE12#,ZZE122,124200404-200609

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNZE124,ZZE124200404-200609

main47550-52011iNZE121,ZZE122200209-200404

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNZE124200101-200209

main47570-52011iNZE121,ZZE122200404-200609

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNZE12#200101-200209

main47601-52100iNZE12#,ZZE122,124200512-200609

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNZE12#200101-200209

main47602-52100iNZE12#,ZZE122,124200512-200609

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNZE12#200101-200209

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNZE12#200101-200209

9011906084

main90119-06084

17 parts on this diagram · 1 diagram in section
