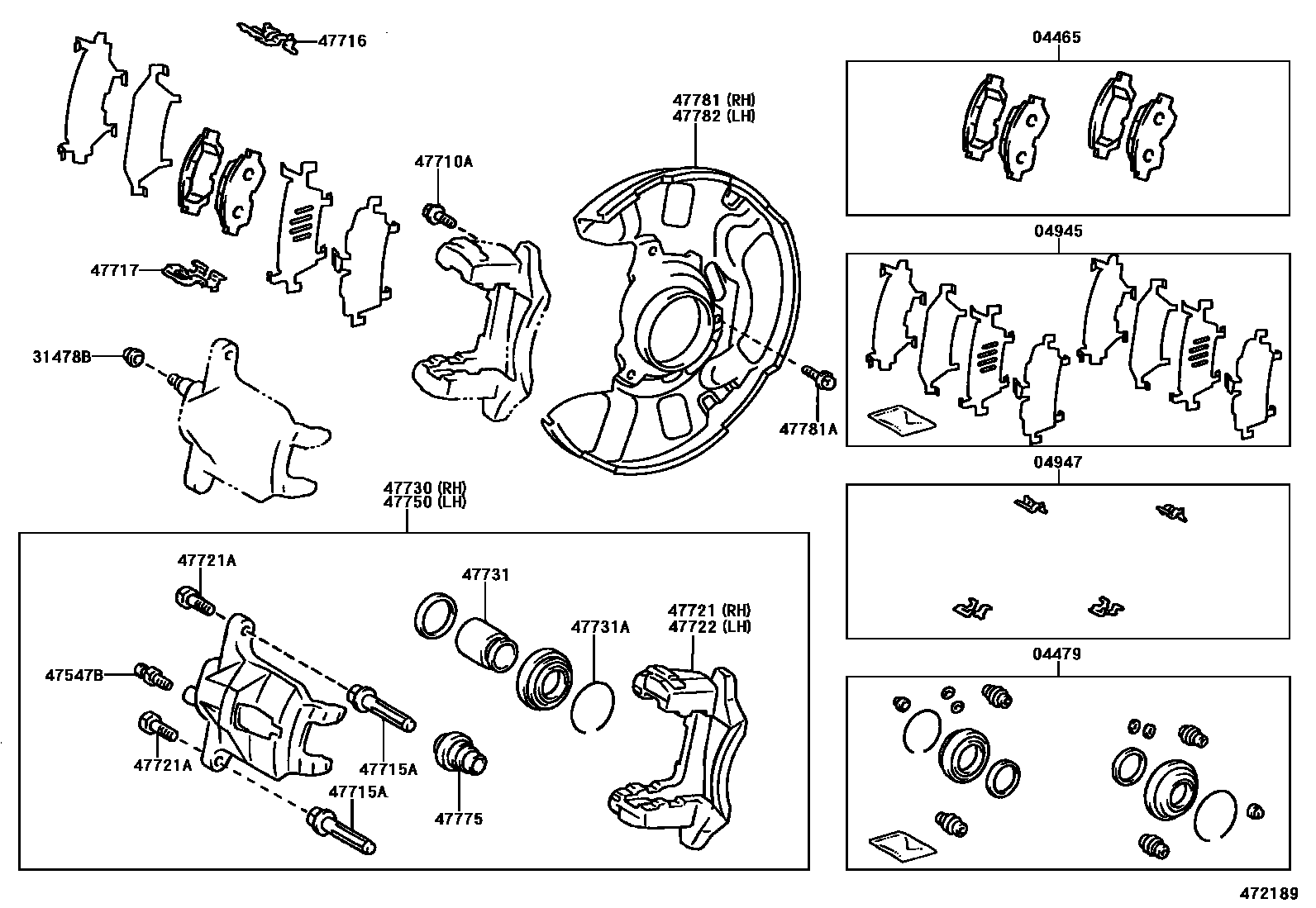

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12580iNZE121200101-200104

main04465-12581iNZE121200209-200404

main04465-12590iNZE124200101-200104

main04465-12591iNZE124200104-200105

main04465-12592iNZE124,ZZE122,124200404-200609

main04465-1A010iZZE123200101-200209

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-13020iZZE123200605-200609

main04479-20320iNZE124,ZZE122,124200404-200609

main04479-20330iZZE123200209-200404

main04479-47020iNZE121200209-200404

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNZE12#200101-200209

main04945-32230iZZE123200101-200209

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iNZE124200101-200209

main04947-20120iZZE123200404-200609

main04947-47010iNZE121200404-200609

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNZE12#,ZZE123200101-200209

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNZE12#,ZZE123200101-200209

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNZE12#,ZZE12#200209-200404

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080×4iZZE123200101-200209

main47715-52010×4iNZE12#200101-200209

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070×2iNZE121200209-200404

main47716-20200×2iNZE124200101-200209

main47716-20210×2iZZE123200101-200209

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030×2iNZE121200101-200209

main47717-20100×2iNZE124200101-200209

main47717-20110×2iZZE123200101-200209

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12220iNZE121200101-200209

main47721-20440iNZE124200101-200209

main47721-20450iZZE123200101-200209

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNZE12#,ZZE123200101-200209

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12040iNZE121200404-200609

main47722-20130iNZE124200101-200209

main47722-20140iZZE123200101-200209

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12490iNZE121200404-200609

main47730-20600iNZE124200101-200209

main47730-20610iZZE123200101-200209

47731PISTON, FRONT DISC BRAKE

main47731-12170×2iNZE121200209-200404

main47731-20260×2iNZE124,ZZE122,124200404-200609

main47731-44010×2iZZE123200209-200404

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iNZE124200101-200209

main90522-66001×2iNZE121,ZZE123200209-200404

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12490iNZE121200209-200404

main47750-20510iNZE124,ZZE122,124200209-200404

main47750-20600iZZE123200101-200209

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iZZE123200101-200209

main47775-50010×4iZZE123200605-200609

main47775-52010×4iNZE12#200101-200209

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iNZE12#,ZZE12#200404-200609

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNZE12#,ZZE123200101-200209

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iNZE12#,ZZE123200101-200209

21 parts on this diagram · 2 diagrams in section
