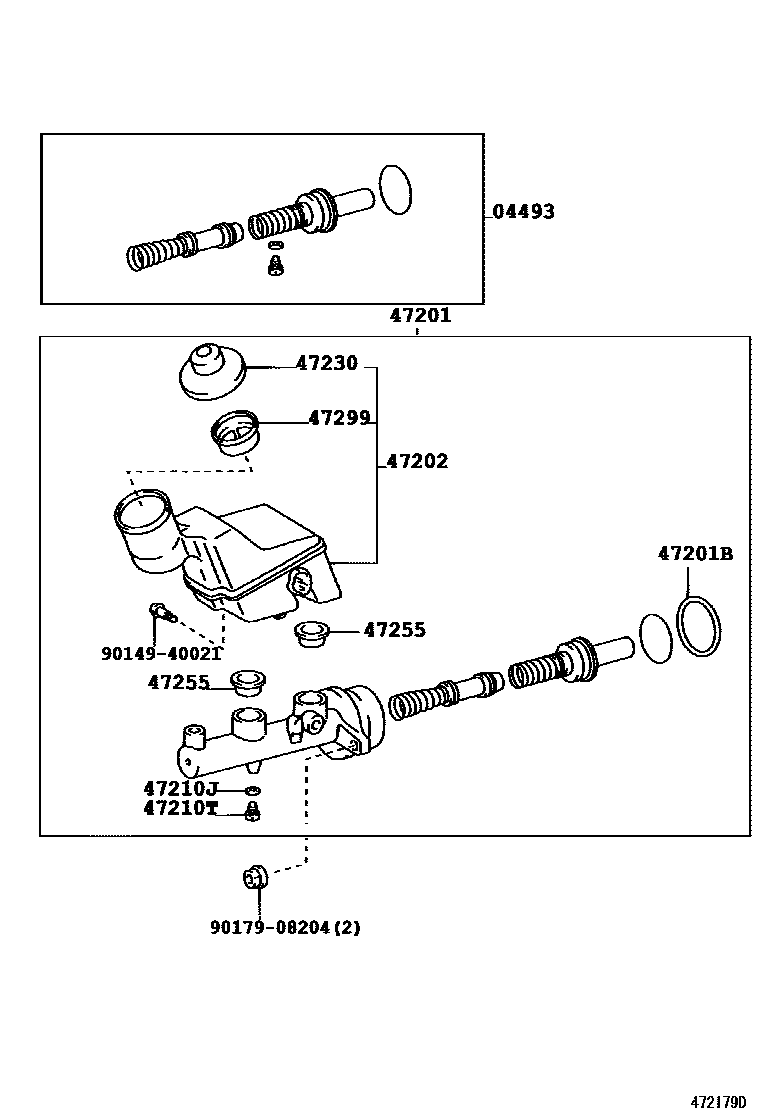

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iNZE12#,ZZE123200101-200404

sub04493-1A030

main04493-1A030iNZE12#,ZZE12#200404-200609

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-1A330iNZE12#,ZZE12#..4FC200101-200609

main47201-1A340iZZE123..6F200101-200609

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNZE12#,ZZE12#200101-200609

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12120iNZE12#,ZZE12#..4FC200101-200404

sub47220-12121

sub90149-40021

main47220-12121iNZE12#,ZZE12#..4FC200404-200609

main47220-12130iZZE123..6F200101-200404

sub47220-12131

sub90149-40021

main47220-12131iZZE123..6F200404-200609

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iNZE12#,ZZE12#200112-200609

main90430-06104iNZE12#,ZZE123200101-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iNZE12#,ZZE12#200101-200609

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iNZE12#,ZZE12#200101-200609

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iNZE12#,ZZE123200101-200609

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNZE12#,ZZE123200101-200609

9014940021

main90149-40021

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
