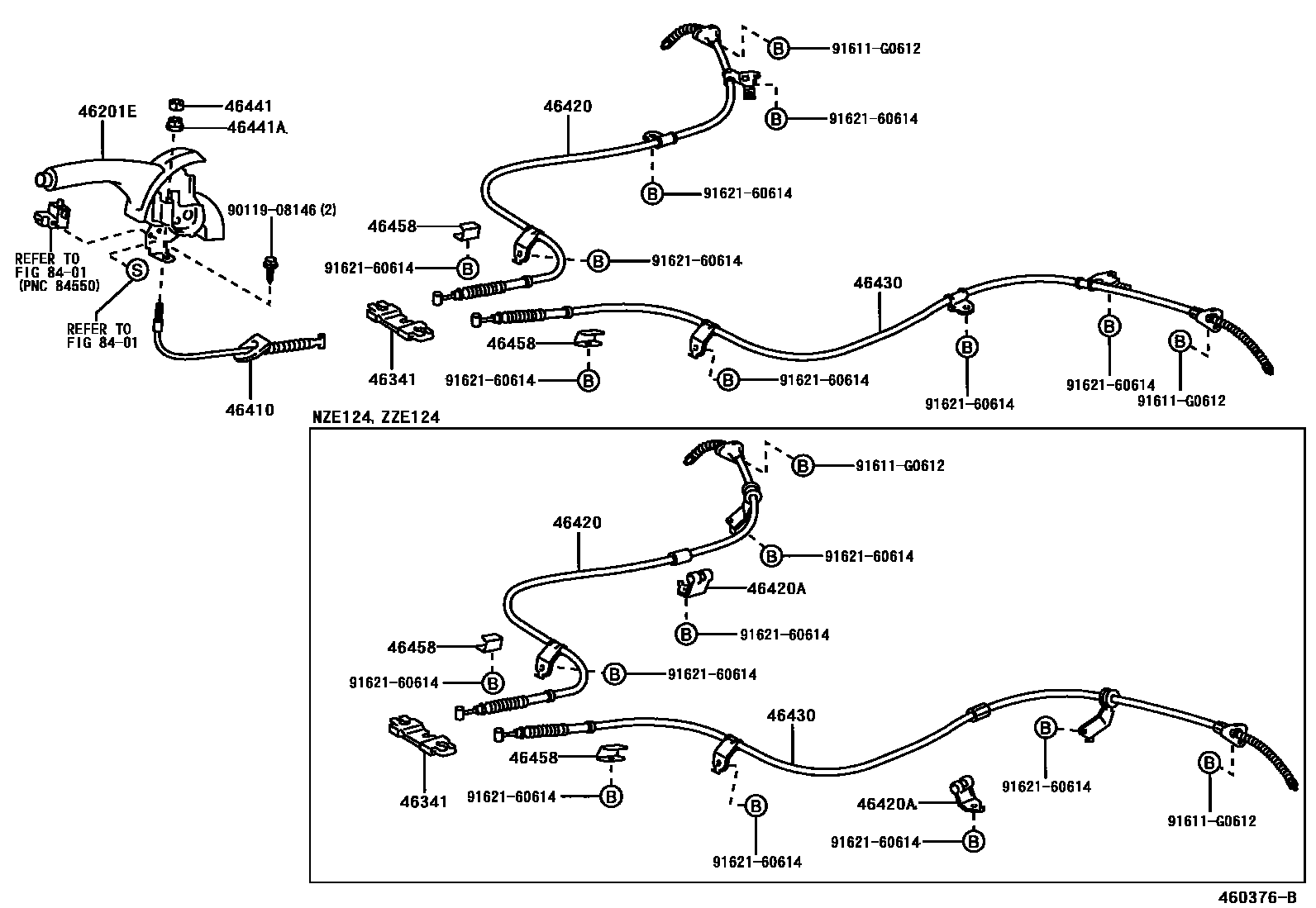

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12230-B0iNZE12#200101-200404

DK.GRAY,TRIM0#,1#

main46201-12230-B0iNZE12#200404-200609

DK.GRAY,TRIM0#,14,16

main46201-12250-B0iZZE123200101-200209

DK.GRAY,TRIM1#

main46201-12320-B0iZZE123200110-200404

main46201-12320-B0iZZE123200404-200609

DK.GRAY,TRIM1#

main46201-12340-B0iZZE122,124200110-200609

main46201-12340-B0iNZE12#200209-200609

DK.GRAY,TRIM0#,1#

46341EQUALIZER, PARKING BRAKE

main46341-20070iNZE12#,ZZE123200101-200609

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12270iNZE12#,ZZE123200101-200609

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12490iZZE123200101-200609

main46420-12510iNZE121200101-200609

main46420-12521iNZE124200101-200609

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C31iNZE124200101-200609

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12400iZZE123200101-200609

main46430-12410iNZE121200101-200609

main46430-12421iNZE124200101-200609

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNZE12#,ZZE123200101-200609

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNZE12#,ZZE12#200107-200609

main90179-06171iNZE12#,ZZE123200101-200107

46458RETAINER, CABLE

main46458-28010iNZE12#,ZZE123200101-200609

8401

9011908146

main90119-08146

91611G0612

main91611-G0612

9162160614

main91621-60614

13 parts on this diagram · 2 diagrams in section
