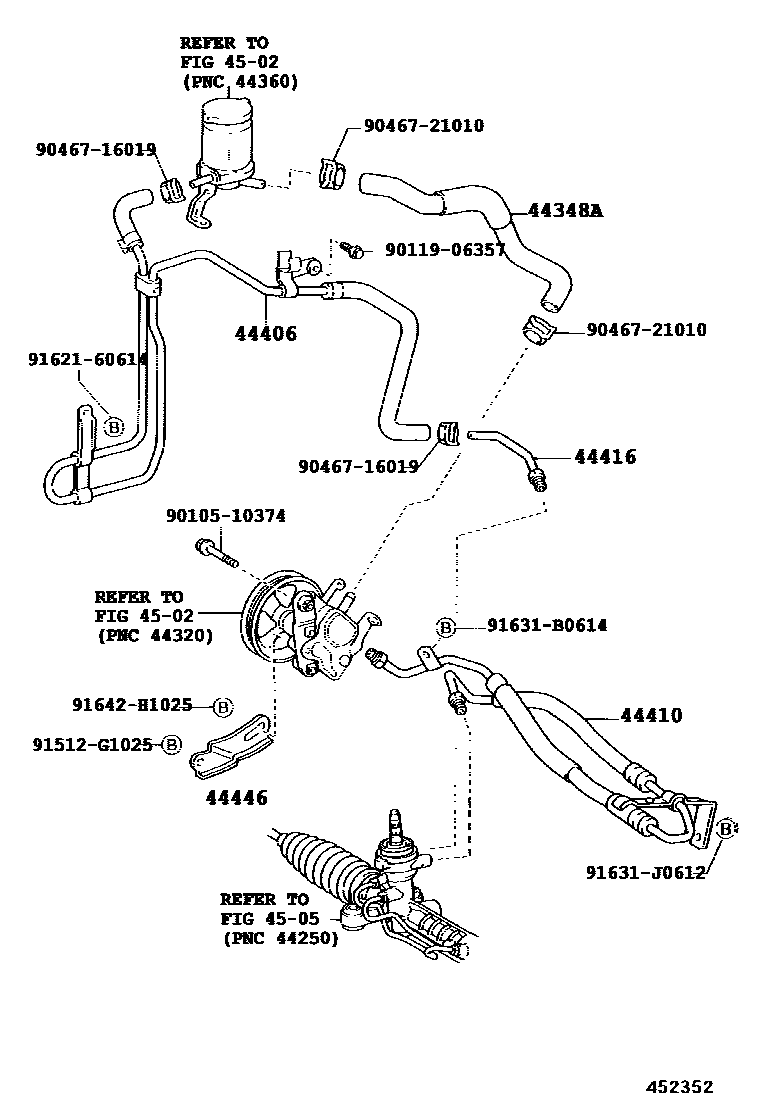

POWER STEERING TUBE

0001 1 0002 1 0003 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12080iNZE124200101-200107

main44348-12081iNZE124200107-200209

main44348-12090iZZE123200101-200107

main44348-12091iZZE123,124200209-200404

44406TUBE SUB-ASSY, RETURN

main44406-12230iZZE123200101-200107

main44406-12231iZZE123200404-200609

main44406-12250iNZE124200101-200107

main44406-12251iNZE124,ZZE124200209-200404

44410TUBE ASSY, PRESSURE FEED

main44410-12600iZZE123200101-200209

main44410-12620iNZE124200101-200209

main44410-12621iNZE124200309-200404

main44410-12630iZZE124200209-200309

main44410-12631iZZE124200309-200404

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12260iNZE124,ZZE124200209-200404

main44416-12270iZZE123200209-200404

44446STRUT, ADJUSTING

main44446-52010iNZE124200404-200609

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510374

main90105-10374

9011906357

main90119-06357

9046716019

main90467-16019

9046721010

main90467-21010

91512G1025

main91512-G1025

9162160614

main91621-60614

91631B0614

main91631-B0614

91631J0612

main91631-J0612

91642H1025

main91642-H1025

16 parts on this diagram · 3 diagrams in section
