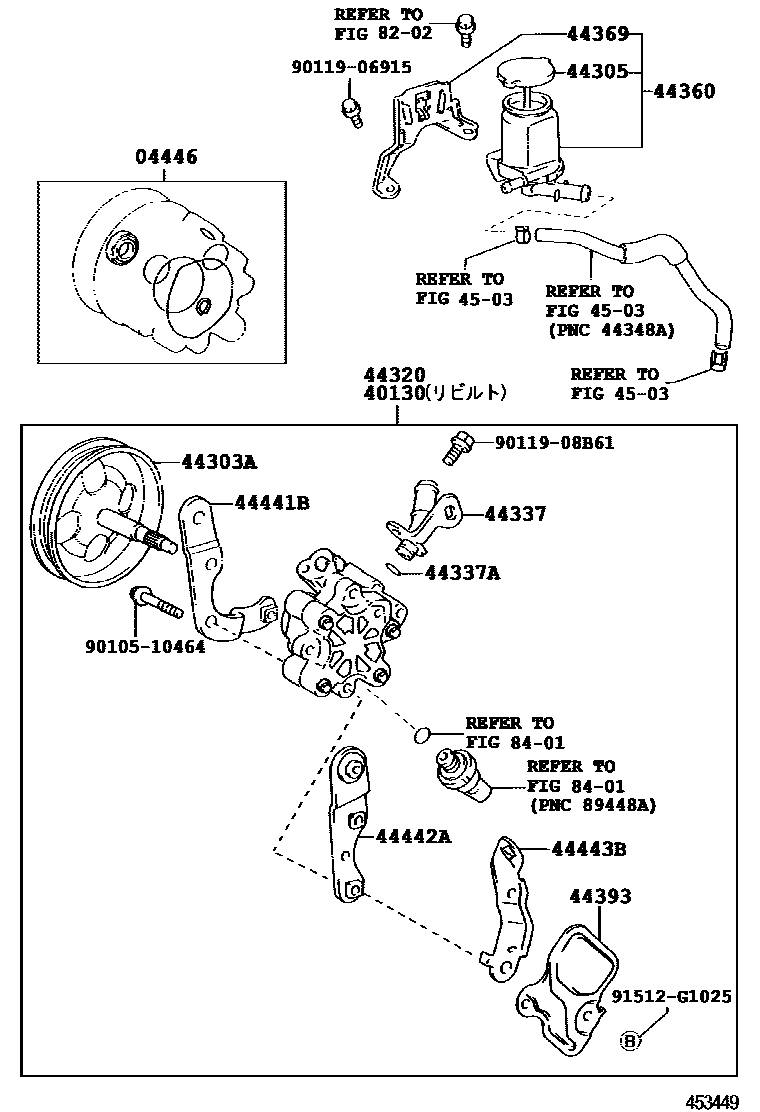

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iNZE124,ZZE123,124200510-200609

main04446-32050iNZE124,ZZE123200101-200209

40130PUMP ASSY,VANE REBUILT

main40130-12530iNZE124200101-200209

main40130-12540iZZE124200209-200404

main40130-12570iZZE123200101-200209

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-20010iZZE123200209-200404

main44303-32010iZZE124200209-200404

main44303-52020iNZE124200101-200209

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iNZE124,ZZE123,124200209-200404

44320PUMP ASSY, VANE

main44310-12530iNZE124200209-200404

main44310-12540iZZE124200209-200404

main44310-12570iZZE123200209-200404

44337UNION, POWER STEERING SUCTION PORT

main44337-12120iNZE124200209-200404

main44337-32110iZZE124200404-200609

main44337-48010iZZE123200404-200609

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iNZE124,ZZE123200101-200209

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12100iNZE124,ZZE123200101-200209

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iNZE124,ZZE123200101-200209

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-42010iZZE124200404-200609

main44393-52010iNZE124200404-200609

main44393-63010iZZE124200209-200302

44441BBRACKET, PUMP, FRONT

main44441-52010iNZE124200101-200209

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZE123,124200404-200609

main44442-52020iNZE124200209-200404

44443BBRACKET, VANE PUMP

main44442-12030iNZE124200101-200209

4503POWER STEERING TUBE

→ Go to FIG 45-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510464

main90105-10464

9011906915

main90119-06915

9011908B61

main90119-08B61

91512G1025

main91512-G1025

20 parts on this diagram · 2 diagrams in section
