04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12100i200312-200404

main04427-12110i200209-200404

main04427-12120i200312-200404

main04427-42080i200404-200609

main04427-52260i200404-200604

main04427-52540i200312-200404

main04427-52580i200604-200609

main04428-12250i200312-200404

main04428-12370i200404-200609

main04438-12481i200209-200312

main04438-12501i200101-200112

main04438-12502i200112-200209

main04438-12540i200101-200209

main04438-12580i200209-200311

main04438-12610i200101-200209

main04438-12670i200201-200209

main04438-52062i200101-200112

main04438-52063i200112-200209

main04438-52080i200209-200312

main04438-63010i200209-200312

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-12090i200209-200404

main04437-12100i200209-200404

main04437-42060i200404-200609

main04437-52030i200404-200604

main04437-52190i200404-200609

main04438-12450i200101-200104

main04438-12490i200101-200209

main04438-12510i200201-200209

main04438-12530i200404-200609

main04438-12870i200404-200609

main04438-32231i200101-200209

main04438-32240i200209-200212

main04438-42200×2i200312-200404

main04438-52230i200604-200609

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-52260i200312-200404

main04427-52580i200604-200609

main04428-12310i200404-200609

main04428-12370i200404-200609

main04428-12390i200510-200609

main04428-42100i200404-200609

main04438-12481i200209-200312

main04438-12501i200101-200112

main04438-12502i200209-200312

main04438-12580i200101-200201

main04438-12610i200209-200404

main04438-12640i200312-200404

main04438-12690i200209-200404

main04438-63010i200209-200312

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-52190i200404-200604

main04438-12450i200101-200104

main04438-12490i200101-200209

main04438-12570i200101-200209

main04438-12680i200209-200404

main04438-12870i200404-200609

main04438-32231i200104-200209

main04438-32240i200209-200312

main04438-42200i200212-200404

main04438-52030i200209-200312

main04438-52230i200404-200609

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-36006i200101-200209

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010i200101-200209

main41336-12060i200209-200404

main41336-20050i200209-200404

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-12010i200404-200609

main41336-12060i200209-200404

main41336-32020i200404-200609

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12070i200209-200404

main43030-12120i200201-200209

main43030-13010i200404-200609

main43030-20100i200404-200609

main43030-52010i200404-200609

main43040-02020i200209-200404

main43040-32040i200209-200404

main43403-02040i200101-200104

main43403-10011i200404-200609

main43403-12040i200209-200404

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90520-71002i200201-200209

main90521-79001i200101-200201

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-02020i200209-200404

main43040-12090i200209-200404

main43040-13010i200404-200609

main43040-20070i200209-200404

main43040-32040i200404-200609

main43403-02040i200101-200104

main43403-10011i200104-200209

main43403-12040i200209-200404

43040BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)

main90520-71002i200209-200404

main90521-79001i200404-200609

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20010i200101-200209

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main96153-00680i200209-200404

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02180i200101-200104

main43410-02220i200404-200609

main43410-12490i200404-200609

main43410-12500i200101-200209

main43410-12501i200312-200404

main43410-12510i200101-200209

main43410-12531i200404-200609

main43410-12660i200209-200404

main43410-12670i200209-200404

main43410-12700i200201-200209

main43410-13060i200404-200609

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36004i200101-200209

main90363-36006i200209-200404

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003i200404-200609

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023i200404-200507

main90311-34031i200507-200609

main90311-35019i200209-200404

main90311-35045i200404-200502

main90311-35051i200101-200209

main90311-35055i200502-200609

main90311-35057i200509-200609

main90316-28003i200209-200404

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008i200404-200609

main90521-26004i200209-200404

main90521-27005i200404-200609

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-13010i200404-200609

main90520-22001i200101-200209

main90520-22005i200101-200209

main90520-23056i200209-200404

main90520-25034i200209-200404

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-13010i200404-200609

main90520-22001i200404-200609

main90520-22005i200404-200609

main90520-23056i200201-200209

main90520-25034i200209-200404

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-02240i200209-200404

main43420-12420i200104-200209

main43420-12440i200404-200609

main43420-12450i200209-200404

main43420-12460i200101-200201

main43420-12580i200101-200209

main43420-12590i200209-200404

main43420-12630i200201-200209

main43420-13040i200404-200609

main43420-20581i200209-200404

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-26004i200209-200404

main90521-27005i200101-200209

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-34022i200209-200404

main90311-34030i200507-200609

main90311-35019i200209-200404

main90311-35044i200404-200509

main90311-35046i200404-200501

main90311-35054i200502-200609

main90311-35058i200509-200609

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150i200209-200404

main42345-52110i200101-200209

main90949-01A65i200404-200609

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12080i200209-200404

main42345-12140i200209-200404

main42345-52100i200101-200209

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12150i200104-200209

main42345-52110i200209-200404

main90949-01A65i200101-200209

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12080i200209-200404

main42345-12140×2i200101-200104

main42345-52100i200209-200404

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078i200101-200209

main90949-01108i200101-200209

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160i200101-200209

main42346-22010i200404-200609

main90949-01146i200209-200404

main90949-01802i200404-200609

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12160i200101-200104

main90949-01078×2i200101-200202

main90949-01108i200101-200209

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12160i200209-200404

main42346-22010i200101-200209

main90949-01146i200209-200404

main90949-01802i200404-200609

43457BRACKET, DRIVE SHAFT BEARING

main43457-20080i200101-200209

main43457-32070i200101-200209

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2i200209-200404

main90119-10952i200507-200609

main90901-19060i200209-200404

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002i200101-200209

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3i200101-200209

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011i200101-200209

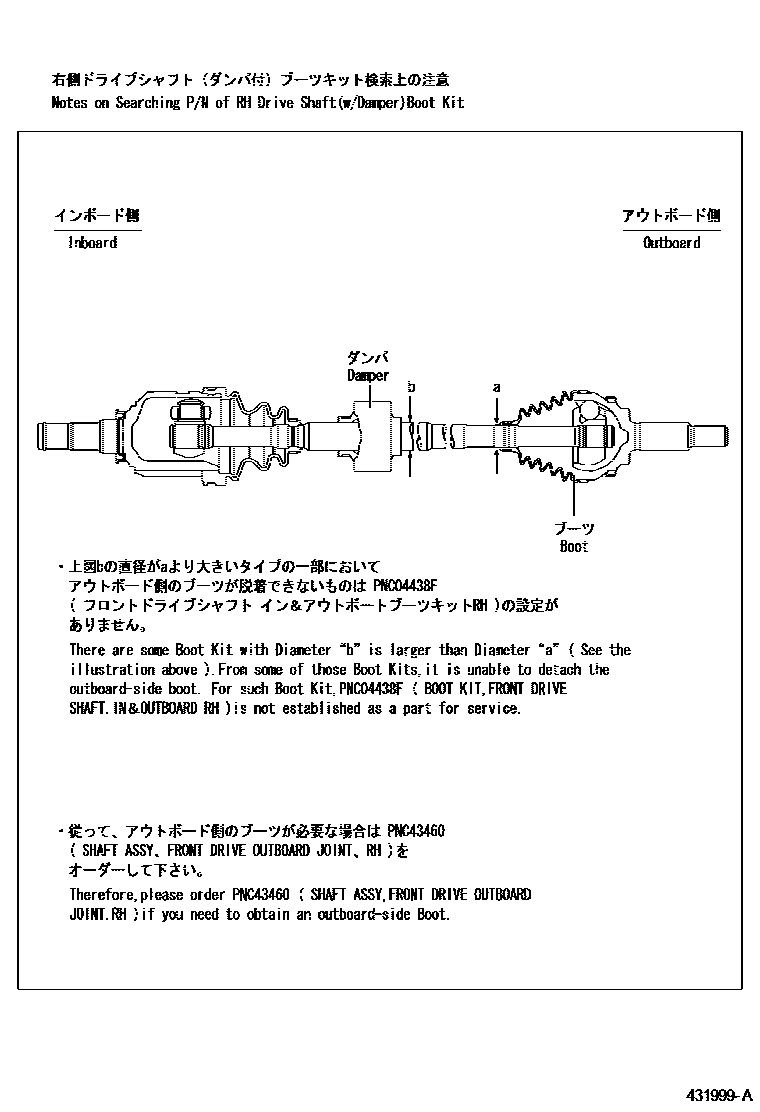

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09440i200101-200104

main43460-09470i200209-200404

main43460-19795i200209-200404

main43460-19805i200209-200312

main43460-19835i200101-200201

main43460-39126i200209-200312

main43460-80001i200104-200209

main43460-80004i200209-200404

main43460-80011i200201-200209

main43460-80024i200312-200404

main43460-80028i200312-200404

main43460-80040i200404-200609

main43460-80043i200404-200609

main43460-80045i200404-200609

main43460-80046i200404-200609

main43460-80047i200404-200609

main43460-80052i200404-200609

main43470-80007i200209-200404

main43470-80046i200312-200404

main43470-80106i200404-200609

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-09670i200312-200404

main43470-09700i200312-200404

main43470-29655i200209-200312

main43470-80003i200101-200209

main43470-80004i200404-200510

main43470-80007i200101-200209

main43470-80008i200209-200312

main43470-80015i200312-200404

main43470-80018i200312-200404

main43470-80027i200201-200209

main43470-80047i200312-200404

main43470-80095i200510-200609

main43470-80096i200404-200609

main43470-80097i200404-200609

main43470-80114i200404-200609

main43470-80118i200510-200609

main43470-80165i200404-200609

43474DAMPER, DRIVE SHAFT

main43474-12040i200101-200104

main43474-12120i200404-200609

main43474-12130i200404-200609

main43474-13030i200312-200404

main43474-52030i200209-200404

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010i200404-200406
