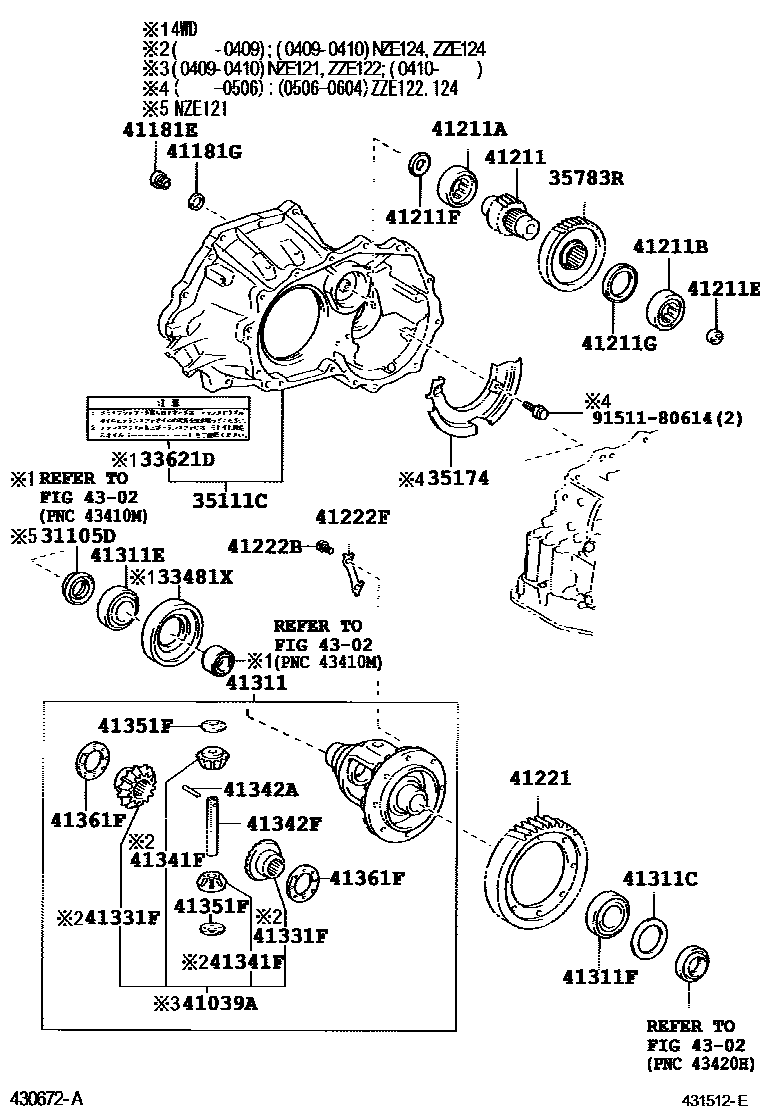

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481XGEAR, SPEEDOMETER DRIVE
33621DLABEL, TRANSAXLE OIL INFORMATION
35111CHOUSING, TRANSAXLE
35174SEPARATOR, TRANSAXLE HOUSING OIL
35783RGEAR, COUNTER DRIVEN
41039AGEAR KIT, DIFFERENTIAL
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)
41211FBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH)
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302FRONT DRIVE SHAFT
9151180614
main91511-80614
31 parts on this diagram · 3 diagrams in section
