IGNITION COIL & SPARK PLUG / GLOW PLUG

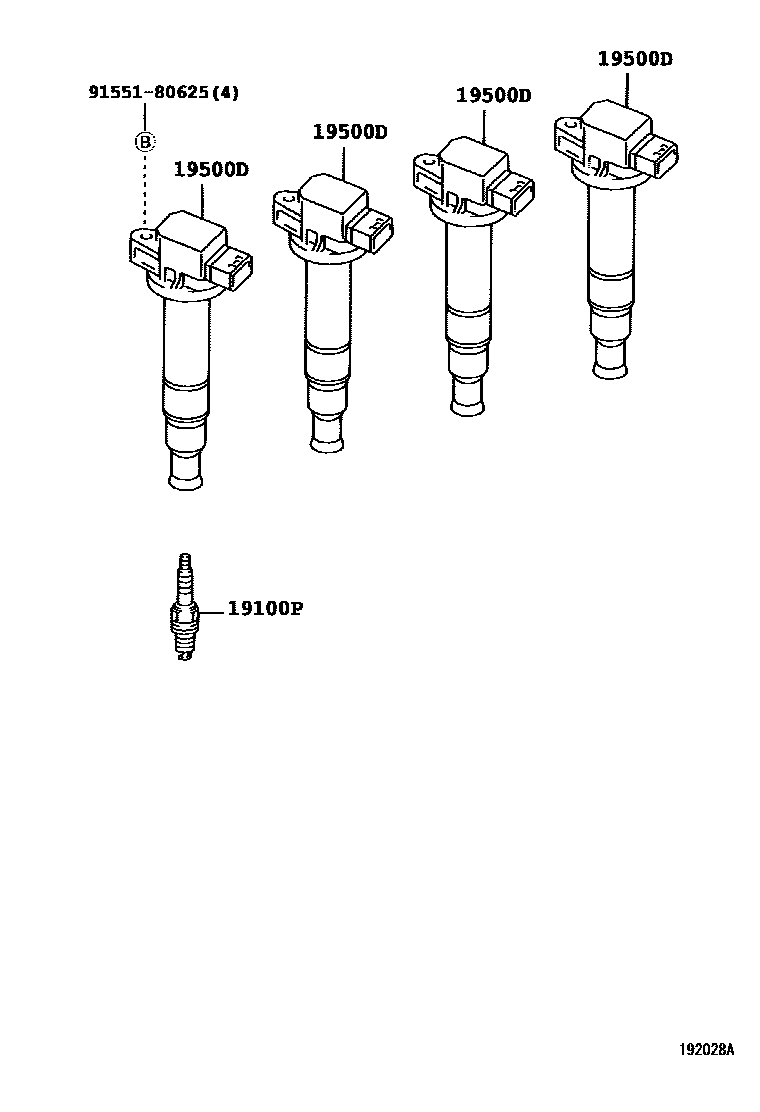

Parts diagram
19100PPLUG, SPARK
main90919-01164i200101-200609
main90919-01210i200101-200301
main90919-01211i200101-200301
main90919-01237i200301-200609
sub90919-01210
main90919-01247i200404-200609
19500COIL ASSY, IGNITION
main90080-19015i200502-200609
sub90919-02262
main90080-19019i200502-200609
sub90919-W2001
main90919-02238i200101-200609
main90919-02239i200502-200609
sub90919-02262
main90919-02239i200209-200502
sub90919-02262
main90919-T2002i200502-200609
sub90919-T2006
19500DCOIL, IGNITION, NO.1
main90919-02240i200101-200609
main90919-02248i200404-200609
sub90919-02260
9155180625
main91551-80625

4 parts on this diagram · 3 diagrams in section
