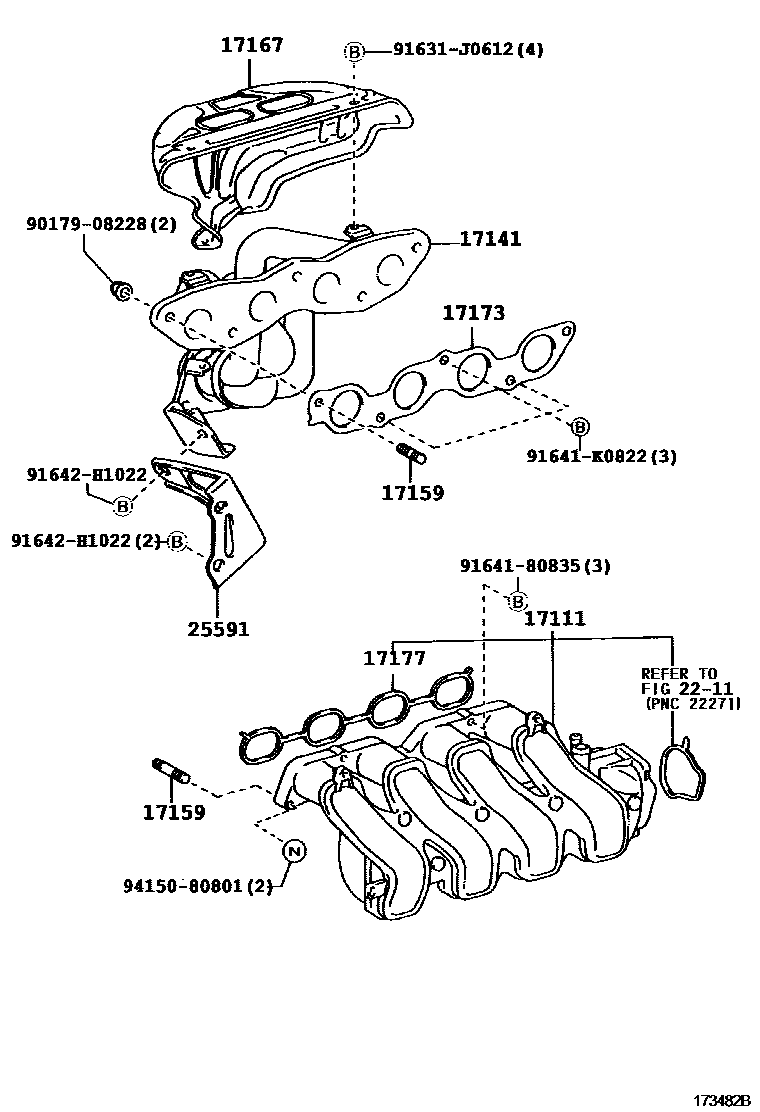

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17111MANIFOLD, INTAKE

main17101-21050i1NZFE..NZE12#200101-200609

main17101-21070i1NZFE..NZE121200404-200609

sub17101-21071

sub90339-03017

main17111-88600i2ZZGE..ZZE123200101-200105

sub17111-88601

sub90105-08234

main17111-88601i2ZZGE..ZZE123200105-200609

main17120-22030i1ZZFE..ZZE122,124200209-200609

17141MANIFOLD, EXHAUST

main17104-21020i1NZFE..NZE121200404-200609

main17104-22100i1ZZFE..ZZE122200209-200609

main17104-22110i1ZZFE..ZZE124200209-200609

main17141-21050i1NZFE..NZE121200101-200209

main17141-21070i1NZFE..NZE124200101-200209

main17141-21090i1NZFE..NZE121200209-200404

main17141-88600i2ZZGE..ZZE123200101-200303

sub17141-88H00

main17141-88601i2ZZGE..ZZE123200303-200609

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10169i2ZZGE..ZZE123200101-200609

main90126-08026i1NZFE..NZE12#200101-200609

main90126-08026i1NZFE..NZE12#200209-200609

main90126-08037i1NZFE..NZE12#200101-200609

main90126-08043i1ZZFE..ZZE122,124200209-200609

main92122-80822i2ZZGE..ZZE123200101-200609

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21030i1NZFE..NZE121200101-200209

main17167-21040i1NZFE..NZE124200101-200209

main17167-21060i1NZFE..NZE121200209-200404

main17167-21070i1NZFE..NZE124200209-200609

main17167-21080i1NZFE..NZE121200404-200609

main17167-22080i1ZZFE..ZZE122200209-200609

main17167-22090i1ZZFE..ZZE124200209-200609

main17167-22110i2ZZGE..ZZE123200302-200609

main17167-88602i2ZZGE..ZZE123200101-200302

sub17167-22110

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE..NZE12#200101-200609

main17173-21030i1NZFE..NZE121200404-200609

main17173-22010i1ZZFE..ZZE122,124200209-200609

main17173-88600i2ZZGE..ZZE123200101-200303

main17173-88601i2ZZGE..ZZE123200303-200609

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-22030i1ZZFE..ZZE122,124200209-200609

main17177-21020i1NZFE..NZE12#200101-200609

sub17177-21030

main17177-21030i1NZFE..NZE121200404-200609

main17177-22010i2ZZGE..ZZE123200306-200609

main17177-88600i2ZZGE..ZZE123200101-200306

sub17177-22010

2211

25591BRACKET, MANIFOLD SUPPORT

main25591-21020i1NZFE..NZE121200101-200609

main25591-21030i1NZFE..NZE124200101-200609

9017908228

main90179-08228

91631J0612

main91631-J0612

9164180835

main91641-80835

91641K0822

main91641-K0822

91642H1022

main91642-H1022

9415080801

main94150-80801

14 parts on this diagram · 7 diagrams in section
