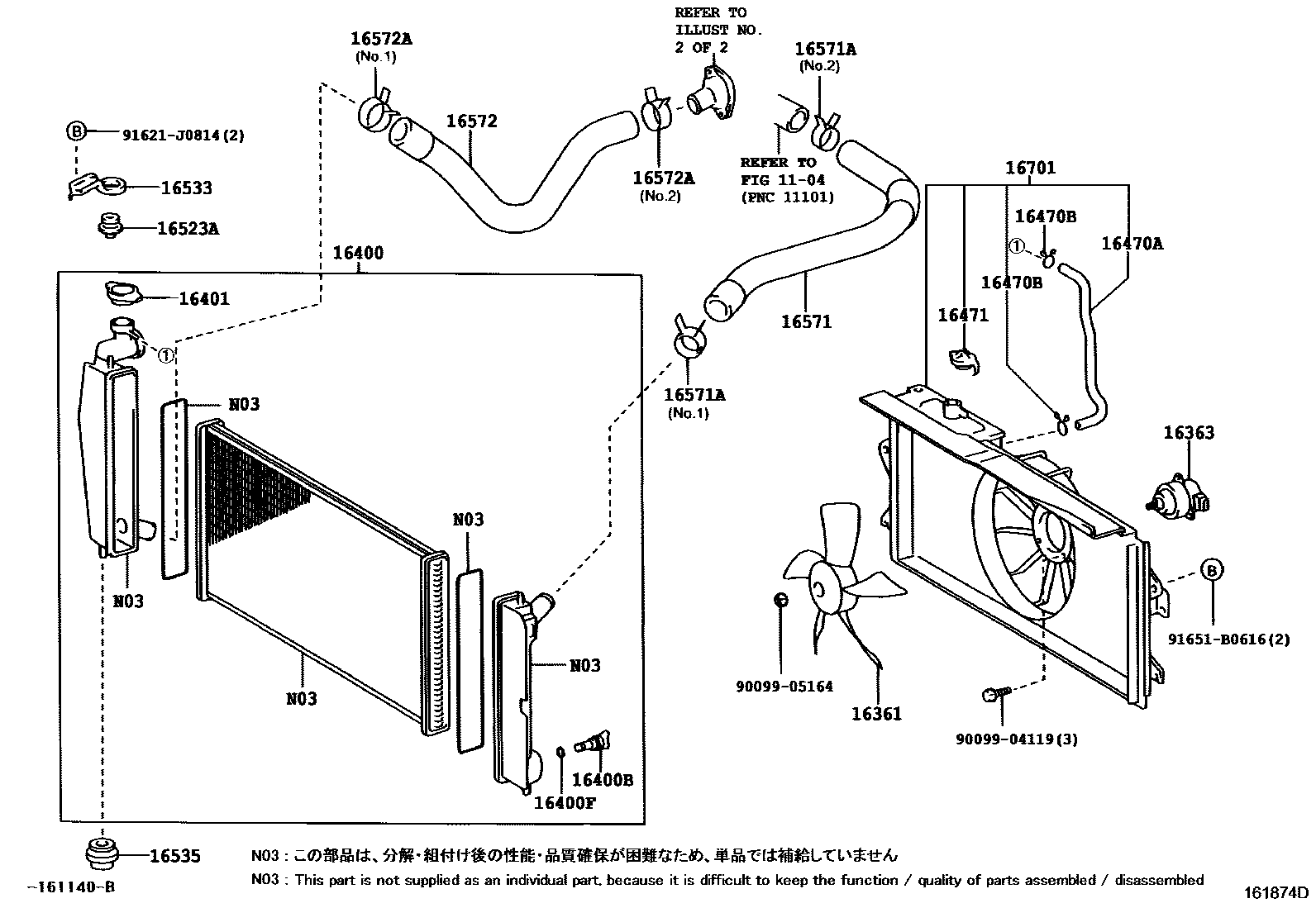

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

1104

16361FAN

main16361-21060i1NZFE..NZE12#200101-200609

main16361-21070i1ZZFE..ZZE124200209-200609

16363MOTOR, COOLING FAN

main16363-21050i1ZZFE..ZZE124200307-200609

sub16363-28160

main16363-23020i1ZZFE,2ZZGE..ZZE122,123200101-200305

main16363-23030i1ZZFE..ZZE124200209-200307

sub16363-28160

main16363-28150i1NZFE..NZE12#200305-200609

16400RADIATOR ASSY

main16400-21140i2ZZGE..ZZE123..6F200101-200609

sub16400-21130

main16400-21150i1ZZFE..ZZE122200209-200609

sub16400-21170

main16400-21160i1NZFE..NZE121200101-200609

sub16400-21180

main16400-21180i1NZFE..NZE124200101-200609

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1NZFE..NZE12#200101-200609

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NZE12#200101-200609

16401CAP SUB-ASSY, RADIATOR

main16401-72090i1ZZFE,2ZZGE..ZZE12#200101-200609

sub16401-20353

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21040i1NZFE..NZE12#200101-200609

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE..NZE12#200101-200609

16471CAP SUB-ASSY, RESERVE TANK

main16405-21030i1ZZFE,2ZZGE..ZZE12#200211-200609

main16471-23010i1NZFE..NZE12#200101-200211

16523ACUSHION, RADIATOR SUPPORT

main16523-21020i1ZZFE,2ZZGE..ZZE12#200101-200609

16533SUPPORT, RADIATOR, UPPER

main16533-21020i1NZFE..NZE12#200101-200609

16535SUPPORT, RADIATOR, LOWER

main16504-21010i1NZFE..NZE12#200101-200109

sub16535-21040

main16504-21020i2ZZGE..ZZE123..4FC200101-200109

sub16535-21050

main16535-21040i1NZFE..NZE12#200109-200609

main16535-21050i2ZZGE..ZZE123..4FC200109-200609

main90480-40016i2ZZGE..ZZE123..6F200101-200609

16571HOSE, RADIATOR, INLET

main16571-21030i1NZFE..NZE12#200101-200609

main16571-21090i1NZFE..NZE121200404-200609

main16571-22070i1ZZFE,2ZZGE..ZZE123,124200101-200609

main16571-22150i1ZZFE..ZZE122200209-200509

main16571-22151i1ZZFE..ZZE122200509-200609

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1NZFE..NZE12#200101-200604

main90467-34004i2ZZGE..ZZE123200101-200605

main90467-37005i1ZZFE,2ZZGE..ZZE12#200101-200605

main96136-43901i1NZFE..NZE12#200605-200609

main96136-44301i1ZZFE,2ZZGE..ZZE12#200605-200609

main96136-44301i1NZFE..NZE12#200605-200609

16572HOSE, RADIATOR, OUTLET

main16572-21030i1NZFE..NZE12#200101-200609

main16572-22070i1ZZFE..ZZE124200209-200609

main16572-22080i2ZZGE..ZZE123200101-200609

main16572-22110i1ZZFE..ZZE122200209-200609

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1NZFE..NZE12#200101-200604

main90466-35001i1NZFE..NZE12#200101-200604

main90466-37002i2ZZGE..ZZE123200101-200604

main90467-34004i1NZFE..NZE12#200101-200605

main96136-43901i1ZZFE,2ZZGE..ZZE12#200605-200609

main96136-44301i1NZFE..NZE12#200605-200609

16701SHROUD SUB-ASSY, FAN

main16711-21080i1ZZFE,2ZZGE..ZZE12#200101-200609

9009904119

main90099-04119

9009905164

main90099-05164

91621J0814

main91621-J0814

91651B0616

main91651-B0616

22 parts on this diagram · 7 diagrams in section
