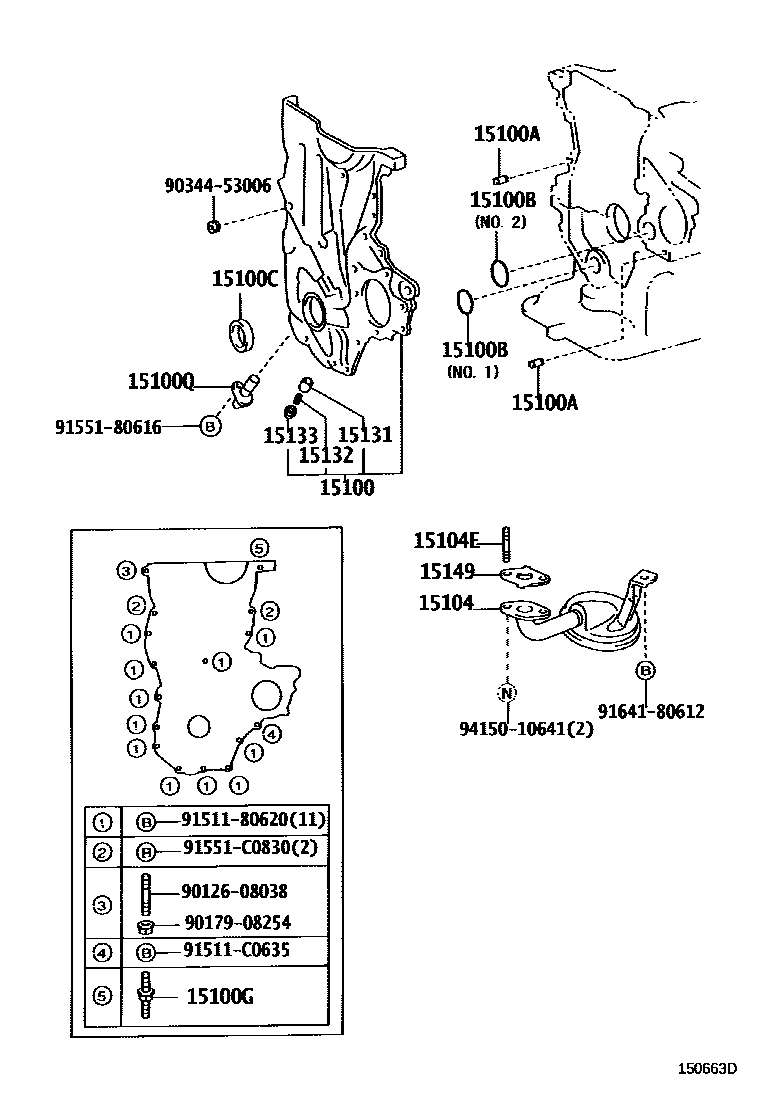

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-21040i1NZFE..NZE12#200101-200609

sub15100-21042

main15100-21060i1NZFE..NZE121200404-200609

main15100-22041i1ZZFE..ZZE122,124200209-200609

main15100-88600i2ZZGE..ZZE123200101-200609

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NZE12#200101-200609

main90253-09003i2ZZGE..ZZE123200101-200609

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE..NZE12#200101-200609

sub12151-21010

main90301-42006i1NZFE..NZE12#200101-200609

sub11497-21010

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NZE12#200101-200609

sub90311-25032

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NZE12#200101-200609

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NZE12#200101-200609

sub90919-05081

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE..NZE12#200101-200609

sub15104-21022

main15104-22023i1ZZFE..ZZE122,124200209-200609

main15104-88600i2ZZGE..ZZE123200209-200609

main15104-88601i2ZZGE..ZZE123200101-200608

sub15104-88600

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE..NZE12#200101-200609

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NZE12#200101-200609

main15131-24010i1ZZFE..ZZE122,124200209-200609

main15131-46040i2ZZGE..ZZE123200101-200404

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NZE124200101-200609

main15132-21060i1NZFE..NZE121200404-200609

main15132-22040i1ZZFE..ZZE122,124200209-200609

main15132-46020i2ZZGE..ZZE123200101-200404

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2ZZGE..ZZE123200101-200404

main15133-20010i1ZZFE..ZZE122,124200209-200609

main15133-21020i1NZFE..NZE12#200101-200405

main15133-21030i1NZFE..NZE12#200405-200609

15149GASKET, OIL STRAINER FLANGE

main15149-22010i1ZZFE..ZZE122,124200209-200609

main15149-88600i2ZZGE..ZZE123200101-200609

main16258-21010i1NZFE..NZE12#200101-200302

sub16258-21030

main16258-21030i1NZFE..NZE12#200302-200609

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180620

main91511-80620

91511C0635

main91511-C0635

9155180616

main91551-80616

91551C0830

main91551-C0830

9164180612

main91641-80612

9415010641

main94150-10641

21 parts on this diagram · 3 diagrams in section
