VENTILATION HOSE

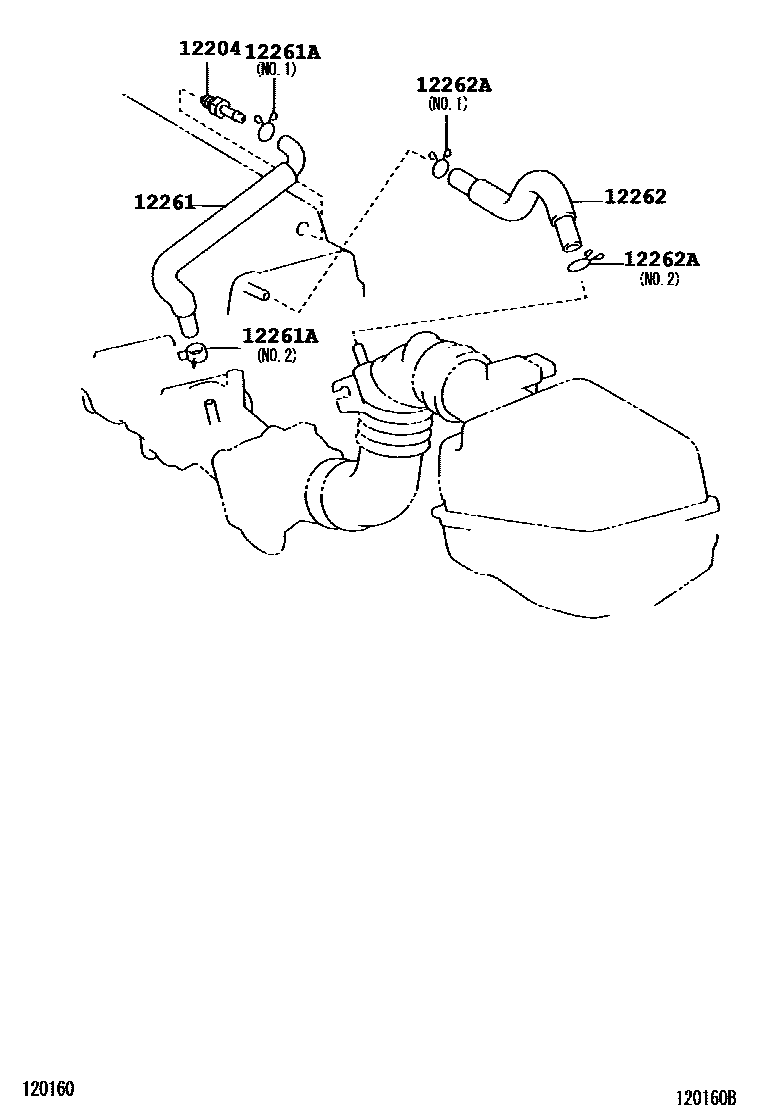

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-21010i200101-200401
sub12204-21011
main12204-21011i200401-200609
main12204-21020i200404-200609
main12204-22050i200209-200404
sub12204-22051
main12204-22051i200404-200609
main12204-88600i200101-200609
12261HOSE, VENTILATION
main12261-0D040i200404-200609
main12261-21050i200101-200609
main12261-21060i200404-200609
main12261-22050i200209-200404
main12261-22050i200404-200609
main12261-88601i200101-200609
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-24001i200101-200609
main90467-13057i200101-200609
main90467-14037i200101-200609
main90467-15120i200404-200609
main90467-17011i200101-200204
sub96134-51700
main90467-21152i200209-200609
main90467-24038i200404-200609
main96134-51700i200204-200609
12262HOSE, VENTILATION, NO.2
main12262-0D050i200404-200609
main12262-21060i200101-200609
main12262-21071i200404-200609
main12262-22040i200209-200404
main12262-22040i200404-200609
main12262-22090i200305-200609
main12262-88602i200101-200305
sub12262-22090
12262ACLIP(FOR VENTILATION HOSE NO.2)
main16581-21050i200408-200609
main90466-18002i200404-200609
main90467-13103i200209-200609
main90467-19003i200209-200404
main90467-19019i200101-200609
main90467-21004i200404-200609
main90467-21004i200101-200404
main90467-21004i200404-200408
main90467-21010i200101-200609
main96132-51300i200101-200609

5 parts on this diagram · 3 diagrams in section
