STANDARD TOOL

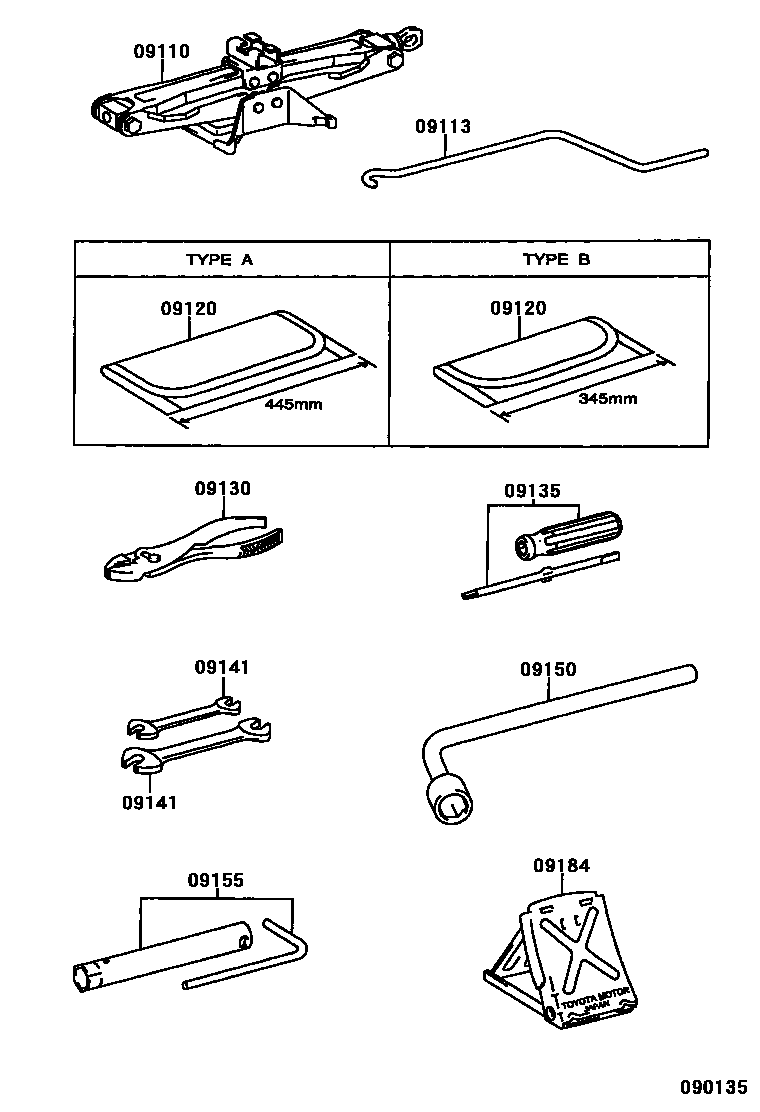

Parts diagram

09110JACK ASSY

main09111-02020i200101-200609

09113HANDLE, JACK

main09113-20040i200101-200609

09120BAG, TOOL

main09120-10040i200101-200609

main09120-16030i200101-200404

09130PLIERS

main99913-11500i200101-200609

09135DRIVER, SCREW

main99915-10700i200101-200609

09141SPANNER

main99914-10810i200101-200609

main99914-11214i200101-200609

09150WRENCH, HUB NUT BOX

main09150-35070i200101-200609

09155WRENCH, SPARK PLUG

main09155-74010i200101-200409

09184STOPPER, WHEEL

main09184-00010i200101-200609

9 parts on this diagram · 1 diagram in section
