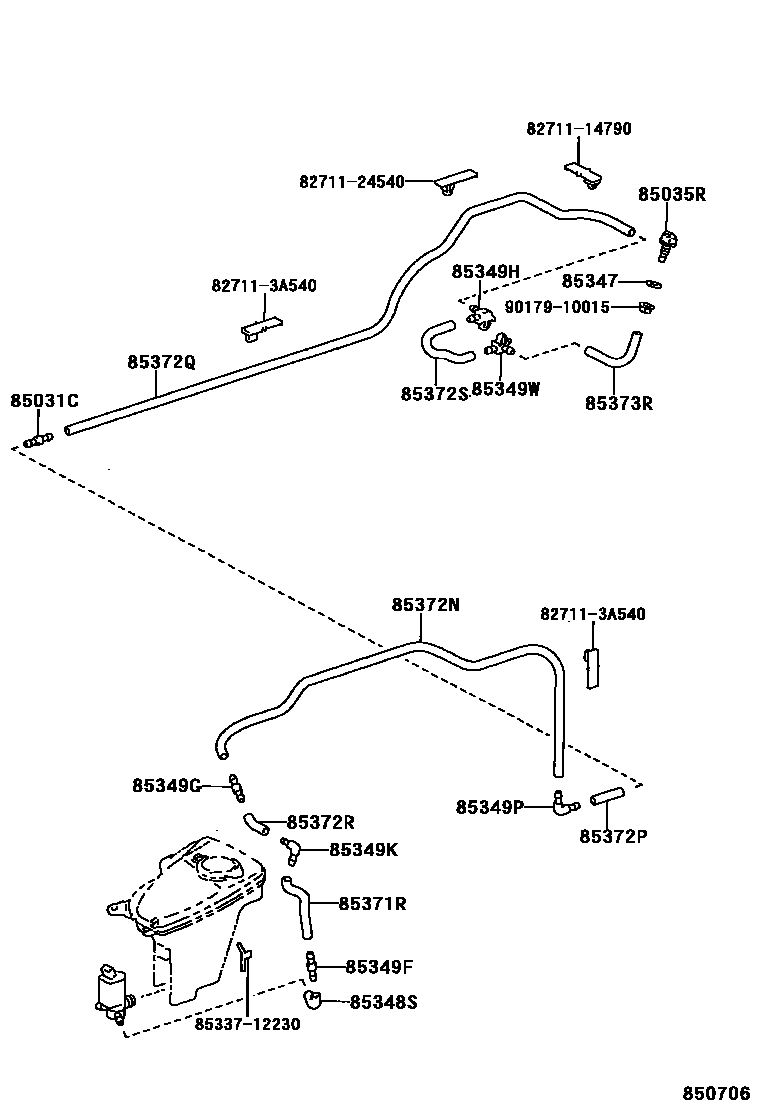

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iAE11#199505-199511

sub85375-12520

main85375-12520iAE11#199511-200008

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-12020iAE11#199505-200008

sub85391-22010

85347PACKING, REAR WASHER

main85347-12010iAE11#199505-200008

85348SJOINT, REAR WASHER ELBOW, NO.1

main85336-12230iAE11#199505-200008

85349FJOINT, REAR WASHER HOSE, NO.1

main85375-10260iAE11#199505-200008

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-89122iAE11#199505-200008

85349HJOINT, REAR WASHER HOSE, NO.3

main85376-10250iAE11#199505-200008

85349KJOINT, REAR WASHER ELBOW, NO.2

main85317-12230iAE11#199505-200008

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iAE11#199505-200008

85349WJOINT, REAR WASHER ELBOW, NO.4

main85377-32220iAE11#199505-200008

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iAE11#199505-200008

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iAE11#199505-200008

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iAE11#199505-200008

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-59150iAE11#199505-200008

sub90099-33589

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iAE11#199505-200008

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iAE11#199505-200008

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAE11#199505-200008

8271114790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14790

8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24540

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8533712230CASE, LEVEL WARNING SWITCH

main85337-12230

9017910015

main90179-10015

22 parts on this diagram · 1 diagram in section
