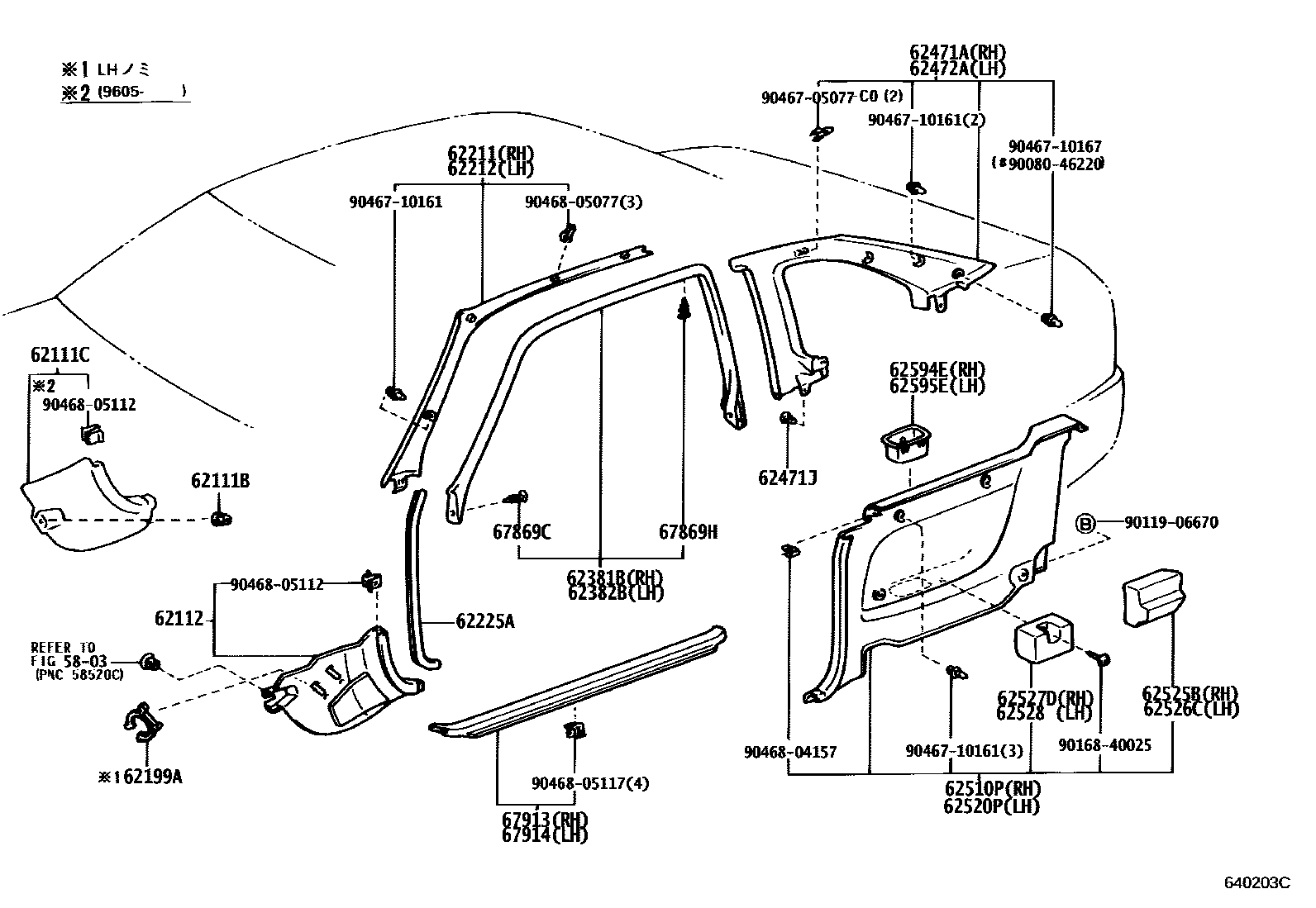

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5803
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
SHADOW GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
SHADOW GRAY,TRIM1#
62199AHOLDER, FUSEE
62211GARNISH, FRONT PILLAR, RH
SHADOW GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
SHADOW GRAY,TRIM1#
62225AGARNISH, FRONT PILLAR, LOWER RH
SHADOW GRAY,TRIM1#
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62471AGARNISH, ROOF SIDE, INNER RH
SHADOW GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
SHADOW GRAY,TRIM1#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
SHADOW GRAY,TRIM1#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
SHADOW GRAY,TRIM1#
62525BPAD, QUARTER TRIM, UPPER RH
62526CPAD, QUARTER TRIM, UPPER LH
62527DPAD, QUARTER TRIM, LOWER RH
62528PAD, QUARTER TRIM, LOWER LH
62594EPOCKET, QUARTER TRIM, RH
SHADOW GRAY,TRIM1#
62595EPOCKET, QUARTER TRIM, LH
SHADOW GRAY,TRIM1#
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP
67913PLATE, FRONT DOOR SCUFF, RH
SHADOW GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
SHADOW GRAY,TRIM1#
9008046220
main90080-46220
9011906670
main90119-06670
9016840025
main90168-40025
9046705077
main90467-05077
9046710161
main90467-10161
9046710167
main90467-10167
9046804157
main90468-04157
9046805077
main90468-05077
9046805112
main90468-05112
9046805117
main90468-05117
35 parts on this diagram · 1 diagram in section
