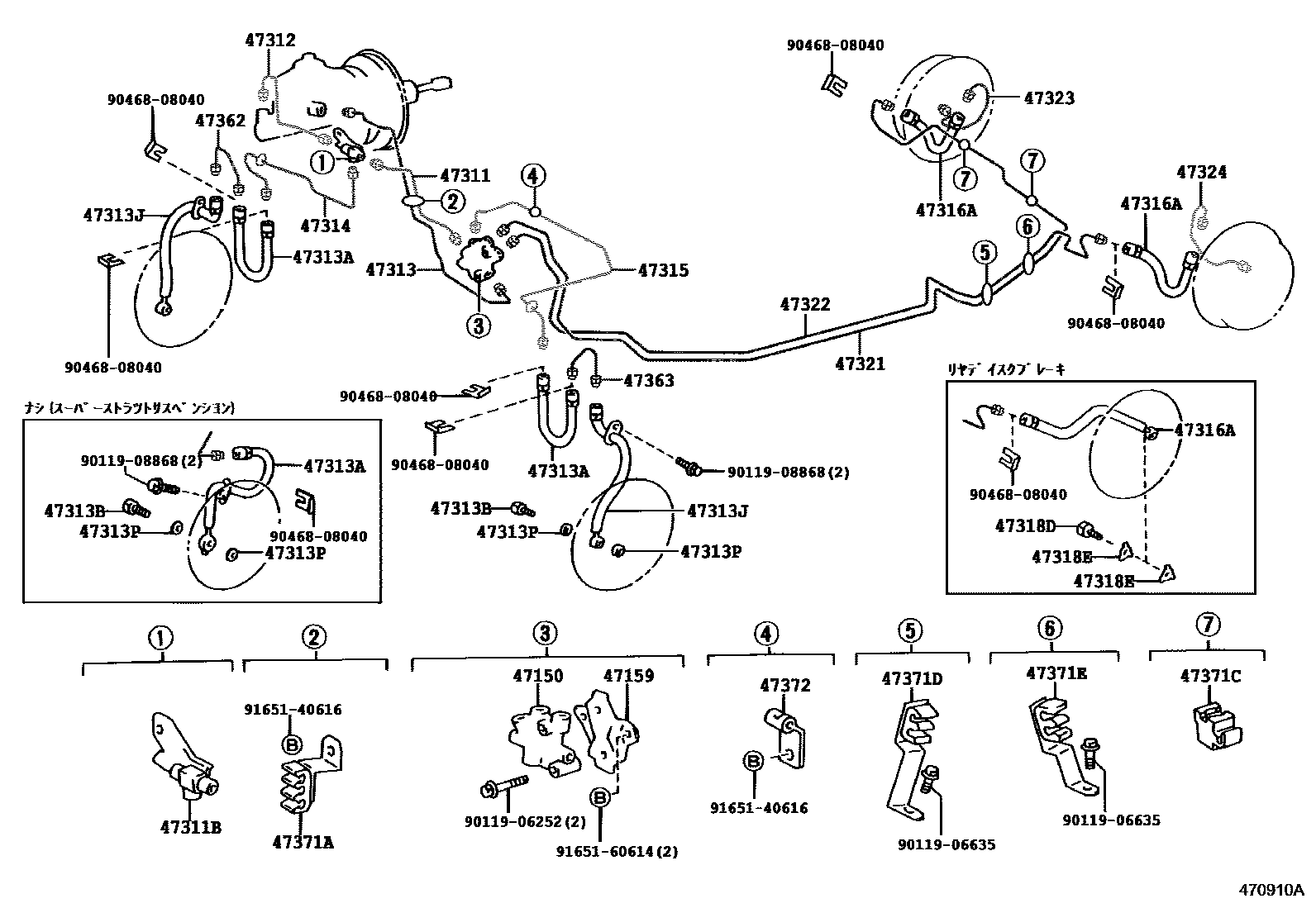

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1��(ABS) 0004 1��(ABS) 0005 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12060iAE11#..FZ,XZ199505-199605

main47150-12080iAE111..BZG; AE111..BZV199505-199605

main47150-12130iAE111..BZG; AE111..BZV199505-199605

main47150-12160iAE11#..FZ,XZ199505-199605

main47150-16040iAE111..BZG199505-199605

main47150-16060iAE11#..FZ,XZ199704-200008

main47150-20250iAE111..BZG,BZR,BZV199704-200008

47159BRACKET, PROPORTIONING VALVE

main47159-12070iAE11#199505-199704

47311TUBE, FRONT BRAKE, NO.1

main47311-12560iAE11#199505-199605

main47311-12570iAE11#199505-199605

main47311-12580iAE11#199605-199704

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-12010iAE11#199505-199605

main90412-10116iAE11#199505-199605

47312TUBE, FRONT BRAKE, NO.2

main47312-12330iAE11#199505-199605

47313TUBE, FRONT BRAKE, NO.3

main47313-12370iAE11#199505-199605

main47313-12380iAE11#199505-199605

main47313-12390iAE11#199605-199704

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02798iAE11#..BZG,FZ,XZ199505-199704

main90947-02799iAE11#..BZG,FZ,XZ199505-199704

main90947-02806×2iAE111..BZG; AE111..BZV199505-199704

main90947-02910iAE11#..BZG,FZ,XZ199704-200008

main90947-02913iAE11#..BZG,FZ,XZ199704-200008

main90947-02918×2iAE111..BZR,BZV199704-200008

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAE11#..BZG,FZ,XZ199704-199908

main90401-10045×2iAE111..BZG,BZV199505-199704

main90401-10058×2iAE11#..BZG,FZ,XZ199908-200008

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02807iAE111..BZG,BZV199505-199704

main90947-02808iAE111..BZG,BZV199505-199704

main90947-02919iAE111..BZR,BZV199704-200008

main90947-02920iAE111..BZR,BZV199704-200008

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAE11#..BZG,FZ,XZ199908-200008

main90430-10074×4iAE11#199704-199908

47314TUBE, FRONT BRAKE, NO.4

main47314-12290iAE11#..BZG,FZ,XZ199505-199704

main47314-12380iAE111..BZG; AE111..BZV199505-199704

47315TUBE, FRONT BRAKE, NO.5

main47315-12450iAE11#..BZG,FZ,XZ199704-200008

main47315-12460iAE11#..BZG,FZ,XZ199505-199605

main47315-12470iAE111..BZV199605-199704

main47315-12500iAE111..BZG; AE111..BZV199505-199605

47316TUBE, FRONT BRAKE, NO.6

main47316-12250iAE11#199505-199605

main47316-12270iAE11#199605-199704

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02740×2iAE111..BZG,BZV199505-199704

main90947-02783×2iAE11#..FZ,XZ199505-199704

main90947-02921×2iAE11#..FZ,XZ199704-200008

main90947-02922×2iAE111..BZG,BZR,BZV199704-199910

main90947-02C41×2iAE111..BZG,BZR,BZV199910-200008

47318TUBE, FRONT BRAKE, NO.8

main47318-12270iAE11#199505-199605

main47318-12280iAE11#199605-199704

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iAE111..BZG,BZV199505-199704

main90401-10058×2iAE111..BZG,BZR,BZV199908-200008

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAE111..BZG,BZR,BZV199908-200008

main90430-10074×4iAE111..BZG,BZV199505-199704

47321TUBE, REAR BRAKE, NO.1

main47321-12130iAE11#199505-199704

47322TUBE, REAR BRAKE, NO.2

main47322-12280iAE11#199505-199704

47323TUBE, REAR BRAKE, NO.3

main47323-12250iAE11#..FZ,XZ199505-199704

47324TUBE, REAR BRAKE, NO.4

main47324-12210iAE11#..FZ,XZ199505-199704

47362TUBE, FRONT BRAKE, NO.11

main47362-12010iAE111..BZG,BZV199505-199704

47363TUBE, FRONT BRAKE, NO.12

main47363-12010iAE111..BZG,BZV199505-199704

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12090iAE11#199704-200008

main47371-12100iAE11#199505-199605

47371CCLAMP, BRAKE TUBE, NO.7

main47371-12150×2iAE11#199505-199704

main90949-01B45×2iAE11#199811-200008

47371DCLAMP, BRAKE TUBE, NO.8

main47375-12040iAE11#199505-199704

47371ECLAMP, BRAKE TUBE, NO.9

main47375-12060iAE11#199505-199704

47372CLAMP, BRAKE TUBE, NO.2

main47372-12060iAE11#199605-199704

main90461-06119iAE11#199505-199605

9011906252

main90119-06252

9011906635

main90119-06635

9011908868

main90119-08868

9046808040

main90468-08040

9165140616

main91651-40616

9165160614

main91651-60614

34 parts on this diagram · 5 diagrams in section
