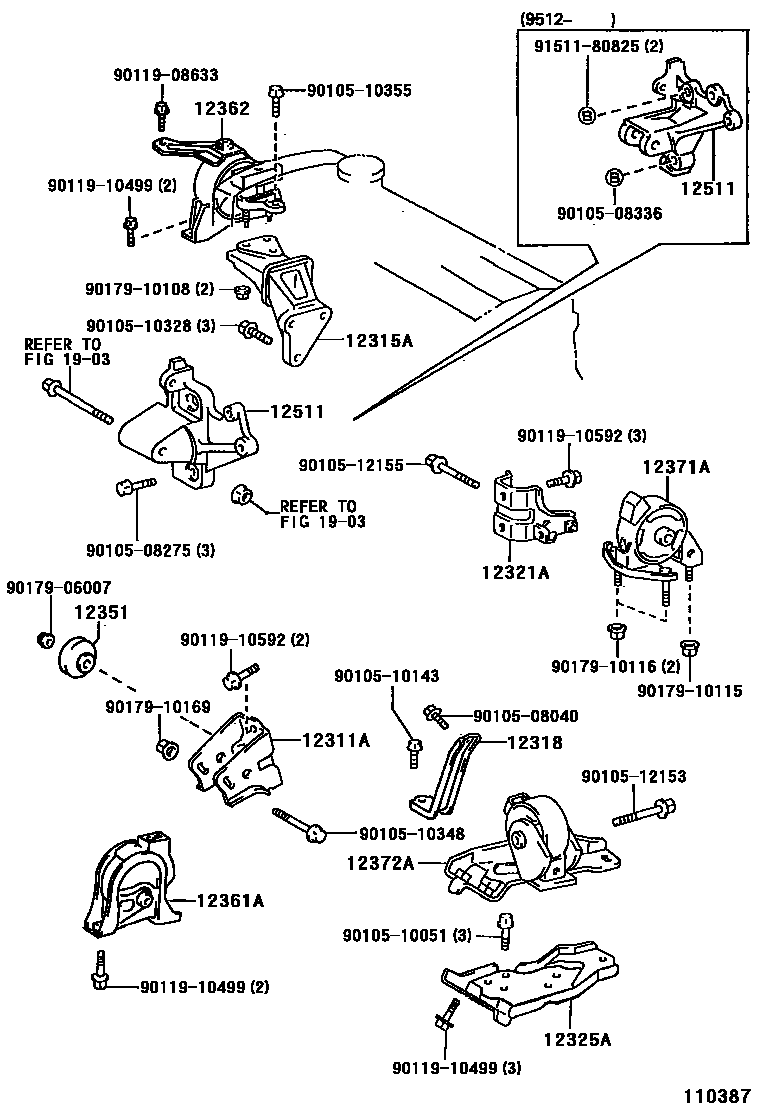

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-15130i4AFE,5AFE..AE11#199505-199704

main12311-16090i4AGE..AE111199505-199704

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15081i4AFE,5AFE..AE11#199505-199704

main12315-16070i4AGE..AE111199704-200008

12318STAY, ENGINE MOUNTING, LH

main12318-11050i4AGE..AE111..6F199704-200008

main12318-15050i4AFE,5AFE..AE11#..4FC199505-199704

main12318-15080i4AFE,5AFE..AE11#..5F199704-200008

main12318-16010i4AGE..AE111..5F199505-199704

main12318-16040i4AGE..AE111..4FC199505-199704

main12318-16110i4AFE,5AFE..AE11#..5F199505-199704

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-15120i4AFE,5AFE..AE11#..5F199505-199704

main12321-15140i4AFE,5AFE..AE11#..4FC199704-200008

main12321-16210i4AGE..AE111..5F199505-199704

main12321-16220i4AGE..AE111..4FC199505-199704

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-15080i4AFE,5AFE..AE11#..5F199704-200008

main12325-15100i4AFE..AE111..4FC199704-200008

main12325-15110i5AFE..AE110..4FC199704-200008

main12325-16120i4A#,5AFE..AE11#..5F199505-199704

main12325-16130i5AFE..AE110..4FC199505-199704

main12325-16170i4A#..AE111..4FC199505-199704

main12325-16270i4AGE..AE111..6F199704-200008

main12325-16280i4AGE..AE111..4FC199704-200008

12351DAMPER, ENGINE MOUNTING

main12351-15060i4A#,5AFE..AE11#199704-200008

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-15170i4A#,5AFE..AE11#..5F199505-199704

main12361-15171i4A#,5AFE..AE11#..MTM199801-200008

main12361-15180i4A#,5AFE..AE11#..4FC199505-199704

main12361-15181i4A#,5AFE..AE11#..4FC199801-200008

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-15040i4AFE,5AFE..AE11#199704-200008

main12305-16100i4AGE..AE111199505-199704

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-15240i4A#,5AFE..AE11#..5F199505-199612

main12371-15241i4A#,5AFE..AE11#..5F199612-199704

main12371-64210i4A#,5AFE..AE11#..4FC199704-200008

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15171i4AFE,5AFE..AE11#..5F199505-199704

main12372-15181i4AFE,5AFE..AE11#..4FC199505-199704

main12372-15200i4AFE,5AFE..AE11#..5F199704-200008

main12372-15220i4A#,5AFE..AE11#..4FC199704-200008

main12372-16210i4AGE..AE111..5F199505-199704

main12372-16230i4AGE..AE111..4FC199505-199704

main12372-16430i4AGE..AE111..6F199704-200008

12511BRACKET, ALTERNATOR, NO.1

main12511-15050i4AFE,5AFE..AE11#199505-199512

main12511-15060i4AFE,5AFE..AE11#199704-200008

main12511-16080i4AGE..AE111199505-199704

1903ALTERNATOR

→ Go to FIG 19-03

9010508040

main90105-08040

9010508275

main90105-08275

9010508336

main90105-08336

9010510051

main90105-10051

9010510143

main90105-10143

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010512153

main90105-12153

9010512155

main90105-12155

9011908633

main90119-08633

9011910499

main90119-10499

9011910592

main90119-10592

9017906007

main90179-06007

9017910108

main90179-10108

9017910115

main90179-10115

9017910116

main90179-10116

9017910169

main90179-10169

9151180825

main91511-80825

31 parts on this diagram · 5 diagrams in section
