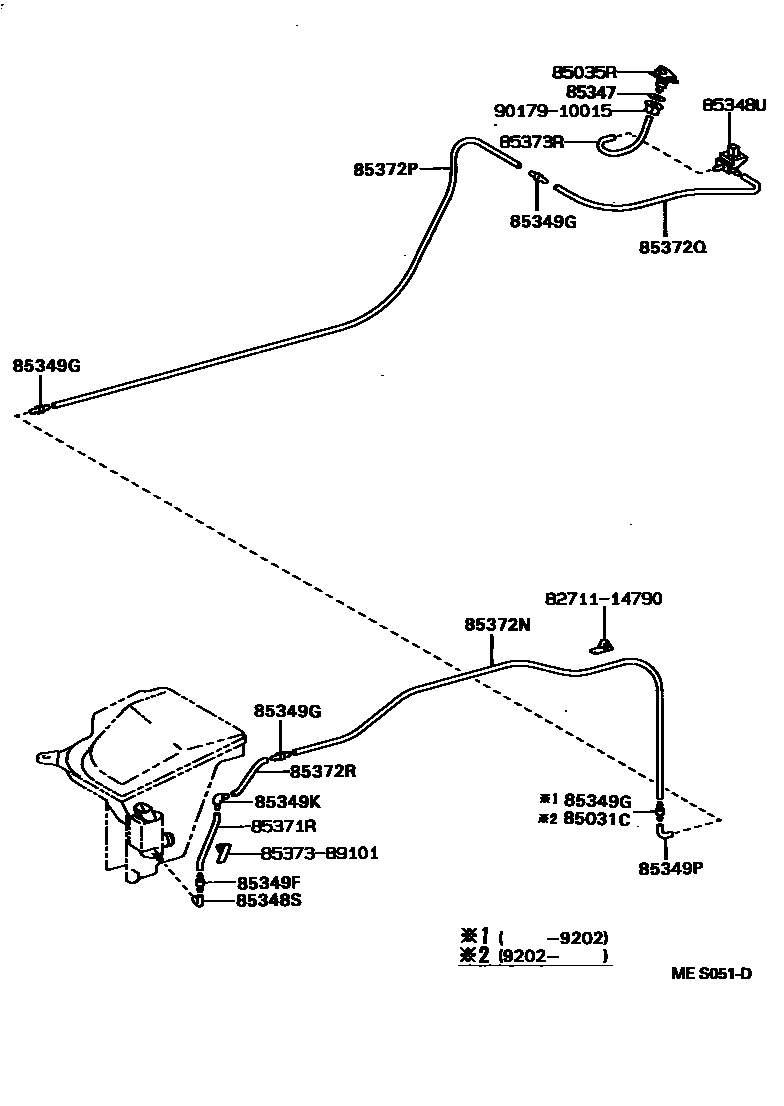

REAR WASHER

0001 1 0002 1

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199202-199512

sub85375-12520

main85375-12520iAE10#199512

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-12370iAE10#..HT..(4FC,5F)199303-199705

sub85391-22010

main85035-12370iAE101..CP199303-199505

sub85391-22010

main85035-12370iAE10#..F,X199612-199704

sub85391-22010

main85391-12010iAE10#..HT199205-199303

sub85035-12370

main85391-12010iAE101..CP199106-199303

sub85035-12370

main85391-22010iAE10#199704

sub85391-22060

85347PACKING, REAR WASHER

main85347-12010iAE10#..F,X199612-199704

main85347-12010iAE101..CP;AE101..6F199106

main85347-12010iAE10#..HT..(4FC,5F)199205

85348SJOINT, REAR WASHER ELBOW, NO.1

main85336-12230iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199106

85348UJOINT, REAR WASHER HOSE, NO.3

main85377-32220iAE101..CP199106-199505

85349FJOINT, REAR WASHER HOSE, NO.1

main85375-10260iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199106

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-89122iAE101199106-199505

main85349-89122iAE10#199505

85349KJOINT, REAR WASHER ELBOW, NO.2

main85317-12230iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199106

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-14481iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199106-199505

main85355-14481iAE10#199505-199605

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199106

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iAE101..CP;AE101..6F199106

main90446-07001iAE10#..HT..(4FC,5F)199205

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59045iAE101..CP199106-199505

sub90099-33589

main90446-07001iAE10#..HT199205-199308

main90446-07001iAE10#..HT199308-199505

main90446-07001iAE10#199505-199605

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iAE101..CP199106-199505

main90446-07013iAE10#199505-199605

main90446-07013iAE10#..HT199205-199505

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iAE10#..F,G,GT,GTAPX,GTZ,SJ,X199205

main90099-33299iAE101199106-199205

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85374-12010iAE101..CP199106-199505

main85375-12630iAE10#..HT..(4FC,5F)199205

main85375-12630iAE101..6F199704

8271114790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14790

8537389101HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-89101

9017910015

main90179-10015

18 parts on this diagram · 2 diagrams in section
