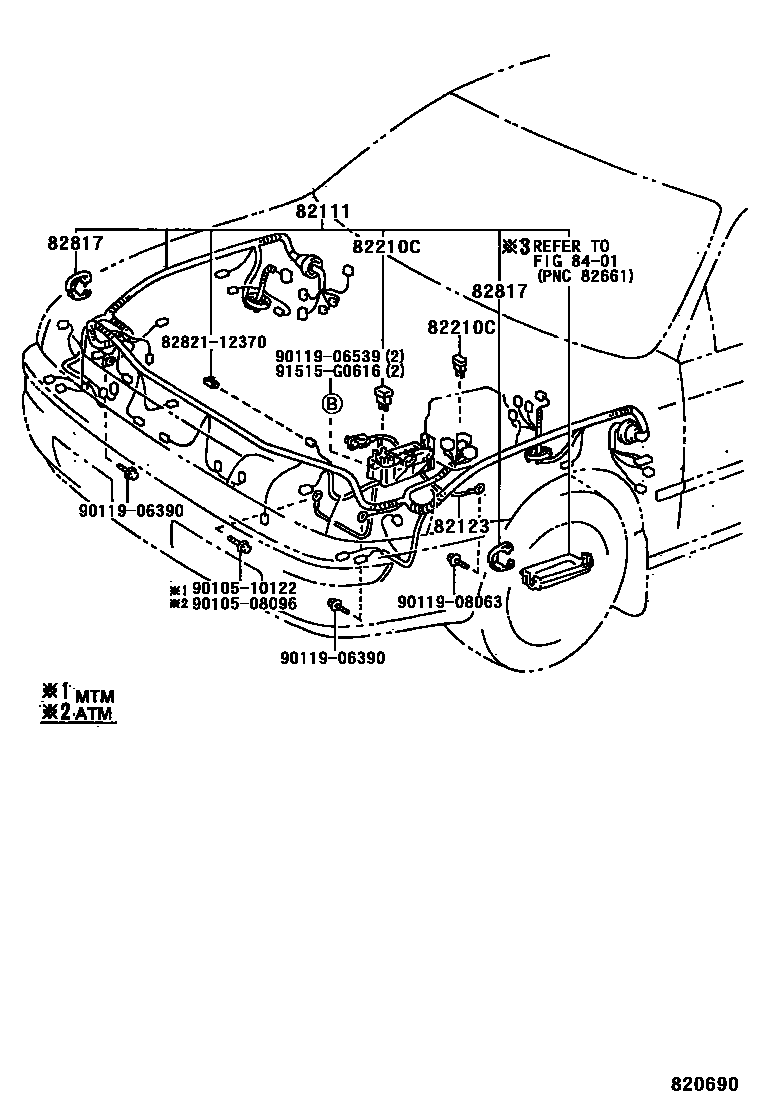

82111WIRE, ENGINE ROOM MAIN

main82111-1E130iAE10#199505-199605

main82111-1E131iAE10#199605-199704

main82111-1E330iAE10#..LVN..(GT,GTAPX,S,SJ)199106-199411

main82111-1E331iAE10#..LVN..(GT,GTAPX,S,SJ)199411-199505

main82111-1E340iAE10#..TRN..(GT,GTAPX,S,SJ)199106-199411

main82111-1E341iAE10#..TRN..(GT,GTAPX,S,SJ)199411-199505

main82111-1E350iAE101..LVN..GTAPX199106-199305

main82111-1E360iAE101..TRN..GTAPX199106-199305

main82111-1E370iAE10#..LVN..(GT,GTAPX,S,SJ); AE101..LVN..GTZ199106-199305

main82111-1E380iAE10#..TRN..(GT,GTAPX,S,SJ); AE101..TRN..GTZ199106-199305

main82111-1E390iAE101..LVN..GTAPX199106-199305

main82111-1E400iAE101..TRN..GTAPX199106-199305

main82111-1E450iAE101..CRE..X..5F199205-199411

main82111-1E451iAE10#..F,X199505-199605

main82111-1E460iAE10#..HT199405-199411

main82111-1E461iAE10#..HT199411-199605

main82111-1E480iAE10#..HT199205-199305

main82111-1E850iAE10#..HT199305-199309

main82111-1E851iAE10#..HT199309-199411

main82111-1E852iAE10#..HT199411-199505

main82111-1E860iAE10#..LVN..(GT,GTAPX,S,SJ)199305-199308

main82111-1E861iAE10#..LVN..(GT,GTAPX,S,SJ)199308-199411

main82111-1E862iAE10#..LVN..(GT,GTAPX,S,SJ)199411-199505

main82111-1E870iAE10#..TRN..(GT,GTAPX,S,SJ)199305-199308

main82111-1E871iAE10#..TRN..(GT,GTAPX,S,SJ)199308-199411

main82111-1E872iAE10#..TRN..(GT,GTAPX,S,SJ)199411-199505

main82111-1H010iAE101..LVN..GTAPX; AE101..LVN..GTZ199305-199308

main82111-1H011iAE101..LVN..GTAPX; AE101..LVN..GTZ199308-199411

main82111-1H012iAE101..LVN..GTAPX; AE101..LVN..GTZ199411-199505

main82111-1H020iAE101..TRN..GTAPX; AE101..TRN..GTZ199305-199308

main82111-1H021iAE101..TRN..GTAPX; AE101..TRN..GTZ199308-199411

main82111-1H022iAE101..TRN..GTAPX; AE101..TRN..GTZ199411-199505

main82111-1H170iAE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F199405-199411

main82111-1H171iAE101..G199505-199605

main82111-1K130iAE10#199704

82123WIRE, ENGINE, NO.3

main82123-12180iAE10#199106-199505

main82123-12200iAE10#199505-199704

main82123-12290iAE10#199704

82210CFUSIBLE LINK

main90982-08188×2iAE10#199106-199808

main90982-08203iAE101..(SJ,X)..4FC199106-199705

main90982-08228iAE101;AE100..LVN..5F;AE100..CRE,MRN,TRN199305-199808

main90982-08246iAE10#199106-199605

main90982-08257iAE101;AE100..LVN..5F;AE100..CRE,MRN,TRN199305-199808

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A090×2iAE10#199106-199411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8282112370RETAINER, HEADLAMP HARNESS

main82821-12370

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9011906539

main90119-06539

9011908063

main90119-08063

91515G0616

main91515-G0616
