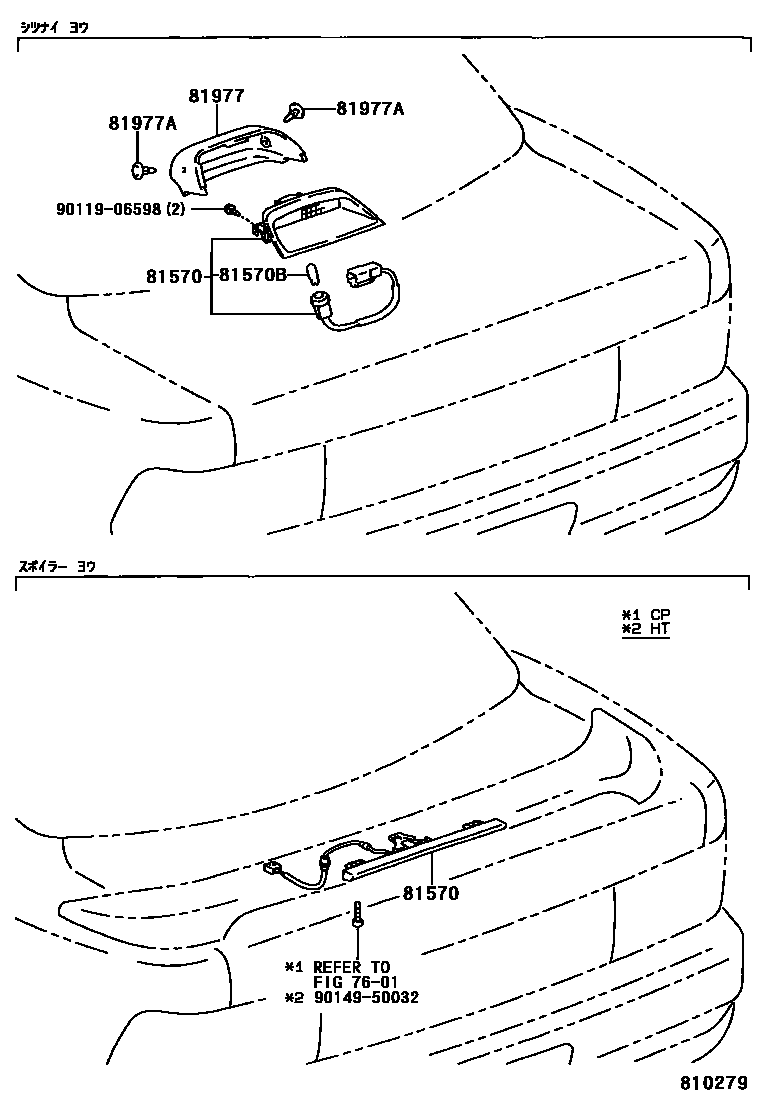

CENTER STOP LAMP

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

81570LAMP ASSY, CENTER STOP

main81570-12160iAE10#..S,SJ; AE101..GT,GTAPX,GTZ199106-199305

main81570-12200iAE10#..S,SJ199106-199305

main81570-12240-C0iAE10#..HT199205-199312

main81570-12240-G0iAE10#..F,X199205-199312

main81570-12241-C0iAE10#..4FC,5F; AE101..6F199704

main81570-12241-G0iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main81570-12260iAE10#..HT..(4FC,5F)199205

main81570-12270iAE10#..GT,S,SJ; AE101..GTAPX,GTZ199305-199505

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iAE10#..F,G,S,SJ,X199106-199305

81977COVER, CENTER STOP LAMP

main81977-12140iAE10#..S,SJ199106-199305

main81977-12160-C0iAE10#..HT199205

BLACK,TRIM2#

main81977-12160-G0iAE10#..F,X199205

SPRUCE,TRIM6#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07071-22×2iAE100..S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main90467-07139-C0×2iAE10#..HT199205

BLACK,TRIM2#

main90467-07139-G0×2iAE10#..F,X199205

SPRUCE,TRIM6#

9011906598

main90119-06598

9014950032

main90149-50032

7 parts on this diagram · 1 diagram in section
