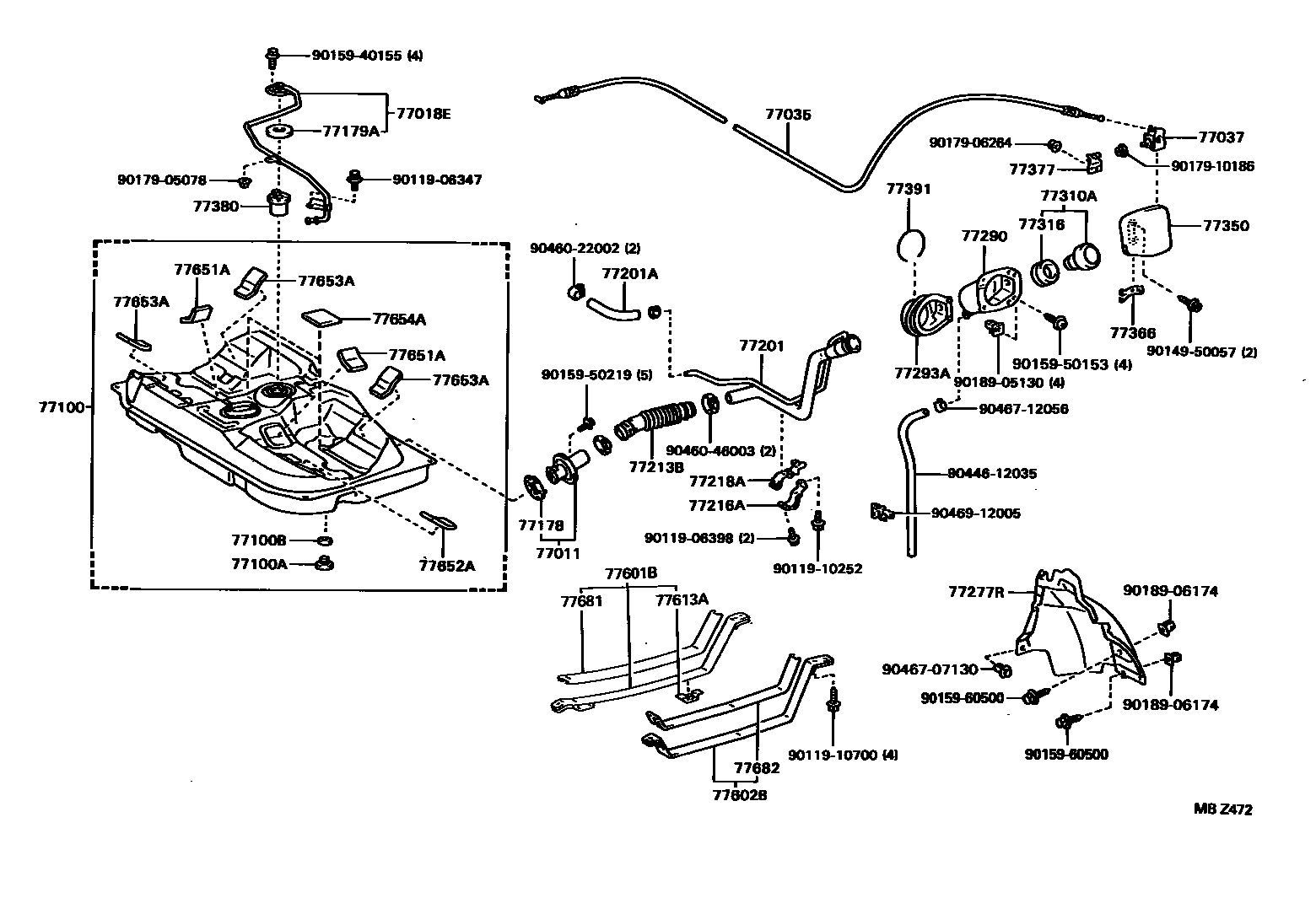

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iAE10#199106

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-12020iAE10#199106-199704

main77018-12050iAE10#199704

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12190iAE10#..HT199205-199505

main77035-12191iAE10#199505

main77035-12320iAE10#..CP199106-199505

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE10#199106

77100TANK ASSY, FUEL

main77001-12928iAE10#199106-199308

main77001-12932iAE10#199308-199704

main77001-12937iAE10#199704

77100APLUG(FOR FUEL TANK)

main90341-20004iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199308

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199308

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAE10#199106

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iAE10#199106

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12430iAE10#199106

main77201-12500iAE101..LVN..SJ;AE101..LVN..GTAPX..5F199106-199505

HONG KONG SPEC

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13022iAE10#199106

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12160iAE10#199106-199505

main77213-12170iAE10#199505

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12070iAE10#199106

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iAE10#199106

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12140iAE10#..HT199205

main77277-12150iAE10#..CP199106-199505

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12060iAE101..G199205-199605

main77291-12100iAE10#199605

main77291-12140iAE10#..CP199106-199505

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12070iAE10#..HT199205

main77293-12090iAE10#..CP199106-199505

77310ACAP ASSY, FUEL TANK

main77310-16011iAE10#199106-199803

main77310-48010iAE10#199803

77316GASKET, FUEL TANK CAP

main77316-16010iAE10#199106

77350LID ASSY, FUEL FILLER OPENING

main77350-12320iAE10#..CP199106-199505

main77350-12350iAE10#..HT199205

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12060iAE10#..CP199106-199505

main77360-12070iAE10#..HT199205

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iAE10#199106

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iAE10#199106

77391RING, FUEL INLET BOX

main77391-14020iAE10#199106

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12180iAE10#199106-199505

main77601-12210iAE10#199505

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12150iAE10#199106

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-16030iAE10#199106

77651ACUSHION, FUEL TANK, NO.1

main77651-20050×2iAE10#199106

77652ACUSHION, FUEL TANK, NO.2

main77652-12110iAE10#199106

77653ACUSHION, FUEL TANK, NO.3

main77653-17010×3iAE10#199106

77654ACUSHION, FUEL TANK, NO.4

main77654-12070×2iAE10#199106

77681SEAT, FUEL TANK BAND, RH

main77681-12030iAE10#199106-199304

main77681-32060iAE10#199305

main77682-12030iAE10#199304-199305

77682SEAT, FUEL TANK BAND, LH

main77681-12030iAE10#199203-199304

main77681-32060iAE10#199305

main77681-32070iAE10#199304-199305

main77682-12020iAE10#199106-199203

9011906347

main90119-06347

9011906398

main90119-06398

9011910252

main90119-10252

9011910700

main90119-10700

9014950057

main90149-50057

9015940155

main90159-40155

9015950153

main90159-50153

9015950219

main90159-50219

9015960500

main90159-60500

9017905078

main90179-05078

9017906264

main90179-06264

9017910186

main90179-10186

9018905130

main90189-05130

9018906174

main90189-06174

9044612035

main90446-12035

9046022002

main90460-22002

9046046003

main90460-46003

9046707130

main90467-07130

9046712056

main90467-12056

9046912005

main90469-12005

53 parts on this diagram · 4 diagrams in section
