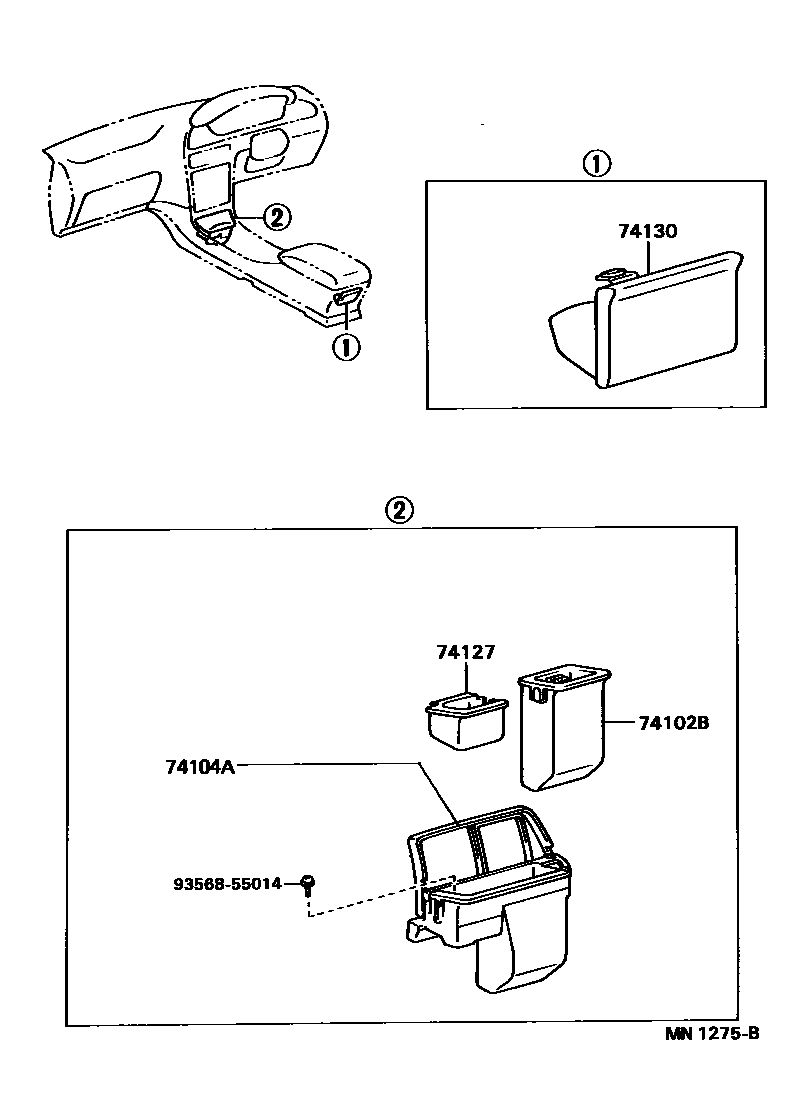

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12230iAE10#199106

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12220iAE10#199106

74127BEZEL, FRONT ASH RECEPTACLE

main74127-12010iAE10#199106-199305

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-22iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main74109-12020-G0iAE10#..F,X199205-199808

SPRUCE,TRIM6#

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
