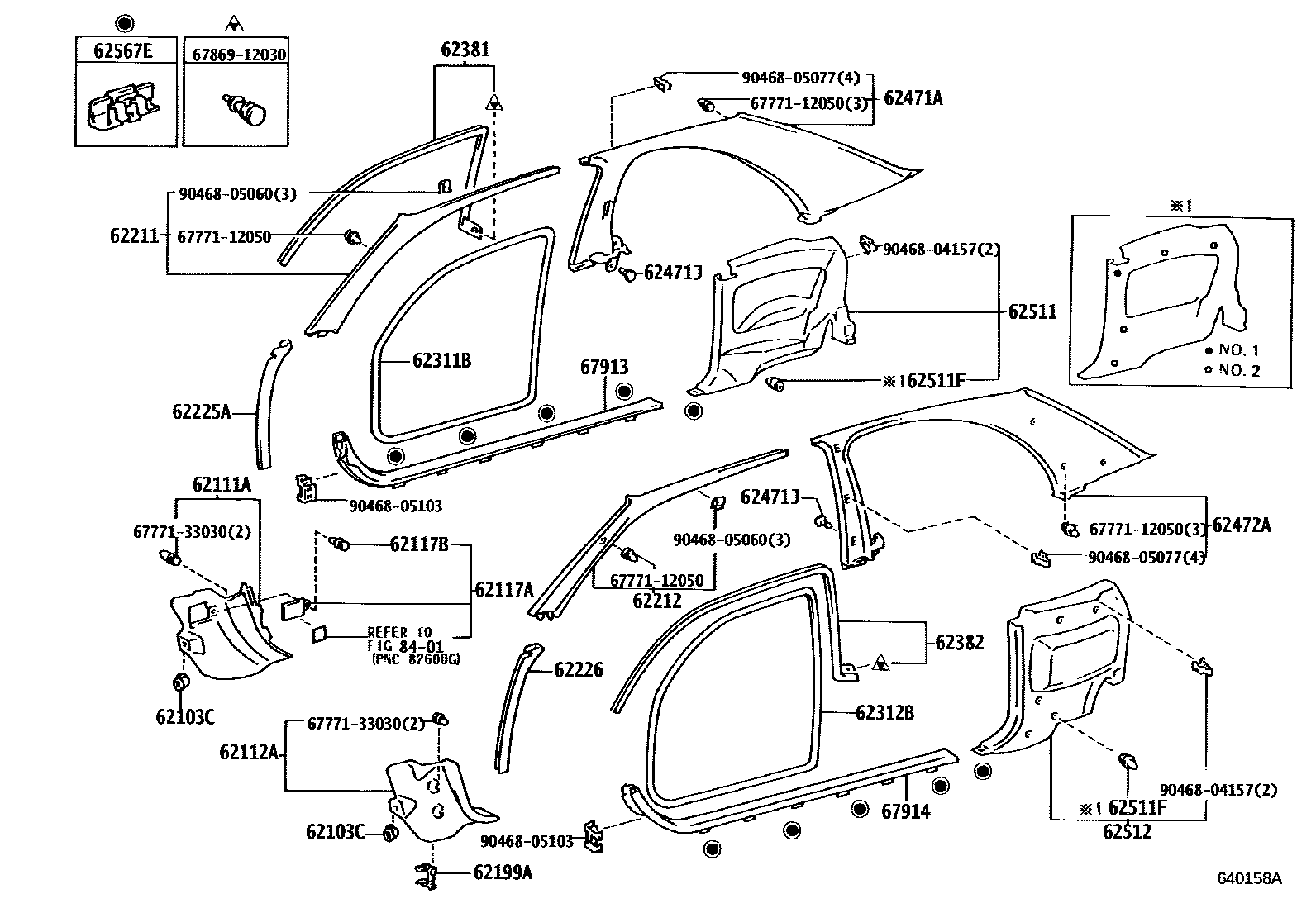

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE10#..G,GT,GTZ,S199206-199211

BLACK,TRIM2#

sub90467-05050

main90467-05050-01iAE10#..F,X199206-199211

BLACK,TRIM2#,20,21,22

sub90467-05050

main90467-05050-01iAE10#..F,X199206-199211

BLACK,TRIM2#,6#

sub90467-05050

main90467-05050-01iAE10#..F,X199206-199211

BLACK,TRIM20,21,22

sub90467-05050

main90467-05050-22iAE10#..G,GT,GTZ,S199211-199305

BLACK,TRIM20,21,22

sub90467-05050

main90467-05050-22iAE101..GTAPX199211-199305

BLACK,TRIM2#,20,21,22

sub90467-05050

main90467-05050-22iAE101..GTAPX199211-199808

BLACK,TRIM2#

sub90467-05050

main90467-05050-22iAE10#..F,X199211-199808

BLACK,TRIM2#,6#

sub90467-05050

main90467-08160iAE10#199106-199206

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-12200-22iAE101..SJ199106-199305

BLACK,TRIM2#

main62111-12200-22iAE10#..F,G,GT,GTAPX,GTZ,S,X199106-199305

BLACK,TRIM20,21,22

main62111-12200-G0iAE10#..F,X199205

SPRUCE,TRIM6#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-12200-22iAE10#..F,G,GT,GTAPX,GTZ,S,X199106-199305

BLACK,TRIM20,21,22

main62112-12200-22iAE101..SJ199106-199305

BLACK,TRIM2#

main62112-12200-G0iAE10#..F,X199205

SPRUCE,TRIM6#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-22iAE101..SJ199106-199305

BLACK,TRIM20,21,22

sub62117-12141

main62117-12140-22iAE101..SJ199106-199605

BLACK,TRIM2#

sub62117-12141

main62117-12140-G0iAE10#..F,X199205-199605

SPRUCE,TRIM6#

sub62117-12141

main62117-12141-22iAE10#199605-199808

BLACK,TRIM2#

sub62117-12141

main62117-12141-G0iAE10#..F,X199605-199808

SPRUCE,TRIM6#

sub62117-12141

main62117-12160-22iAE101..GTZ199106-199505

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE10#199106

62199AHOLDER, FUSEE

main90468-25003iAE10#199106

62211GARNISH, FRONT PILLAR, RH

main62211-12250-22iAE101..SJ199106-199505

BLACK,TRIM2#

main62211-12250-22iAE10#..GT,GTAPX,GTZ,S199106-199305

BLACK,TRIM20,21,22

main62211-12270-C0iAE10#..HT199205

BLACK,TRIM2#

sub62211-12270

main62211-12270-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub62211-12270

62212GARNISH, FRONT PILLAR, LH

main62212-12250-22iAE101..SJ199106-199505

BLACK,TRIM2#

main62212-12250-22iAE101..SJ199106-199305

BLACK,TRIM20,21,22

main62212-12270-C0iAE10#..HT199205

BLACK,TRIM2#

sub62212-12270

main62212-12270-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub62212-12270

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12030-22iAE101..SJ199106-199505

BLACK,TRIM2#

main62225-12030-22iAE10#..GT,GTAPX,GTZ,S199106-199305

BLACK,TRIM20,21,22

main62225-12050-C0iAE10#..HT199205

BLACK,TRIM2#

sub62225-12050

main62225-12050-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub62225-12050

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12030-22iAE10#..GT,GTAPX,GTZ,S199106-199305

BLACK,TRIM20,21,22

main62226-12030-22iAE101..SJ199106-199505

BLACK,TRIM2#

main62226-12050-C0iAE10#..HT199205

BLACK,TRIM2#

sub62226-12050

main62226-12050-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub62226-12050

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12050iAE10#..CP199106-199505

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12060iAE10#..CP199106-199505

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-12200iAE10#..CP199106-199505

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-12210iAE10#..CP199106-199505

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12670-22iAE101..SJ199106-199305

BLACK,TRIM20,21,22

main62471-12670-22iAE101..SJ199106-199505

BLACK,TRIM2#

main62471-12690-C0iAE10#..HT199205

BLACK,TRIM2#

sub62471-12690

main62471-12690-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub62471-12690

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-07072-11iAE101..SJ199205-199211

BLACK,TRIM20,21,22&040 ,192 ,205 ,3K4 ,6M3 ,925

sub90467-07072

main90467-07072-11iAE101..SJ199106-199205

BLACK,TRIM20,21,22&040 ,205 ,3K4 ,6M3 ,748 ,925

sub90467-07072

main90467-07072-11iAE101..SJ199106-199205

BLACK,TRIM2#&040 ,205 ,3K4 ,6M3 ,748 ,925

sub90467-07072

main90467-07072-11iAE101..SJ199205-199211

BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925

sub90467-07072

main90467-07072-22iAE101..SJ199211-199305

BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925

sub90467-07072

main90467-07072-22iAE10#..GT,GTAPX,GTZ,S199211-199305

BLACK,TRIM20,21,22&040 ,192 ,205 ,3K4 ,6M3 ,925

sub90467-07072

main90467-07072-22iAE10#..CP199305-199402

BLACK,TRIM2#&040 ,192 ,20W ,205 ,23V ,3K4 ,6M3

sub90467-07072

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12670-22iAE10#..GT,GTAPX,GTZ,S199106-199305

BLACK,TRIM20,21,22

main62472-12670-22iAE101..SJ199106-199505

BLACK,TRIM2#

main62472-12690-C0iAE10#..HT199205

BLACK,TRIM2#

sub62472-12690

main62472-12690-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub62472-12690

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-1A570-C0iAE101..GT,GTAPX,GTZ199106-199305

BLACK GRAY,TRIM20

main62510-1A570-C1iAE101..GTAPX199106-199305

BLACK AQUA,TRIM21

main62510-1A570-C2iAE101..GTAPX199106-199305

BLACK LAVENDER,TRIM22

main62510-1A571-B0iAE101..GTAPX,GTZ199305-199505

GRAY/BLACK,TRIM2#

main62510-1A580-C0iAE101..GTAPX,GTZ199106-199505

main62510-1A590-C0iAE101..GTZ199106-199107

sub62510-1A590

main62510-1A590-C1iAE101..GTAPX,GTZ199107-199505

sub62510-1A590

main62510-1A600-B0iAE10#..GT,S,SJ199305-199505

GRAY/BLACK,TRIM2#

main62510-1A600-C0iAE10#..S,SJ199106-199305

BLACK GRAY,TRIM20

main62510-1A600-C1iAE101..SJ199106-199305

BLACK AQUA,TRIM21

main62510-1A600-C2iAE101..SJ199106-199305

BLACK LAVENDER,TRIM22

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-12040iAE10#199106-199109

main67771-12050iAE10#..CP199109-199306

main67771-32110iAE10#..CP199106-199306

main90467-10161iAE10#..CP199306-199505

main90467-10167iAE10#..CP199306-199505

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-1A550-C0iAE101..GT,GTAPX,GTZ199106-199305

BLACK GRAY,TRIM20

main62520-1A550-C1iAE101..GTAPX199106-199305

BLACK AQUA,TRIM21

main62520-1A550-C2iAE101..GTAPX199106-199305

BLACK LAVENDER,TRIM22

main62520-1A551-B0iAE101..GTAPX,GTZ199305-199505

GRAY/BLACK,TRIM2#

main62520-1A560-C0iAE101..GTAPX,GTZ199106-199505

main62520-1A570-C0iAE101..GTZ199106-199505

main62520-1A580-B0iAE10#..GT,S,SJ199305-199505

GRAY/BLACK,TRIM2#

main62520-1A580-C0iAE10#..S,SJ199106-199305

BLACK GRAY,TRIM20

main62520-1A580-C1iAE101..SJ199106-199305

BLACK AQUA,TRIM21

main62520-1A580-C2iAE101..SJ199106-199305

BLACK LAVENDER,TRIM22

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-12030iAE10#..CP199106-199505

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12210-22iAE101..SJ199106-199505

BLACK,TRIM2#

main67913-12210-22iAE101..SJ199106-199305

BLACK,TRIM20,21,22

main67913-12230-C0iAE10#..HT199205

BLACK,TRIM2#

sub67913-12230

main67913-12230-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub67913-12230

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12180-22iAE101..SJ199106-199305

BLACK,TRIM20,21,22

main67914-12180-22iAE101..SJ199106-199505

BLACK,TRIM2#

main67914-12200-C0iAE10#..HT199205

BLACK,TRIM2#

sub67914-12200

main67914-12200-G0iAE10#..F,X199205

SPRUCE,TRIM6#

sub67914-12200

8401

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

6786912030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-12030

9046804157

main90468-04157

9046805060

main90468-05060

9046805077

main90468-05077

9046805103

main90468-05103

31 parts on this diagram · 2 diagrams in section
