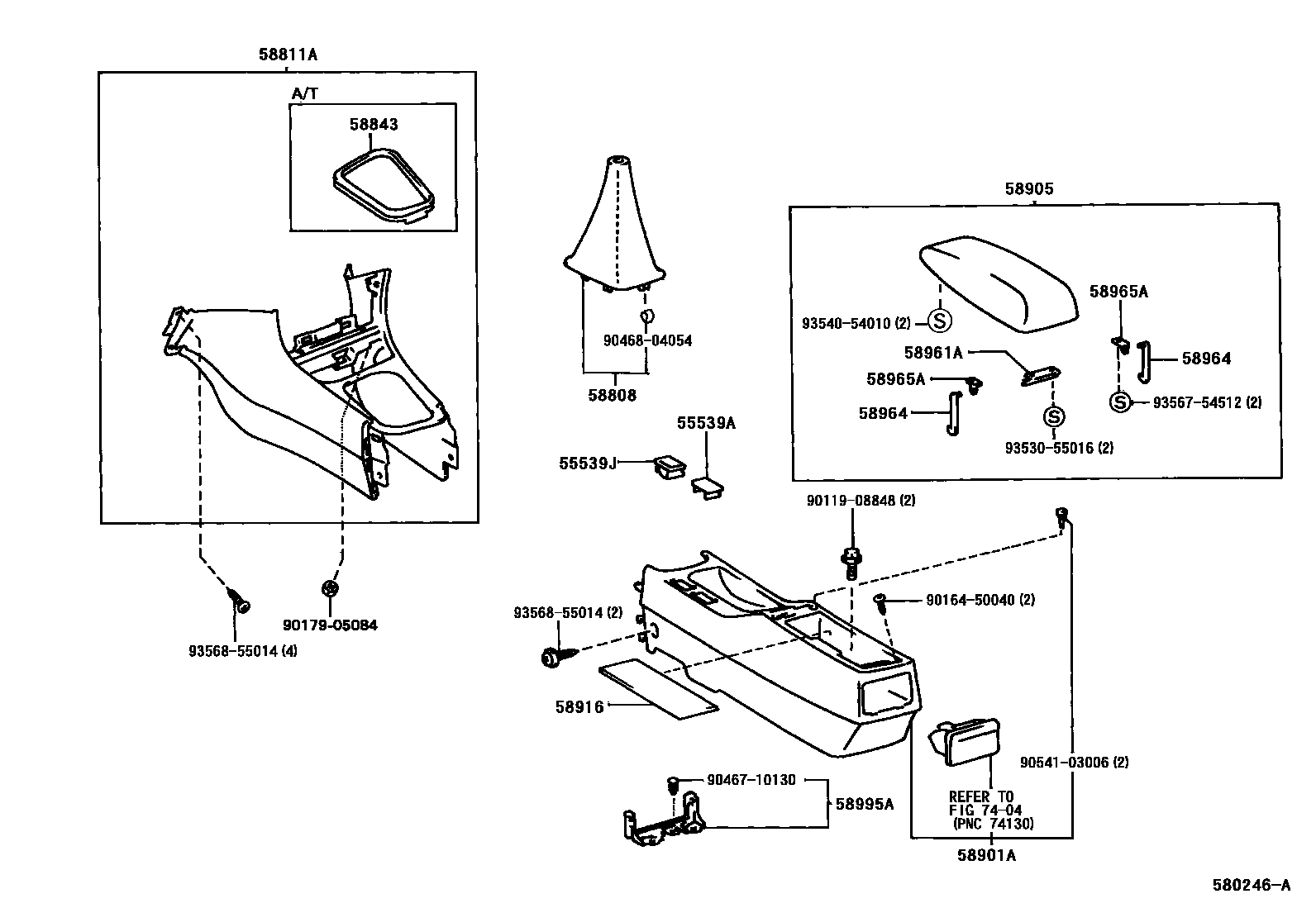

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-11iAE101..(G,GT,X)..4FC; AE101..GTAPX..4FC; AE101..SJ..4FC199205-199211

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main55539-20020-C0iAE101..4FC199305-199808

BLACK,TRIM2#

main55539-20020-G0iAE101..X..4FC199205-199808

SPRUCE,TRIM6#

main55539-32040-C0iAE100;AE101..(GT,GTZ,X)..5F; AE101..GTAPX..5F; AE101..SJ..5F199205-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main55539-32040-G0iAE100;AE101..X..5F199505-199808

SPRUCE,TRIM6#

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-11iAE100;AE101..(G,GT,GTZ,X)..5F; AE101..GTAPX..5F; AE101..SJ..5F199205-199211

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main55539-20020-C0iAE100;AE101..(G,GT,GTZ,X)..5F; AE101..GTAPX..5F; AE101..SJ..5F199211-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main55539-20020-G0iAE100..F;AE101..X..5F199205-199808

SPRUCE,TRIM6#

main55539-32040-C0iAE100;AE101..(GT,GTZ)..5F; AE101..GTAPX..5F; AE101..SJ..5F199106-199205

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12120-22iAE10#..(F,G,GT,GTZ,S,X)..5F; AE101..GTAPX..5F; AE101..SJ..5F199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58808-12120-G0iAE10#..(F,X)..5F199205-199505

SPRUCE,TRIM6#

main58808-12130-C0iAE10#..5F199505-199608

BLACK,TRIM2#

main58808-12130-G0iAE10#..5F199705

SPRUCE,TRIM6#

main58808-12131-C0iAE10#..5F199704

BLACK,TRIM2#

main58808-12131-G0iAE10#..5F199704

DK.SPRUCE GRAY,TRIM6#

main58808-12150-C0iAE101..6F199704

BLACK,TRIM2#

58811ABOX, CONSOLE, FRONT

main58811-12480-22iAE10#..MTM199106-199808

BLACK,TRIM2#

main58811-12480-G0iAE10#..(F,X)..5F199205-199808

SPRUCE,TRIM6#

main58811-12490-C0iAE10#..4FC199106-199808

BLACK,TRIM2#

main58811-12490-G0iAE10#..(F,X)..4FC199205-199808

SPRUCE,TRIM6#

58843BEZEL, SHIFTING HOLE

main58843-12070-22iAE10#..(F,G,GT,S,X)..4FC; AE101..GTAPX..4FC; AE101..SJ..4FC199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58843-12070-G0iAE10#..(F,X)..4FC199205

SPRUCE,TRIM6#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12270-C0iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58901-12270-G0iAE10#..F,X199205

SPRUCE,TRIM6#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12140-C0iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58905-12140-G0iAE10#..F,X199205

SPRUCE,TRIM6#

main58905-12150-C0iAE10#..F,X199205-199405

main58905-12150-G0iAE10#..F,X199205-199405

main58905-12170-C0iAE101..G; AE101..X199205-199405

58916MAT, BOX BOTTOM

main58916-12020iAE10#199106-199405

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-12060-C0iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58961-12060-G0iAE10#..F,X199205

SPRUCE,TRIM6#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12050iAE10#..HT199205-199405

main58965-12050iAE10#199106

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAE10#..4FC,5F199106

main58965-12050iAE10#..HT199205-199405

main58965-20020iAE10#..4FC,5F199106

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE10#..5F199106-199608

7404ASH RECEPTACLE

→ Go to FIG 74-04

9011908848

main90119-08848

9016450040

main90164-50040

9046710130

main90467-10130

9046804054

main90468-04054

9054103006

main90541-03006

9353055016

main93530-55016

9354054010

main93540-54010

9356754512

main93567-54512

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
