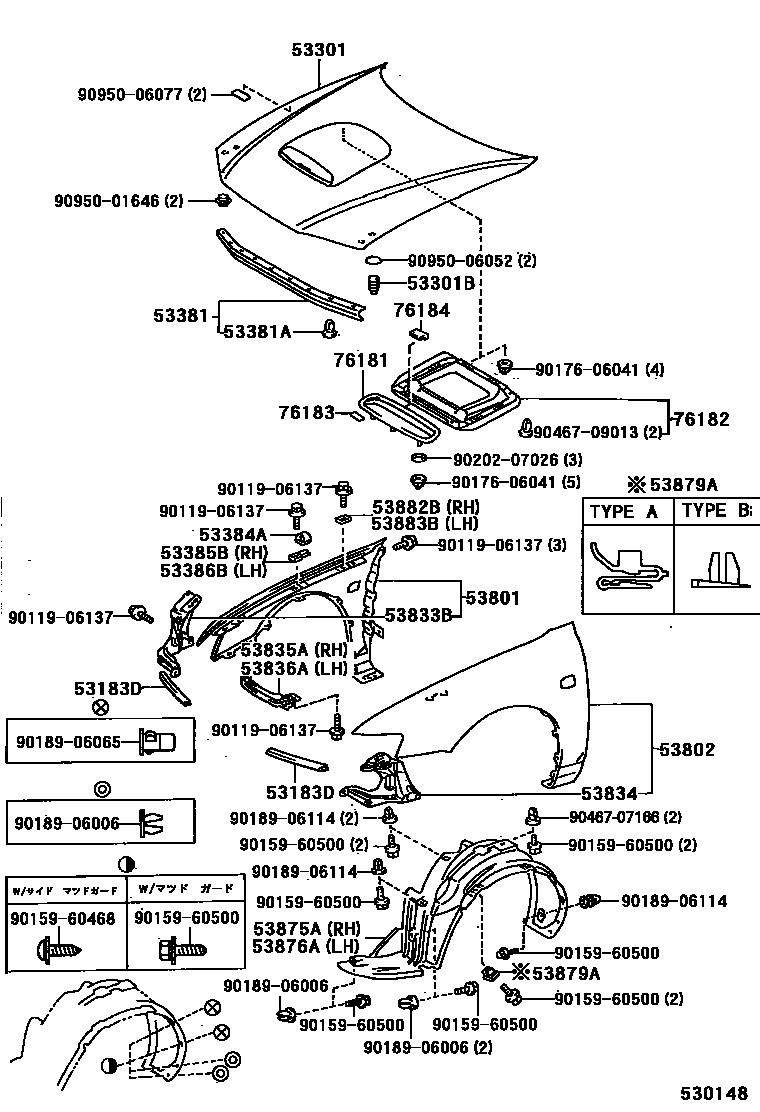

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-12120iAE10#..CRE199205

main53183-12130iAE10#..TRN199106-199505

main53183-12140iAE10#..LVN199106-199505

main53183-12160iAE10#..MRN199205

main53184-12080iAE10#..TRN199106-199505

main53184-12090iAE10#..LVN199106-199505

53301HOOD SUB-ASSY

main53301-12720iAE10#..LVN..(GT,GTAPX,S,SJ)199106-199505

main53301-12730iAE101..LVN..GTZ199106-199505

main53301-12740iAE10#..TRN..(GT,GTAPX,S,SJ)199106-199505

main53301-12750iAE101..TRN..GTZ199106-199505

main53301-12760iAE10#..CRE199205

main53301-12770iAE10#..MRN199205

53301BCUSHION, HOOD BUMPER

main90541-15019×2iAE10#199106

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12160iAE10#199106

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iAE10#199106

53384ABUMPER, FENDER TO HOOD

main53384-12070×2iAE10#..CP199106-199505

main53384-14030×2iAE10#..HT199205

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-12050iAE10#..CP199106-199505

main53386-20020iAE10#..HT199205

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iAE10#..HT199205

main53386-12060iAE10#..CP199106-199505

53801FENDER SUB-ASSY, FRONT RH

main53801-1E760iAE10#..LVN199106-199505

main53801-1E770iAE10#..LVN199106-199505

main53801-1E780iAE10#..TRN199106-199505

main53801-1E790iAE10#..TRN199106-199505

main53801-1E820iAE10#..CRE199205

main53801-1E830iAE10#..CRE..(4FC,5F)199205-199705

main53801-1E840iAE10#..MRN199205

main53801-1E850iAE10#..MRN..(4FC,5F)199205-199705

53802FENDER SUB-ASSY, FRONT LH

main53802-1E640iAE10#..LVN199106-199505

main53802-1E650iAE10#..LVN199106-199505

main53802-1E660iAE10#..TRN199106-199505

main53802-1E670iAE10#..TRN199106-199505

main53802-1E700iAE10#..CRE199205

main53802-1E710iAE10#..CRE..(4FC,5F)199205-199705

main53802-1E720iAE10#..MRN199205

main53802-1E730iAE10#..MRN..(4FC,5F)199205-199705

53833BPANEL, FRONT FENDER SIDE, RH

main53083-12080iAE10#..HT199205

main53831-12270iAE10#..CP199106-199505

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53084-12080iAE10#..HT199205

main53832-12270iAE10#..CP199106-199505

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-12040iAE10#..HT199205

main53835-12090iAE10#..CP199106-199505

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-12050iAE10#..CP199106-199505

main53836-12060iAE10#..HT199205

53875ALINER, FRONT FENDER, RH

main53875-12220iAE10#..CP199106-199505

main53875-12230iAE10#..HT199205

53876ALINER, FRONT FENDER, LH

main53876-12210iAE10#..CP199106-199505

main53876-12220iAE10#..HT199205

53879ARETAINER, FRONT FENDER LINER

main53879-14010×4iAE10#..HT199306

main75396-12110×2iAE10#..CP199306-199505

53882BSEAL, FRONT FENDER, RH

main53882-16030×4iAE10#..CP199106-199505

53883BSEAL, FRONT FENDER, LH

main53882-16030×4iAE10#..CP199106-199505

76181BULGE, HOOD

main76181-12901iAE101..GTZ199106-199505

76182GUIDE, HOOD AIR INTAKE

main76182-12020iAE101..GTZ199106-199505

76183PROTECTOR, HOOD BULGE, NO.1

main76183-12030×7iAE101..GTZ199106-199505

76184PROTECTOR, HOOD BULGE, NO.2

main76184-12020×2iAE101..GTZ199106-199505

9011906137

main90119-06137

9015960468

main90159-60468

9015960500

main90159-60500

9017606041

main90176-06041

9018906006

main90189-06006

9018906065

main90189-06065

9018906114

main90189-06114

9020207026

main90202-07026

9046709013

main90467-09013

9095001646

main90950-01646

9095006052

main90950-06052

9095006077

main90950-06077

35 parts on this diagram · 4 diagrams in section
