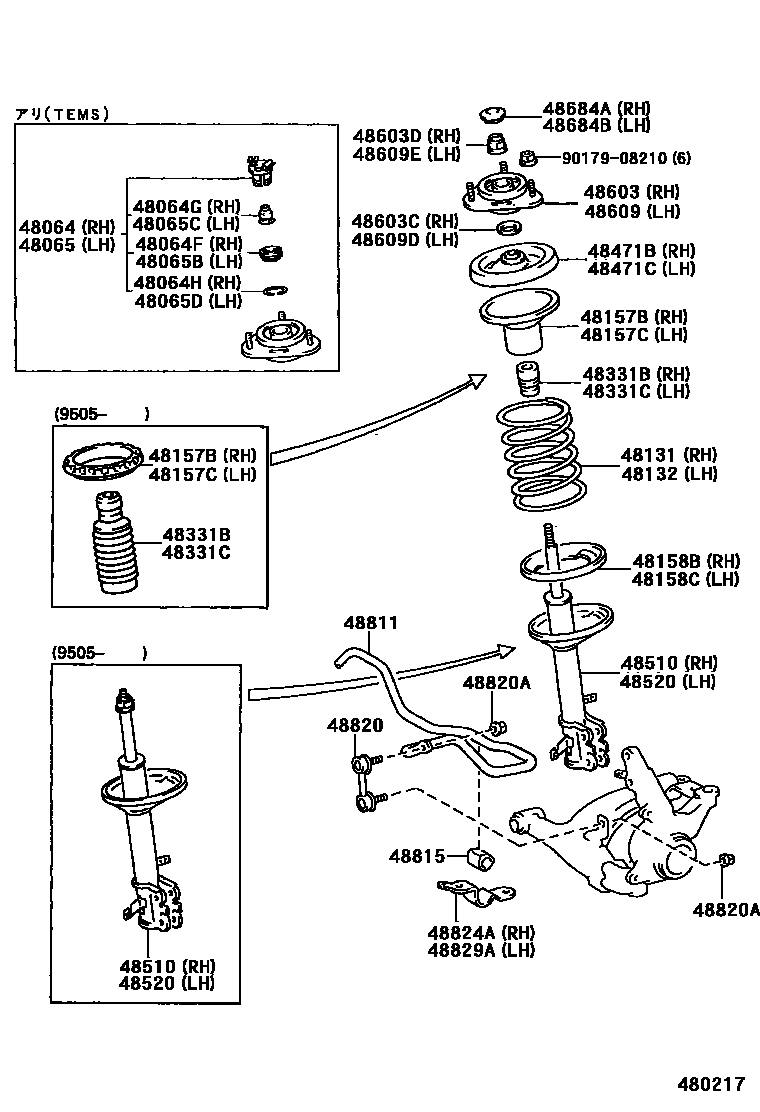

FRONT SPRING & SHOCK ABSORBER
48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH
48064FSEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER RH)
48064GGROMMET(FOR FRONT SUSPENSION SUPPORT COVER RH)
48064HRING, SET(FOR FRONT SUSPENSION SUPPORT COVER RH)
48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH
48065BSEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER LH)
48065CGROMMET(FOR FRONT SUSPENSION SUPPORT COVER LH)
48065DRING, SET(FOR FRONT SUSPENSION SUPPORT COVER LH)
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-1A010
sub48510-12880
sub48510-19265
sub48510-19755
sub48510-80232
sub48510-80235
sub48510-80232
sub48510-87699
sub48510-87700
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-12770
sub48520-12750
sub48520-80055
sub48520-19025
sub48520-19435
sub48520-80055
sub48520-80057
sub48520-49246
sub48520-49256
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48820LINK ASSY, FRONT STABILIZER
48820ANUT(FOR FRONT STABILIZER LINK)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017908210
main90179-08210
35 parts on this diagram · 2 diagrams in section
