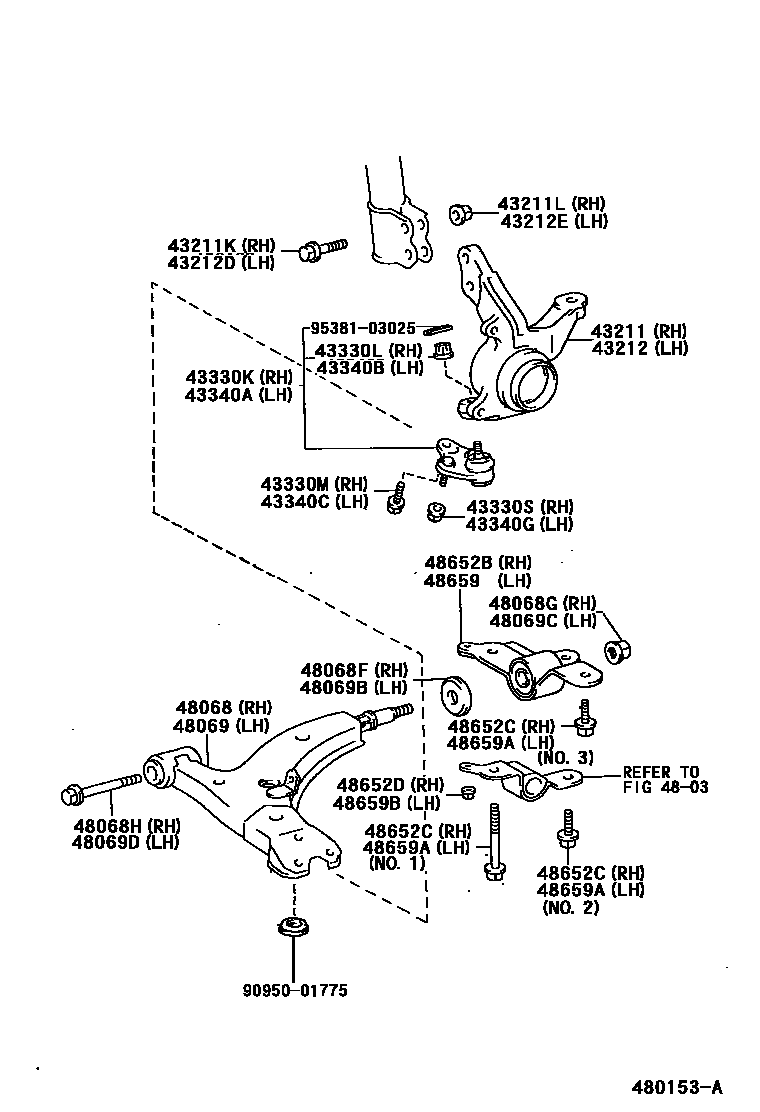

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1��(�-��- ����� ��������)

43211KNUCKLE, STEERING, RH

main43211-12180iAE101..GTAPX199106-199505

main43211-12220iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

sub43211-12330

main43211-12240iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

sub90389-16020

main43211-12290iAE10#199505-199605

main43211-12300iAE10#199605-199704

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001×2iAE10#..F,G,GT,GTAPX,S,SJ,X199408

main90105-15004iAE10#..GT,GTAPX,S,SJ199106-199211

main90105-15005iAE10#..F,G,GT,GTAPX,S,SJ,X199211

main90105-15006iAE10#..F,G,GT,GTAPX,S,SJ,X199211

main90105-15007×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199408

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43212KNUCKLE, STEERING, LH

main43212-12140iAE101..GTAPX199106-199505

main43212-12180iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

sub43212-12290

main43212-12200iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

sub90389-16020

main43212-12250iAE10#199505-199605

main43212-12260iAE10#199505-199605

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001×2iAE10#..F,G,GT,GTAPX,S,SJ,X199408

main90105-15004iAE10#..GT,GTAPX,S,SJ199106-199211

main90105-15005iAE10#..GT,GTAPX,S,SJ199106-199211

main90105-15006iAE10#..F,G,GT,GTAPX,S,SJ,X199211

main90105-15007×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199408

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19095iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

main43330-19115iAE10#199505-199808

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19095iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

main43330-19115iAE10#199505-199808

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE10#..F,G,GT,GTAPX,S,SJ,X199106

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12130iAE100199106-199505

main48068-12140iAE101..G,GT,GTAPX,SJ,X199106-199505

main48068-12160iAE100199505-199808

main48068-12170iAE101..X199505-199610

main48068-12171iAE101..X199610-199808

main48068-12180iAE101..G199505-199610

main48068-12181iAE101..G199610-199808

main48605-12090iAE101..GTAPX199106-199505

sub48605-12200

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02152iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-10075iAE101..GTAPX199106-199505

ATTACHMENT SIDE

main90179-14006iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

main90179-14053iAE101..GTAPX199106-199505

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-10327iAE101..GTAPX199106-199505

main90119-14023iAE101..GTAPX199106-199505

main90119-14041iAE101..GTAPX199106-199505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12130iAE100199106-199505

main48069-12140iAE101..G,GT,GTAPX,SJ,X199106-199505

main48069-12160iAE100199505-199808

main48069-12170iAE101..X199505-199610

main48069-12171iAE101..X199610-199808

main48069-12180iAE101..G199505-199610

main48069-12181iAE101..G199610-199808

main48606-12080iAE101..GTAPX199106-199505

sub48606-12190

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02152iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-10075iAE101..GTAPX199106-199505

ATTACHMENT SIDE

main90179-14006iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

main90179-14053iAE101..GTAPX199106-199505

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-10327iAE101..GTAPX199106-199505

main90119-14023iAE101..GTAPX199106-199505

main90119-14041iAE101..GTAPX199106-199505

48652BBRACKET, FRONT LOWER ARM, RH

main48075-12010iAE101..GT,GTAPX,SJ199106-199205

main48075-12030iAE100199106-199205

main48075-12031iAE10#..F,S,SJ,X199205-199305

main48075-12040iAE100199305-199505

main48652-12030iAE101..GTAPX199106-199505

main48652-12060iAE100199505-199704

main48652-12070iAE101199505

main48652-12100iAE100199704

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90109-10168iAE101..6F199704

main90119-10692iAE10#199106

main90119-12125iAE10#199106

main90119-12238iAE10#199106

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08072iAE101..GTAPX199106-199408

main90179-08145×2iAE101..GTAPX199408-199505

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48076-12010iAE101..GT,GTAPX,SJ199106-199205

main48076-12030iAE100199106-199205

main48076-12031iAE10#..F,S,SJ,X199205-199305

main48076-12040iAE100199305-199505

main48659-12030iAE101..GTAPX199106-199505

main48659-12060iAE100199505-199704

main48659-12070iAE101199505

main48659-12100iAE100199704

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90109-10168iAE101..6F199704

main90119-10692iAE10#199106

main90119-12125iAE10#199106

main90119-12238iAE10#199106

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08072iAE101..GTAPX199106-199408

main90179-08145×2iAE101..GTAPX199408-199505

sub90179-08123

9095001775

main90950-01775

9538103025

main95381-03025

31 parts on this diagram · 4 diagrams in section
