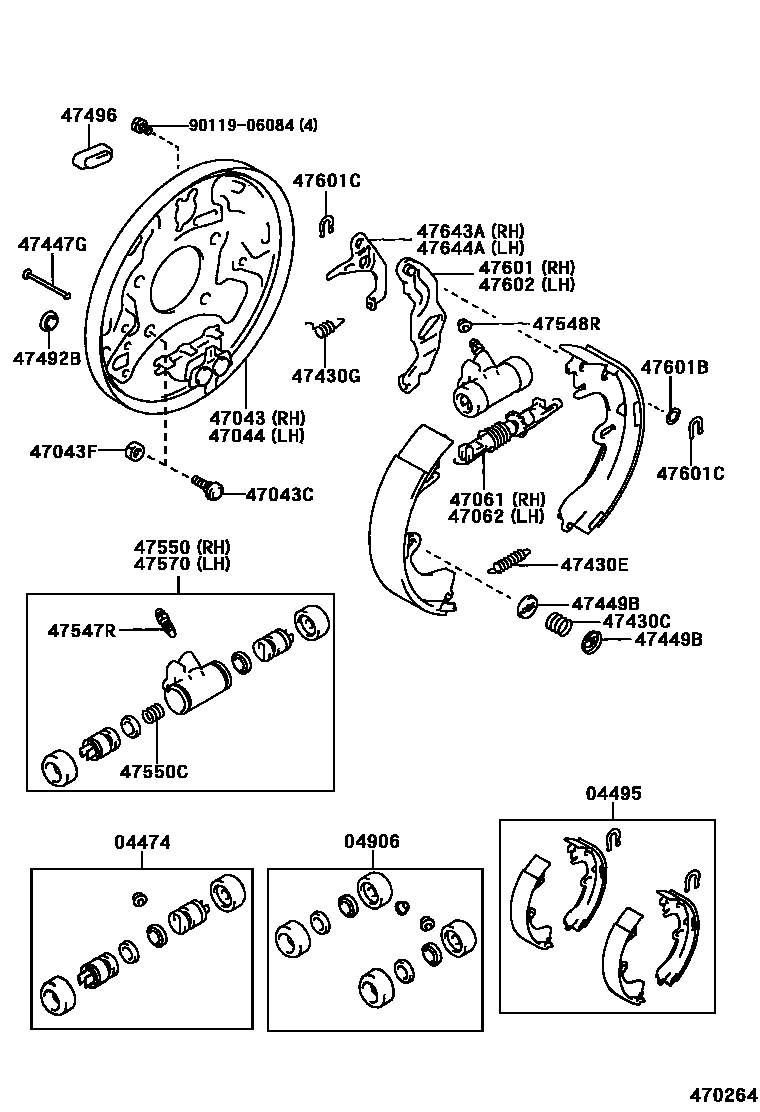

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-16020iAE10#..F,S,SJ,X199106

04495SHOE KIT, REAR BRAKE

main04495-12210iAE10#..F,S,SJ,X199106-199710

main04495-12240iAE10#..F,X199710

main04497-12110iAE10#..F,S,SJ,X199106-199704

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16020iAE10#..F,S,SJ,X199106

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE10#..F,S,SJ,X199106

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22020iAE10#..F,S,SJ,X199106-199705

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iAE10#..F,S,SJ,X199106-199705

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAE10#..F,S,SJ,X199106

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iAE10#..F,S,SJ,X199106

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iAE10#..F,S,SJ,X199106

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iAE10#..F,S,SJ,X199106

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAE10#..F,S,SJ,X199106

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAE10#..F,S,SJ,X199106

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iAE10#..F,S,SJ,X199106

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iAE10#..F,S,SJ,X199106

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAE10#..F,S,SJ,X199106

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAE10#..F,S,SJ,X199106

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAE10#..F,S,SJ,X199106

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAE10#..F,S,SJ,X199106

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12090iAE10#..F,S,SJ,X199106-199408

sub47550-16060

main47550-16060iAE10#..F,S,SJ,X199408-199808

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAE10#..F,S,SJ,X199106

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-12030iAE10#..F,S,SJ,X199106-199408

sub47570-16040

main47570-16040iAE10#..F,S,SJ,X199408-199808

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAE10#..F,S,SJ,X199106

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE10#..F,S,SJ,X199106

main90564-08151iAE10#..F,S,SJ,X199106

main90564-08152iAE10#..F,S,SJ,X199106

main90564-08172iAE10#..F,S,SJ,X199106

main90564-08173iAE10#..F,S,SJ,X199106

main90564-08174iAE10#..F,S,SJ,X199106

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAE10#..F,S,SJ,X199106

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAE10#..F,S,SJ,X199106

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAE10#..F,S,SJ,X199106

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAE10#..F,S,SJ,X199106

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
