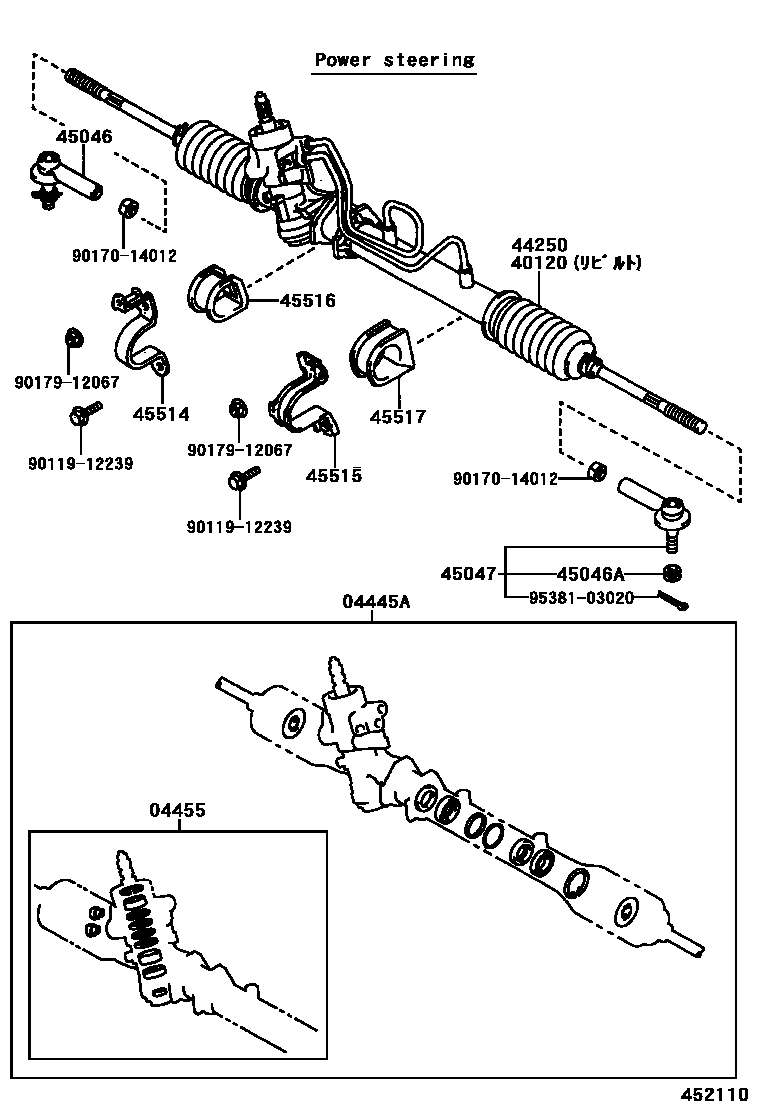

FRONT STEERING GEAR & LINK

0001 1 0003 1 0005 1 0008 1 0011 1��(����� ����� ��������) 0012 1��(������������������) 0013 1 0014 1 0015 1��(���� �������) 0016 1��(���� �������)

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12100iAE10#..F,G,GT,GTAPX,GTZ,SJ,X; AE100199106-199208

main04445-12110iAE100199208-199404

main04445-12130iAE101199305-199505

main04445-12150iAE10#..F,X199505-199808

main04445-12160iAE10#..F,X; AE101..G199505-199808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10040iAE10#..F,G,GT,GTAPX,GTZ,SJ,X; AE100199106-199208

main04455-12090iAE100199208-199404

main04455-12210iAE10#..F,X; AE101..G199505-199808

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-12340iAE101..GT..5F;AE101..G,GTAPX199106-199305

main40120-12440iAE100199404-199505

main40120-12450iAE101..SJ,X199305-199505

main40120-12460iAE101..G,GT,GTAPX199305-199505

main40120-12530iAE10#..F,X199505-199808

main40120-12550iAE101..G199505-199808

main40120-12620iAE10#..F,X199505-199808

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12290iAE100..F199205-199208

main44250-12321iAE101..GTAPX; AE101..GTZ199106-199305

main44250-12330iAE101..SJ,X199106-199305

main44250-12340iAE101..G,GT,GTAPX199106-199305

main44250-12420iAE100199404-199505

main44250-12440iAE100199404-199505

main44250-12450iAE101..SJ,X199305-199505

main44250-12460iAE101..G,GT,GTAPX199305-199505

main44250-12470iAE101..GTAPX; AE101..GTZ199305-199505

main44250-12530iAE10#..F,X199505-199808

main44250-12550iAE101..G199505-199808

main44250-12620iAE100..S199106-199207

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

main45046-29305iAE10#199505-199808

main45460-19245iAE101..GTAPX; AE101..GTZ199503-199505

main45460-29385iAE101..GTAPX; AE101..GTZ199106-199503

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE10#199106

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199505

main45046-29305iAE10#199505-199808

main45470-19075iAE101..GTAPX; AE101..GTZ199503-199505

main45470-29145iAE101..GTAPX; AE101..GTZ199106-199503

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE10#199106-199704

main45514-12110iAE101..G199704

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE10#199106

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE10#199106

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE10#199106

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

15 parts on this diagram · 10 diagrams in section
