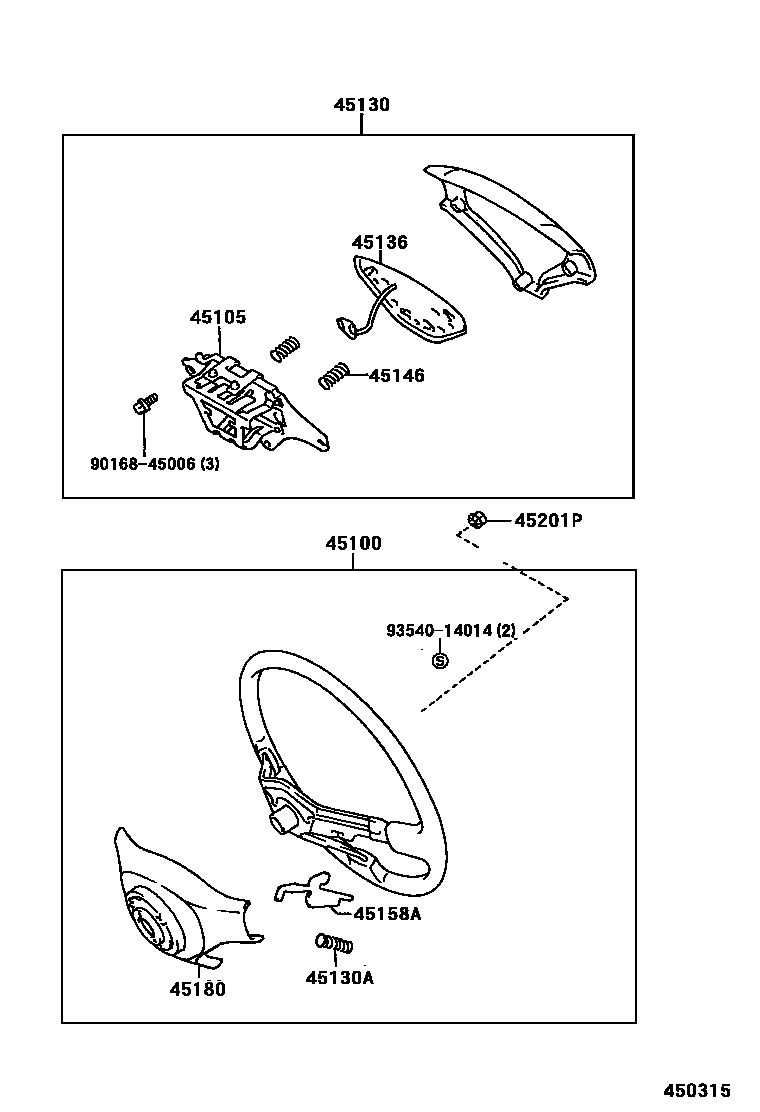

STEERING WHEEL

0001 13-SPOKE,���� 0002 14-SPOKE,���� 0003 13-SPOKE,���- 0004 13-SPOKE,���- 0005 14-SPOKE,���� 0006 14-SPOKE,���-,MOMO 0009 1��(����� *80) 0011 1��(����� *80) 0013 1��(������ *80) 0014 1��(������ *80)

45100WHEEL ASSY, STEERING

main45100-12620-22iAE100..S; AE101..SJ199106-199305

main45100-12621-22iAE10#..GT,S,SJ199309-199505

main45100-12640-C0iAE10#..F,X199205-199505

main45100-12640-G0iAE10#..F,X199205-199505

main45100-12650-22iAE100..F; AE101..X199312-199404

main45100-12660-22iAE10#..GT,S; AE101..GTAPX; AE101..GTZ; AE101..SJ199106-199205

main45100-12670-22iAE101..GTAPX199305-199505

main45100-12680-22iAE101..GTAPX199106-199305

main45100-12731-C0iAE101..G; AE101..X199505-199605

main45100-12731-G0iAE101..X199505-199605

main45100-12740-C0iAE10#..F,X199505-199605

main45100-12740-G0iAE10#..F,X199505-199605

main45100-12750-C0iAE10#199505-199605

main45100-12750-G0iAE10#..F,X199505-199605

main45100-12751-C0iAE10#..F,X199605-199704

main45100-12751-G0iAE10#..F,X199605-199704

main45100-12840-C0iAE101..G199605-199607

main45100-12860-C0iAE10#..F,X199612-199704

main45100-12860-G0iAE10#..F,X199612-199704

main45100-12870-B0iAE101..G199607-199704

main45100-12870-C0iAE101..G199607-199704

main45100-12891-C0iAE101..6F; AE101..G..4FC199704-199808

main45100-13010-C0iAE10#..F,X199704-199808

main45100-13010-G0iAE10#..F,X199704-199808

main45100-1A010-C0iAE101..G199612-199704

main45100-2B230-C0iAE10#..F,G,GT,S,X; AE101..GTAPX; AE101..SJ199205-199305

main45100-2B230-G0iAE10#..F,X199205-199309

main45100-2B231-C0iAE10#..F,G,GT,GTAPX,S,SJ,X; AE101..GTZ199309-199505

main45100-2B231-G0iAE10#..F,X199309-199505

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12140iAE10#..S,SJ199106-199305

main45105-12160iAE101..G,GT,GTAPX199106-199305

main45105-12170iAE101..GTAPX199106-199305

main45105-12180iAE10#..F,X199205-199505

main45105-12230iAE101..G; AE101..X199505-199605

main45105-32110iAE10#..F,X199505-199605

45130BUTTON ASSY, HORN

main45130-10150iAE101..GTAPX199305-199505

main45130-12420-22iAE101..GTAPX199106-199305

main45130-12680-22iAE100..S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main45130-12681-22iAE10#..GT,S,SJ199309-199505

BLACK,TRIM2#

main45130-12700-C0iAE10#..F,X199205-199505

BLACK,TRIM2#

main45130-12700-G0iAE10#..F,X199205-199505

SPRUCE,TRIM6#

main45130-12710-22iAE101..G,GT; AE101..GTAPX199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22

main45130-12721-22iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199205

main45130-12722-22iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199205-199305

main45130-12722-G0iAE10#..F,X199205-199305

main45130-12723-22iAE10#199305-199309

main45130-12723-G0iAE10#..F,X199305-199309

main45130-12724-22iAE10#199309-199505

main45130-12724-G0iAE10#..F,X199309-199505

main45130-12820-C0iAE101..G; AE101..X199505-199605

main45130-12820-G0iAE101..X199505-199605

main45130-12830-C0iAE10#..F,X199505-199605

BLACK,TRIM2#

main45130-12830-G0iAE10#..F,X199505-199605

SPRUCE,TRIM6#

main45130-12840-C0iAE10#199505-199605

main45130-12840-G0iAE10#..F,X199605-199704

SPRUCE,TRIM6#

main45130-1A050-C0iAE10#..F,X199612-199704

main45130-1A050-G0iAE10#..F,X199612-199704

main45130-1A060-C0iAE101..G199612-199704

main45130-1A070-C0iAE101..G199605-199607

BLACK,TRIM2#

main45130-1A080-B0iAE101..G199607-199704

SHADOW GRAY,TRIM1#

main45130-1A080-C0iAE101..G199607-199704

BLACK,TRIM2#

main45130-1A120-C0iAE101..G199704-199808

BLACK,TRIM2#

main45130-1A150-C0iAE10#..F,X199704-199808

BLACK,TRIM2#

main45130-1A150-G0iAE10#..F,X199704-199808

DK.SPRUCE GRAY,TRIM6#

45130ASPRING, COMPRESSION(FOR HORN BUTTON)

main90501-09112iAE10#..S,SJ199106-199305

45136PLATE, HORN BUTTON CONTACT

main45136-12230iAE10#..S,SJ199106-199305

main45136-32130iAE101199505-199605

45146SPRING, HORN BUTTON CONTACT

main45146-20140×2iAE10#..S,SJ199106-199305

main45146-20230×2iAE10#199106-199505

main45146-20260×2iAE101..G..(4FC,5F)199605-199705

main45146-32080×3iAE101199505-199605

45158ASOCKET, HORN BUTTON JOINT

main45158-12050iAE10#..GT,S,SJ199305-199505

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12120-C0iAE100..S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main45180-12140-C0iAE101..G,GT; AE101..GTAPX199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22

main45180-12150-C0iAE10#..F,X199205-199505

BLACK,TRIM2#

main45180-12150-G0iAE10#..F,X199205-199505

SPRUCE,TRIM6#

main45180-12180-C0iAE10#..F,X199505-199605

BLACK,TRIM2#

main45180-12180-G0iAE10#..F,X199505-199605

SPRUCE,TRIM6#

main45180-12190-C0iAE101..G; AE101..X199505-199605

main45180-12190-G0iAE101..X199505-199605

45201PNUT, STEERING WHEEL SET

main90179-12071iAE10#199306-199808

main90179-12086iAE10#199106-199306

9016845006

main90168-45006

9354014014

main93540-14014

11 parts on this diagram · 10 diagrams in section
