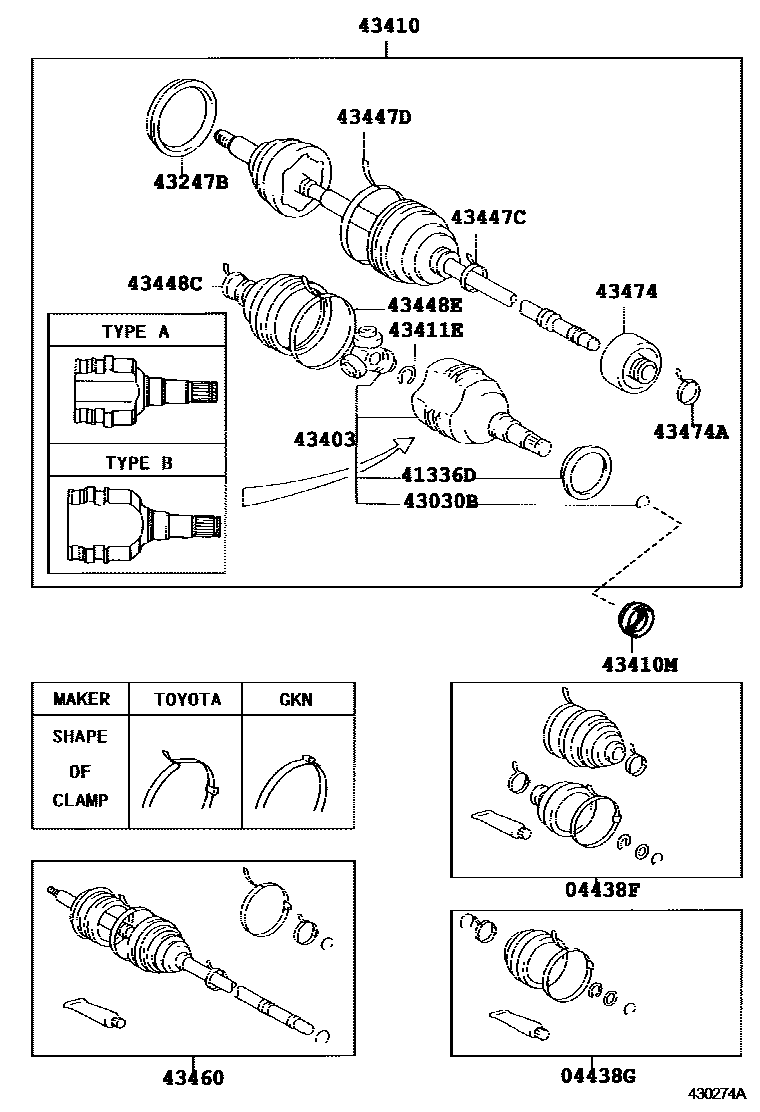

FRONT DRIVE SHAFT

0001 1TOYOTA,RH 0003 1SAGINAW,RH 0005 1RH 0006 1RH 0007 1RH 0008 1TOYOTA,LH 0010 1SAGINAW,LH 0012 1LH 0013 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-10060iAE100..4FC199106-199206

main04438-12100iAE101..GTZ199106-199505

main04438-12172iAE100..5F;AE100..F..4FC; AE101..SJ,X199305-199306

main04438-12290iAE101..(G,GT,GTAPX)..(4FC,5F)199106-199804

main04438-12340iAE101..6F199704

main04438-20131iAE101..G..4FC199804

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-02050iAE101..SJ,X199305-199505

SAGINAW

main04438-10050iAE100..S..4FC199206-199303

main04438-10060iAE100..S..4FC199303-199505

main04438-12090iAE101..GTZ199106-199505

main04438-12162iAE100..5F;AE101..SJ,X;AE100..F..4FC199206-199305

main04438-12260iAE101..G,GT,GTAPX199311-199511

main04438-12280iAE101..G,GT,GTAPX199106-199311

main04438-12410iAE10#..F,X199511

main04438-12420iAE101..G..(4FC,5F)199511-199804

main04438-20121iAE101..G..4FC199804

main04438-30010iAE101..6F199704

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-01010iAE10#..F,X199505-199808

SAGINAW

main41336-12010iAE100; AE101..SJ,X199305-199505

main41336-12020iAE101..GTZ199106-199505

main41336-20011iAE101..(G,GT,GTAPX)..(4FC,5F)199106-199808

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52015iAE101..SJ,X199305-199505

SAGINAW

main90521-26004iAE100; AE101..SJ,X199305-199505

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-02020iAE10#..F,X199704

main43247-02030iAE10#..F,X199505-199605

SAGINAW

main43247-12010iAE10#..F,X; AE101..G..4FC199704

main43247-33010iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199605

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-12020iAE101..6F199704-199808

main43030-12030iAE101..(G,GT,GTAPX)..(4FC,5F)199106-199808

main43030-12040iAE101..GTZ199106-199505

main43047-02030iAE101..SJ,X199305-199505

SAGINAW

main43403-10010iAE100..S..4FC199206-199303

main43403-12040iAE100..5F;AE100..F..4FC; AE100..S..4FC; AE101..SJ,X199305-199505

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02030iAE101..SJ,X199305-199505

SAGINAW

main43410-02031iAE10#..F,X199505-199508

SAGINAW

main43410-02040iAE101..SJ,X199305-199505

main43410-02041iAE10#..F,X199505-199508

main43410-02070iAE10#..F,X199508-199605

SAGINAW

main43410-02080iAE10#..F,X199508-199605

main43410-12260iAE100..S..4FC199206-199505

main43410-12270iAE100..S..4FC199206-199303

main43410-12280iAE100..5F;AE101..SJ199106-199107

main43410-12300iAE100..5F;AE101..SJ199106-199107

main43410-12312iAE101..6F199704-199709

main43410-12313iAE101..6F199709-199808

main43410-12360iAE101..G,GT,GTAPX199106-199605

main43410-12370iAE101..G,GT,GTAPX199106-199605

main43410-12371iAE101..G..4FC199709-199808

main43410-12390iAE101..GTZ199106-199505

main43410-20440iAE100..5F;AE100..F..4FC; AE101..SJ,X199305-199505

main43410-20450iAE100..S..4FC199303-199505

main43410-20451iAE10#..F,X199709-199808

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34007iAE10#..(GT,GTAPX,S,SJ)..5F199106-199108

main90311-34012iAE101..4FC199802-199808

main90311-34016iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199108-199808

main90311-34023iAE100..4FC199802-199808

main90311-40004iAE101..GTZ199106-199505

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52008×2iAE10#..F,X199505

SAGINAW

main90520-20065iAE101..6F199704

main90520-22001iAE100..S..4FC199303-199505

main90520-22005iAE10#..F,X; AE101..G..(4FC,5F)199505

main90520-26037iAE101..GTZ199106-199505

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-14010iAE101..G,GT,GTAPX199106-199704

main42345-16010iAE101..SJ,X199307-199505

main42345-22020iAE101..GTZ199106-199505

main42345-22030iAE101..6F199704-199808

main90080-46147iAE101..SJ,X199305-199505

SAGINAW

main90949-01078iAE100; AE101..X199704-199808

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12010iAE101..6F199704-199808

main42345-16020iAE100..S..4FC199206-199303

main42345-16040iAE101..G,GT,GTAPX199307-199704

main90080-46149iAE10#..F,X199505-199808

SAGINAW

main90949-01076iAE101..G..4FC199704-199808

main90949-01080iAE100..5F;AE100..F..4FC; AE101..SJ,X199305-199307

main90949-01400iAE101..GTZ199106-199505

main90949-01946iAE101..G..4FC199704-199808

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAE101..G..4FC199704-199808

main42345-22020iAE101..GTZ199106-199505

main90080-46148iAE101..SJ,X199305-199505

SAGINAW

main90949-01078iAE101..SJ,X199305-199307

main90949-01804iAE101..6F199704-199808

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAE10#..F,X; AE101..G..(4FC,5F)199505-199808

main42345-16080iAE100..S..4FC199206-199303

main42346-22020iAE101..GTZ199106-199505

main90080-46150iAE101..SJ,X199305-199505

SAGINAW

main90949-01076iAE100..5F;AE100..F..4FC;AE101..G,GT,GTAPX,SJ,X199206-199305

main90949-01146iAE100..S..4FC199206-199303

main90949-01803iAE101..6F199704-199808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09050iAE101..SJ,X199305-199505

SAGINAW

main43460-09051iAE10#..F,X199505-199605

SAGINAW

main43460-09060iAE101..SJ,X199305-199505

main43460-09061iAE10#..F,X199505-199508

main43460-09200iAE10#..F,X199605-199704

SAGINAW

main43460-09201iAE10#..F,X199709-199808

main43460-19635iAE100..S..4FC199206-199505

main43460-19645iAE100..S..4FC199206-199303

main43460-29098iAE100..5F;AE101..SJ,X;AE100..F..4FC199206-199305

main43460-29167iAE100..5F;AE101..SJ,X;AE100..F..4FC199206-199305

main43460-29168iAE10#..F,X199709-199808

main43470-19645iAE101..G,GT,GTAPX199106-199605

main43470-19655iAE101..G199605-199704

main43470-19656iAE101..G..4FC199709-199804

main43470-19657iAE101..G..4FC199804-199808

main43470-19695iAE101..GTZ199106-199505

main43470-19847iAE101..6F199704-199709

main43470-19848iAE101..6F199709-199808

43474DAMPER, DRIVE SHAFT

main43474-02041iAE10#..F,X199505

SAGINAW

main43474-12020iAE10#..S,SJ199106-199107

main43474-12040iAE10#..F,X199704

main43474-20050iAE10#..F,S,SJ,X199107-199505

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE100..5F;AE101..SJ,X;AE100..F..4FC199206-199307

main42345-16030iAE100..S..4FC199206-199307

main90080-46148iAE10#..F,X199505-199808

SAGINAW

16 parts on this diagram · 9 diagrams in section
