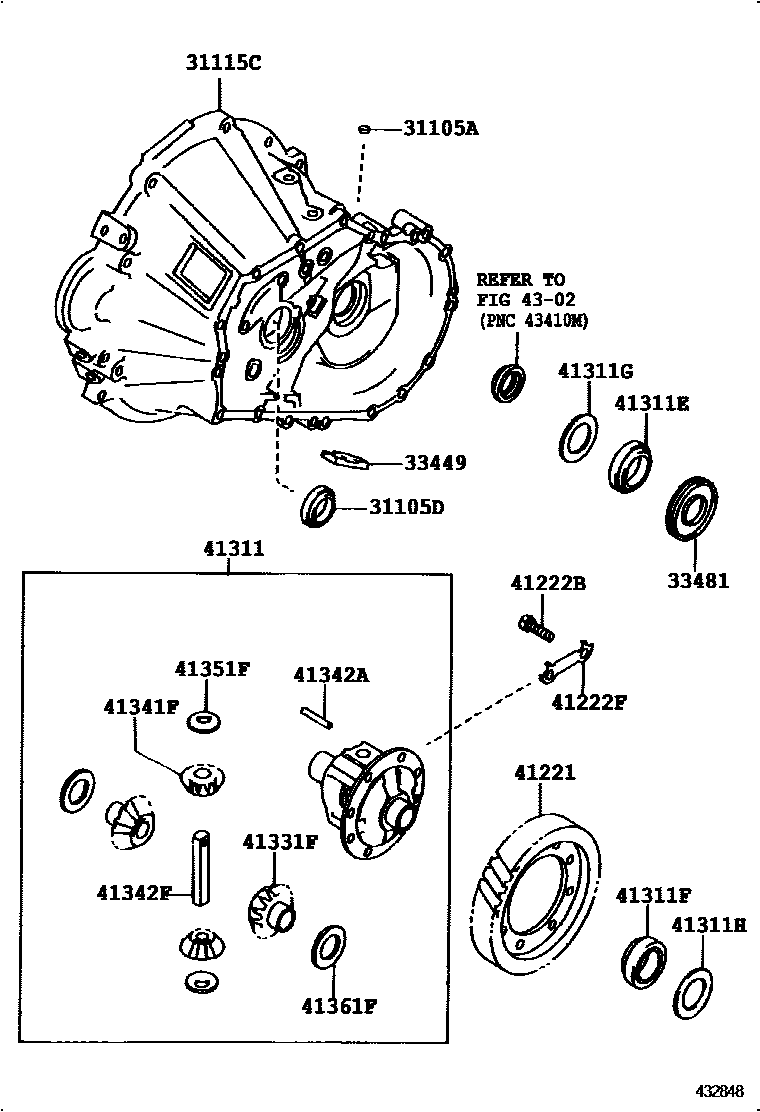

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C50,C51,C52,C56,C160 0002 1E58 0003 1A240L,A240E,A245E

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAE101..MTM..(G,GT,GTAPX)199106-199808

main90311-25016iAE10#..(F,S,SJ,X)..5F199106-199808

main90311-30006iAE101..GTZ199106-199505

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199405

main31115-12070iAE101..GTZ199106-199505

main31115-16040iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199405-199603

main31115-16041iAE10#..5F199603-199704

main31115-16042iAE10#..MTM199704-199808

33449MAGNET, TRANSMISSION

main33449-12020iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main33449-20010iAE101..GTZ199106-199505

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main33481-12100iAE101..GTZ199106-199505

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12160iAE100..5F199710-199808

main41221-12190iAE100..4FC199106-199808

main41221-12290iAE101..GTZ199106-199505

main41221-12310iAE100..5F199106-199710

main41221-12330iAE101..(SJ,X)..5F199106-199808

main41221-12340iAE101..(G,GT,GTAPX)..5F199106-199704

main41221-12380iAE101..6F199704-199808

main41221-20230iAE101..4FC199106-199808

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×8iAE10#..4FC199501-199808

main90105-11040×8iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199501-199808

main90105-12150×16iAE101..GTZ199106-199505

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040×4iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199501

main41222-12050×4iAE10#..4FC199106-199808

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199412

main41301-12041iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199412-199808

main41301-17021iAE10#..4FC199106-199308

main41301-20150iAE101..4FC199308-199808

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90080-36101iAE100..5F199805-199808

main90366-38004iAE100..5F; AE101..MTM199805-199808

NACHI OR KOYO

main90366-57001iAE101..GTZ199106-199505

main90368-38002iAE100..4FC199305-199808

main90368-38010iAE101..4FC199305-199808

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-42001iAE101..4FC199308-199808

main90366-50014iAE101..GTZ199106-199505

main90368-38010iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199308

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41010iAE10#..4FC199106-199305

main90201-41012×3iAE100..5F; AE101..MTM199805-199808

main90201-41024iAE101..4FC199305-199808

main90201-41045iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199408

main90560-41002iAE100..5F199805-199808

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iAE10#..4FC199106-199808

main90201-41025iAE10#..4FC199106-199808

main90201-41026iAE10#..4FC199106-199808

main90201-41027iAE10#..4FC199106-199808

main90201-41028iAE10#..4FC199106-199808

main90201-41029iAE10#..4FC199106-199808

main90201-41030iAE10#..4FC199106-199808

main90201-41031iAE10#..4FC199106-199808

main90201-41032iAE10#..4FC199106-199808

main90201-41033iAE10#..4FC199106-199808

main90201-41034iAE10#..4FC199106-199808

main90201-41035iAE10#..4FC199106-199808

main90201-41036iAE10#..4FC199106-199808

main90201-41039iAE10#..4FC199106-199808

main90201-41040iAE10#..4FC199106-199808

main90201-41041iAE10#..4FC199106-199808

main90201-41042iAE10#..4FC199106-199808

main90201-41043iAE10#..4FC199106-199808

main90201-41044iAE10#..4FC199106-199808

main90201-41046iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41047iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41048iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41049iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41050iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41051iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41052iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41053iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41054iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41055iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41056iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41057iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41058iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41059iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41060iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41061iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41062iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41063iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90201-41064iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199808

main41331-12100×2iAE101..GTZ199106-199505

41341FPINION, FRONT DIFFERENTIAL

main41341-12030×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199808

main41341-12050×2iAE101..GTZ199106-199505

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199808

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12020iAE10#..GT,GTAPX,S,SJ199106-199109

main41342-12130iAE101..GTZ199106-199505

main41342-12140iAE100;AE101..MTM..(G,GT,GTAPX,SJ,X)199308-199808

main41342-20060iAE101..4FC199308-199808

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020×2iAE10#..F,G,GT,GTAPX,S,SJ,X199106-199808

main41351-12070×2iAE101..GTZ199106-199505

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010×2iAE10#..4FC199106-199808

main41361-17020×2iAE10#..4FC199106-199808

main41361-17030×2iAE10#..4FC199106-199808

main41361-17040×2iAE10#..4FC199106-199808

main41361-17050×2iAE10#..4FC199106-199808

main41361-17060×2iAE10#..4FC199106-199808

main41361-22020×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main41361-22030×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main41361-22040×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main41361-22140×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main41361-22150×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main41361-22160×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main41362-12010×2iAE101..GTZ199106-199505

main41362-12020×2iAE101..GTZ199106-199505

main41362-12030×2iAE101..GTZ199106-199505

main41362-12040iAE101..GTZ199106-199505

main41362-12050iAE101..GTZ199106-199505

main41362-12060iAE101..GTZ199106-199505

main41362-12070iAE101..GTZ199106-199505

main41362-12080iAE101..GTZ199106-199505

main41362-12090iAE101..GTZ199106-199505

main41362-12100iAE101..GTZ199106-199505

main41362-12110iAE101..GTZ199106-199505

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

20 parts on this diagram · 3 diagrams in section
