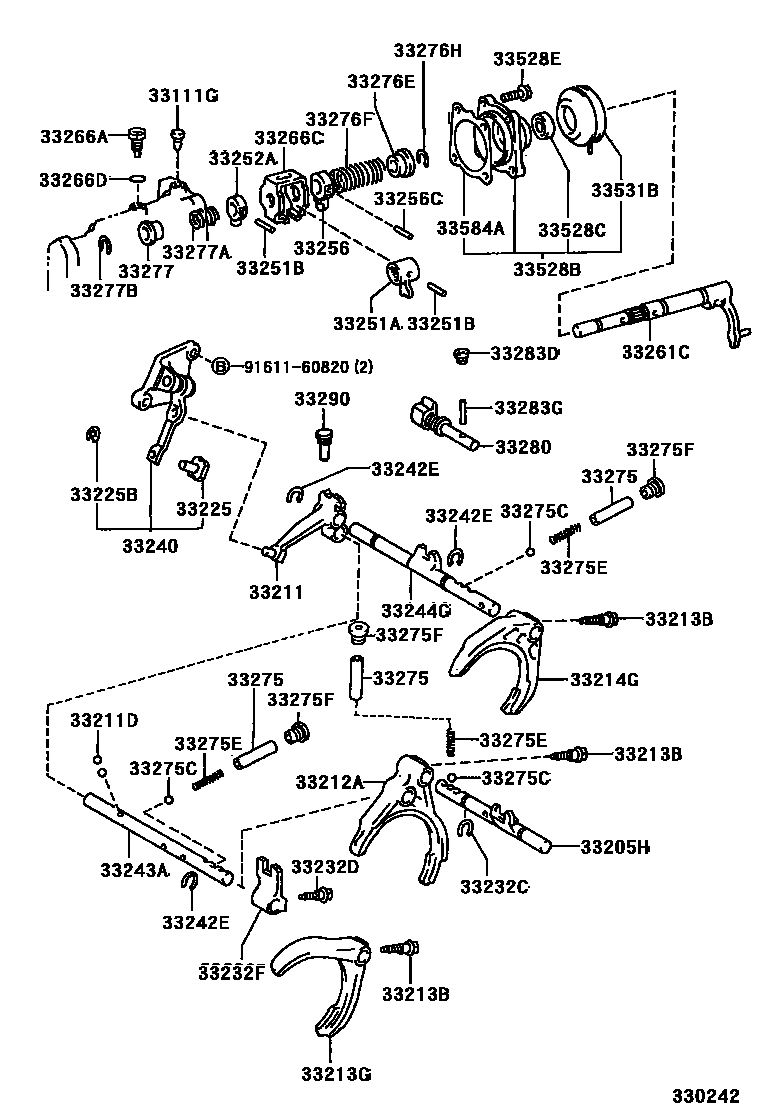

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1C50,C52,C56 0002 1C50,C51,C52,C56 0003 1E58 0004 1E58 0005 1C160

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iAE10#..(GT,GTAPX,S,SJ)..5F199106-199203

main90930-03133iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199203-199808

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-12021iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199408

main33205-12022iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199408-199808

main33205-12040iAE101..6F199704-199808

33211FORK, REVERSE SHIFT

main33211-12020iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199404

main33211-12021iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199404-199808

main33211-12050iAE101..6F199704-199808

main33211-20020iAE101..GTZ199106-199505

33211DBALL(FOR REVERSE SHIFT FORK)

main90360-06004×2iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

33212AFORK, GEAR SHIFT, NO.1

main33212-10013iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main33212-12030iAE101..GTZ199106-199505

33213BBOLT(FOR SHIFT FORK SET)

main90105-06115×3iAE10#..5F199704-199808

main90105-07002×3iAE101..GTZ199106-199505

33213GFORK, GEAR SHIFT, NO.2

main33213-10022iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main33213-12032iAE101..GTZ199106-199505

33214GFORK, GEAR SHIFT, NO.3

main33214-12020iAE101..GTZ199106-199505

main33214-12030iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33230-12010iAE101..6F199704-199808

33225SHOE, SHIFT ARM

main33225-12010iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199410

33225BRING, E(FOR SHIFT ARM SHOE)

main96160-00800iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199410

33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)

main90520-12003iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

33232DBOLT (FOR SHIFT HEAD SET)

main90105-06115iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main90105-07002iAE101..GTZ199106-199505

33232FHEAD, GEAR SHIFT, NO.1

main33232-10021iAE101..6F199704-199808

main33232-12012iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33232-12030iAE101..GTZ199106-199505

33240BRACKET ASSY, REVERSE SHIFT ARM

main33240-12011iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199410

main33240-12021iAE101..GTZ199106-199505

main33240-12030iAE101..6F199704-199808

main33240-16020iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199410-199808

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-12061iAE101..GTZ199106-199505

33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003×3iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199705

main90520-13002×5iAE101..GTZ199106-199505

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-12092iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199408

main33243-12093iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199408-199808

main33243-12110iAE101..GTZ199106-199505

main33243-12120iAE101..6F199704-199808

33244GSHAFT, GEAR SHIFT FORK, NO.3

main33244-12053iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199408

main33244-12054iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199408-199808

main33244-12080iAE101..GTZ199106-199505

main33244-12090iAE101..6F199704-199808

33251ALEVER, SHIFT, INNER NO.1

main33251-10050iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33251-12070iAE101..6F199704-199808

main33251-20050iAE101..GTZ199106-199505

33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

main90254-05002iAE101..GTZ199201-199206

main90254-05007iAE101..GTZ199106-199505

main90254-05016iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F; AE101..6F;AE101..GTZ199106-199808

33252ALEVER, SHIFT, INNER NO.2

main33252-12010iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199306

main33252-12011iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199306-199808

main33252-12020iAE101..6F199704-199808

main33252-20020iAE101..GTZ199106-199505

33256LEVER, SELECT INNER

main33256-12021iAE10#..(GT,GTAPX,S,SJ)..5F199106-199205

main33256-12022iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199306-199808

main33256-20010iAE101..GTZ199106-199201

33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)

main90254-05002×2iAE101..GTZ199106-199201

main90254-05016iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199308-199808

33261CSHAFT, SHIFT & SELECT LEVER

main33261-12051iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33261-12060iAE101..GTZ199106-199201

main33261-12080iAE101..6F199704-199808

main33261-20070iAE101..GTZ199201-199505

33266ABOLT (FOR SHIFT INTERLOCK PLATE)

main90109-12019iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199704

main90109-12073iAE10#..5F199704-199808

main90109-18002iAE101..GTZ199106-199505

33266CPLATE, SHIFT INTERLOCK

main33266-12021iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33266-12030iAE101..GTZ199106-199505

main33266-12040iAE101..6F199704-199808

33266DGASKET (FOR SHIFT INTERLOCK PLATE)

main90430-12008iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main90430-18008iAE101..GTZ199106-199505

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12041×3iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

main33275-20010×3iAE101..GTZ199106-199505

33275CBALL (FOR SHIFT DETENT)

main90360-08009×3iAE101..GTZ199106-199505

main90360-10003×3iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-11059×3iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199408

main90501-12168×3iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199408-199808

main90501-12173×3iAE101..6F199704-199808

main90501-14104×3iAE101..GTZ199106-199505

33275FPLUG (FOR SHIFT DETENT BALL)

main90341-12004×3iAE10#..MTM199106-199808

33276ESEAT, SELECT SPRING, NO.1

main33276-12021iAE10#..(GT,GTAPX,S,SJ)..5F199106-199205

main33276-12022iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199306-199808

main33276-12030iAE101..6F199704-199808

main33276-20010iAE101..GTZ199106-199201

main33276-20020iAE101..GTZ199201-199505

33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

main90501-14150iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199306-199308

main90501-16076iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199306

main90501-16103iAE101..GTZ199106-199201

main90501-16133iAE101..GTZ199201-199505

main90501-16142iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199308-199808

main90501-16151iAE101..6F199704-199808

33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)

main90520-15003iAE10#..5F199106-199808

33277SEAT, SELECT SPRING, NO.2

main33277-12010iAE10#..(GT,GTAPX,S,SJ)..5F199106-199205

main33277-12011iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199306-199808

main33277-12020iAE101..6F199704-199808

main33277-17010iAE101..GTZ199401-199505

main33277-20010iAE101..GTZ199106-199401

33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

main90501-16136iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199202-199808

main90501-16152iAE101..6F199704-199808

main90501-17028iAE101..GTZ199202-199308

main90501-17030iAE101..GTZ199308-199505

main90501-18052iAE10#..(GT,GTAPX,S,SJ)..5F199106-199202

main90501-18068iAE101..GTZ199106-199202

33277BRING, E (FOR SELECT SPRING NO.2 SEAT)

main90523-12003iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

33280PIN ASSY, REVERSE RESTRICT

main33280-12061iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33280-20041iAE101..GTZ199106-199505

33283DPLUG (FOR REVERSE RESTRICT PIN)

main90341-10065iAE10#..5F199106-199109

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05003iAE10#..5F199106-199808

33290BALL ASSY, LOCK, NO.1

main33290-12011iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33290-33011iAE101..6F199704-199808

33528BCOVER, CONTROL SHAFT

main33506-12061iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33506-12110iAE101..6F199704-199808

main33506-20210iAE101..GTZ199106-199201

main33506-20270iAE101..GTZ199201-199505

33528CSEAL, OIL (FOR CONTROL SHAFT COVER)

main90311-18006iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199210

main90311-18009iAE101..GTZ199106-199210

main90311-18013iAE10#..MTM199210-199808

33528EBOLT (FOR CONTROL SHAFT COVER)

main90119-10288×4iAE101..GTZ199106-199505

main91611-61025×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-12020iAE10#..5F199106-199808

main33531-12030iAE101..6F199704-199808

33584AGASKET, CONTROL SHIFT LEVER RETAINER

main33584-12050iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33584-12060iAE101..6F199704-199808

main33584-20020iAE101..GTZ199106-199505

9161160820

main91611-60820

47 parts on this diagram · 5 diagrams in section
