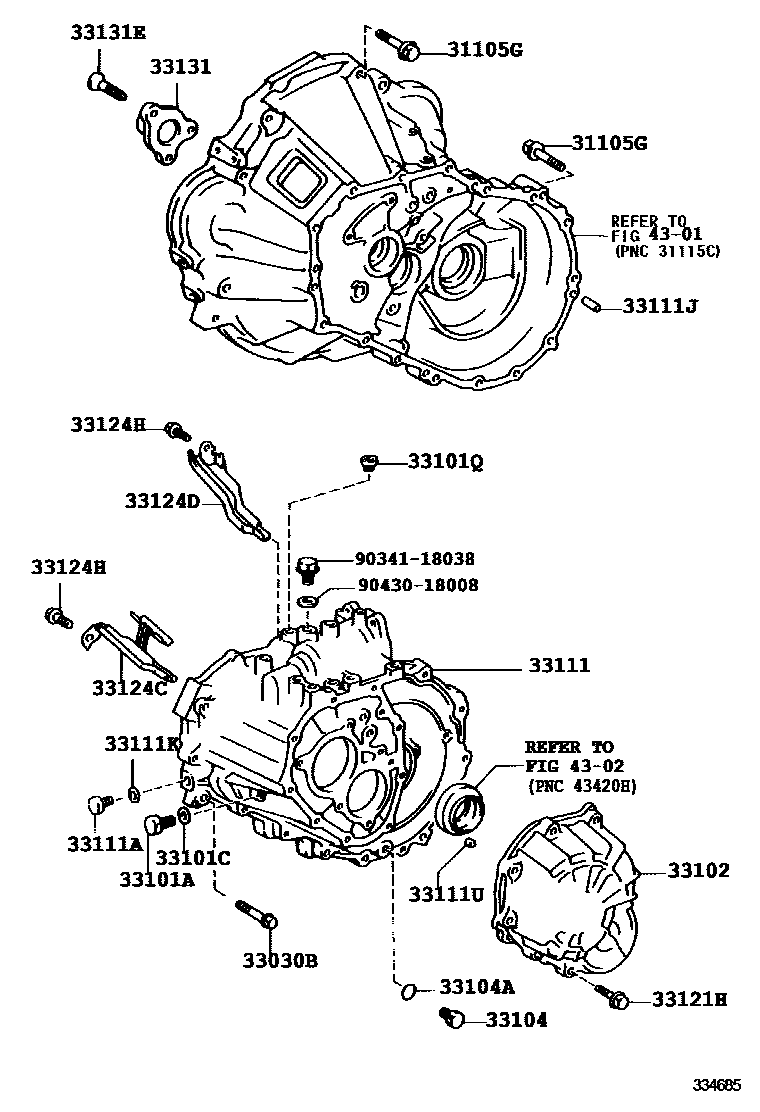

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C160 0002 1C50,C51,C52,C56 0003 1E58

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iAE10#..MTM199106

main90119-12042iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106

main90119-12128iAE101..GTZ199106-199505

main90119-12168×2iAE10#..MTM199106

main91611-60816iAE101..(G,GT,GTAPX)..5F199106-199704

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×13iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main90105-08086×3iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main90105-08126×17iAE101..GTZ199106-199505

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main90341-18033iAE101..GTZ199106-199505

main90341-18038iAE101..6F199704-199808

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE10#..MTM199106-199808

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iAE101..6F199704

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

main33102-12040iAE101..GTZ199106-199205

main33102-12041iAE101..GTZ199205-199505

main33102-12050iAE101..6F199704-199808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE10#..MTM199106-199808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE10#..MTM199106-199808

33111CASE, MANUAL TRANSMISSION

main33101-12170iAE101..GTZ199201-199505

main33101-32011iAE101..GTZ199106-199201

main33111-12220iAE101..6F199704-199808

main33111-16040iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199405

main33111-16060iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199405-199505

main33111-16061iAE10#..5F199505-199704

main33111-16062iAE10#..5F199704-199808

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18023iAE101..6F199704

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iAE10#..MTM199106-199808

main90250-12005×2iAE101..GTZ199106-199505

33111KGASKET(FOR TRANSMISSION CASE)

main90430-18008iAE101..6F199704

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630×10iAE101..GTZ199106-199505

main91611-60835×9iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iAE101..6F199704-199808

main33124-12010iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199503

main33124-12012iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199503-199808

main33124-12030iAE101..GTZ199106-199505

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199405

main33124-12021iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199405-199808

main33124-12040iAE101..GTZ199106-199208

main33124-12041iAE101..GTZ199208-199505

main33124-12050iAE101..6F199704-199808

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAE101..GTZ199106-199505

main91611-60820iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199808

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE10#..(F,G,GT,GTAPX,S,SJ,X)..5F199106-199608

main33131-12080iAE10#..MTM199608-199808

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106-199808

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9034118038

main90341-18038

9043018008

main90430-18008

23 parts on this diagram · 3 diagrams in section
