ALTERNATOR

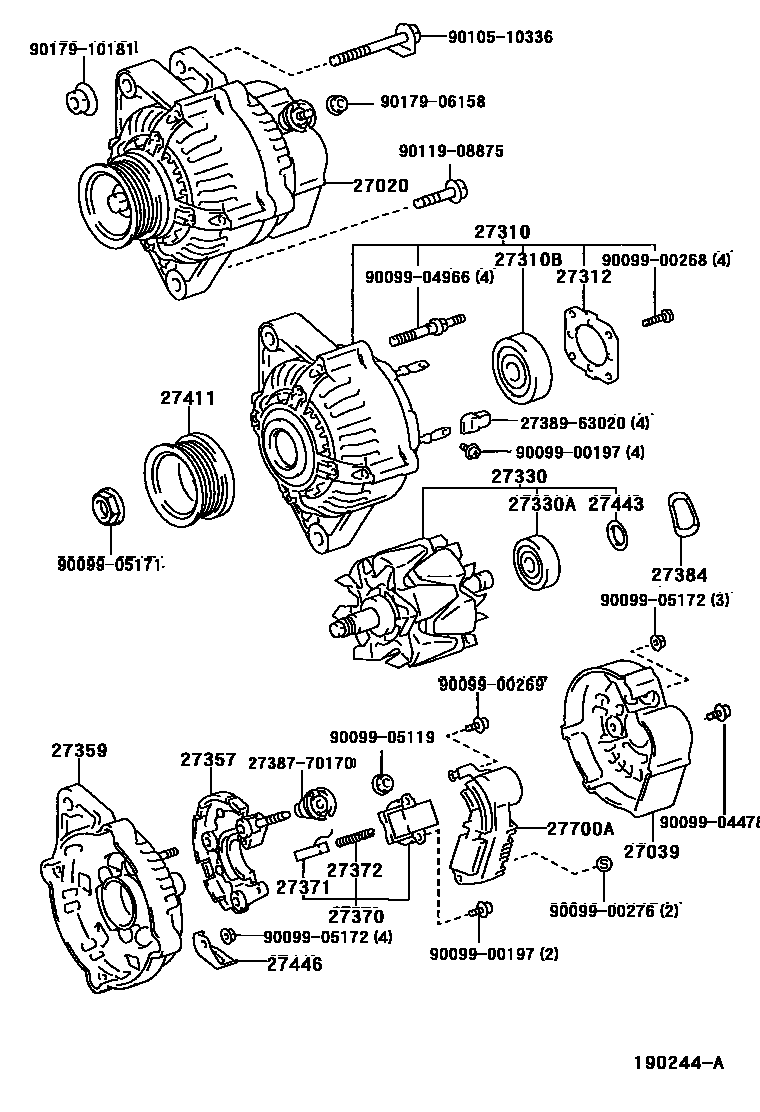

Parts diagram

27020ALTERNATOR ASSY

main27060-15050i199106-199205

main27060-15060i199106-199205

main27060-15080i199205-199505

main27060-15090i199205-199505

main27060-15130i199505

main27060-15140i199505-199705

main27060-16280i199106-199205

main27060-16290i199106-199205

main27060-16300i199106-199205

main27060-16320i199205-199505

main27060-16330i199205-199505

main27060-16340i199205-199505

main27060-16350i199505

main27060-16360i199505-199704

main27060-16460i199704

main27060-16470i199704

27039COVER, ALTERNATOR REAR END

main27039-15170i199106-199205

main27039-16310i199203-199205

main27039-16380i199701

main27039-42010i199106-199203

main27039-55080i199205

main27039-73020i199205-199701

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i199106

main27310-15180i199106-199704

main27310-16300i199106

main27310-16310i199106-199704

main27310-16320i199106-199505

main27310-16430i199704

main27310-16470i199704

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i199106

main90099-10179i199106-199505

main90099-10192i199106

27312PLATE, RETAINER

main27312-42010i199106

main27312-70200i199106

main27312-72100i199106-199505

27330ROTOR ASSY, ALTERNATOR

main27330-16161i199106-199505

main27330-16300i199106

main27330-46080i199205

main27330-64570i199701

main27330-72101i199508-199701

main27330-76030i199205

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i199106-199205

main90099-10194i199205

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16160i199106-199505

main27357-16310i199205-199505

main27357-16380i199701

main27357-50040i199106-199205

main27357-55080i199505

main27357-62040i199106-199205

main27357-63020i199106-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15170i199106-199601

main27359-15171i199601-199701

main27359-15180i199106

main27359-16180i199106-199505

main27359-16300i199106-199601

main27359-16301i199601-199701

main27359-16302i199701

main27359-16310i199106

main27359-16380i199701

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i199106-199207

main27370-54450i199106-199601

main27370-58320i199601

main27370-70300i199106-199207

main27370-75060i199106

27371BRUSH, ALTERNATOR

main27371-70300×2i199106

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i199106

27384WASHER

main27384-16380i199601

main27384-50030i199106

27411PULLEY, ALTERNATOR

main27411-16180i199106

main27411-42030i199106

main27411-74050i199106

27443COVER, ALTERNATOR BEARING

main27443-63020i199106

27446CLIP, ALTERNATOR CORD

main27446-15170i199106

27700AREGULATOR ASSY, GENERATOR

main27700-46030i199106-199205

main27700-74030i199205-199505

main27700-74040i199505

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510336

main90105-10336

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181
