SHORT BLOCK ASSEMBLY

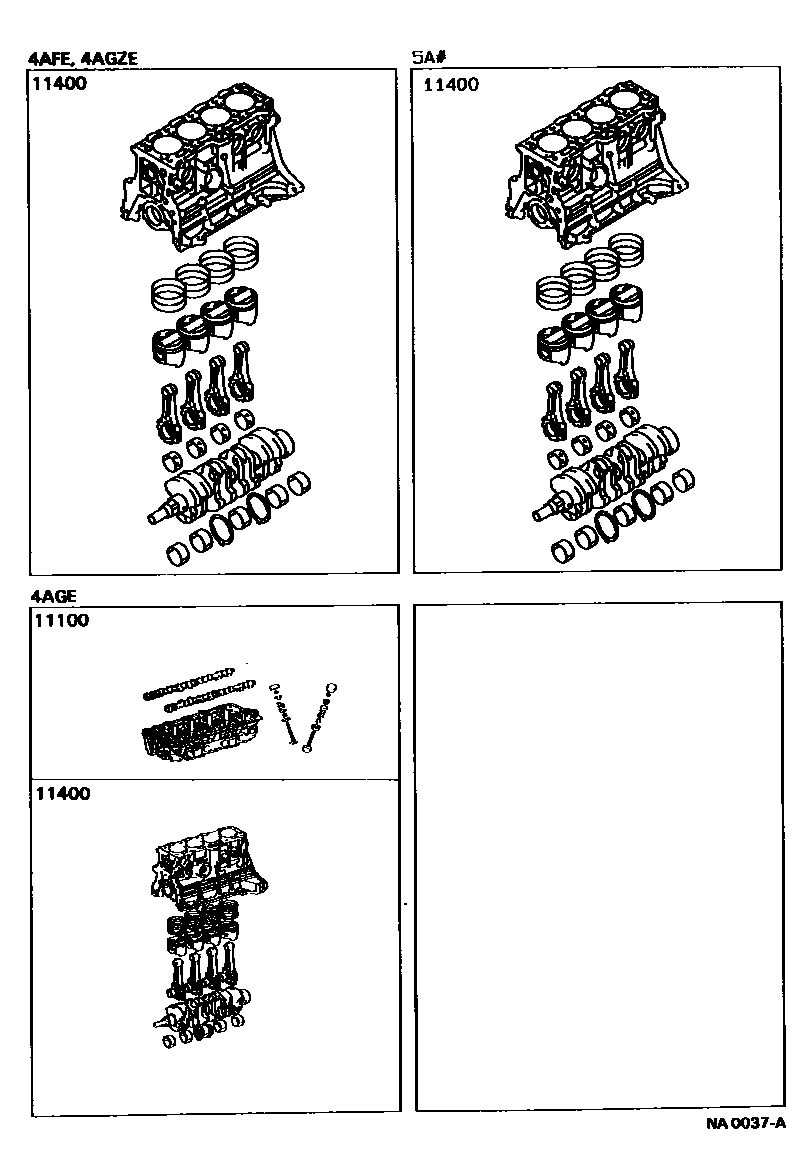

Parts diagram

11100HEAD ASSY, SHORT

main11100-16010i199106-199505

main11100-16020i199505

11400BLOCK ASSY, SHORT

main11400-16291i199106-199505

main11400-16300i199106-199505

main11400-16310i199106-199704

main11400-16340i199106-199505

main11400-16400i199505

main11400-16410i199505

main11400-16420i199704

2 parts on this diagram · 1 diagram in section
