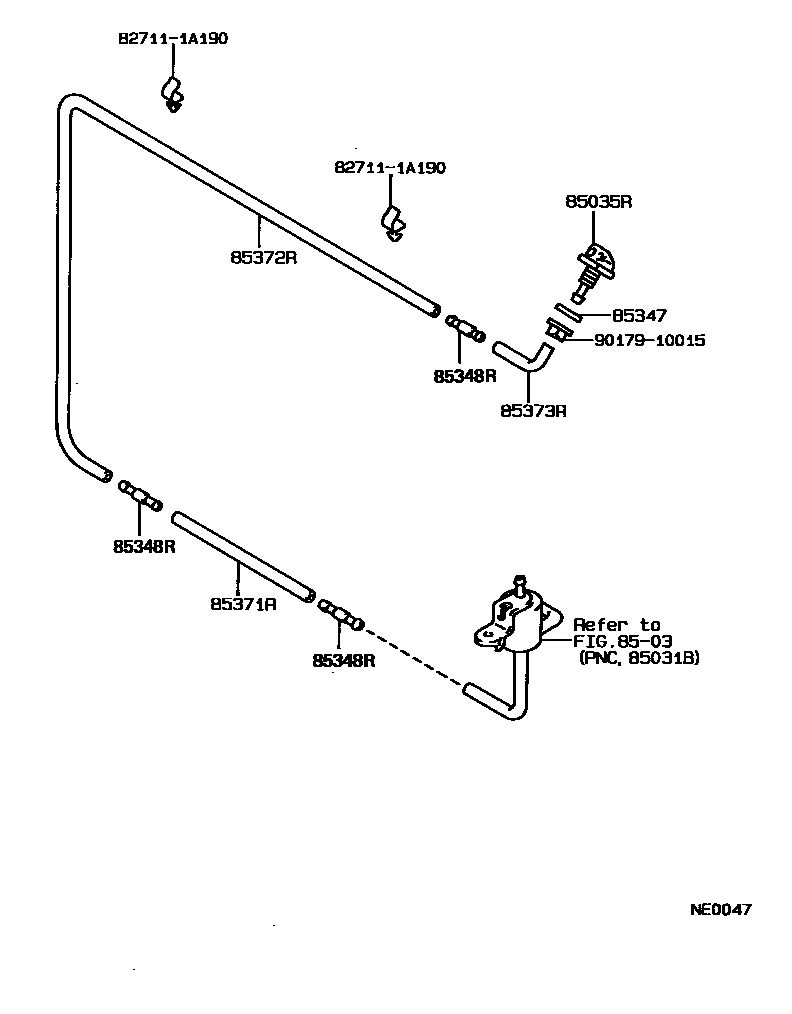

REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-12370iAE92..GTAPX,GTV,GTZ198705-199106

sub85391-22010

85347PACKING, REAR WASHER

main85347-12010iAE92..GTAPX,GTV,GTZ198705-199106

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAE92..GTAPX,GTV,GTZ198705-199106

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAE92..GTAPX,GTV,GTZ198705-198812

main90446-07001iAE92..GTAPX,GTV,GTZ198812-199106

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-59009iAE92..GTAPX,GTV,GTZ198705-199106

sub90099-33595

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAE92..GTAPX,GTV,GTZ198805-199106

main90099-33354iAE92..GTAPX,GTV,GTZ198705-198805

sub90099-33299

827111A190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A190

9017910015

main90179-10015

9 parts on this diagram · 1 diagram in section
