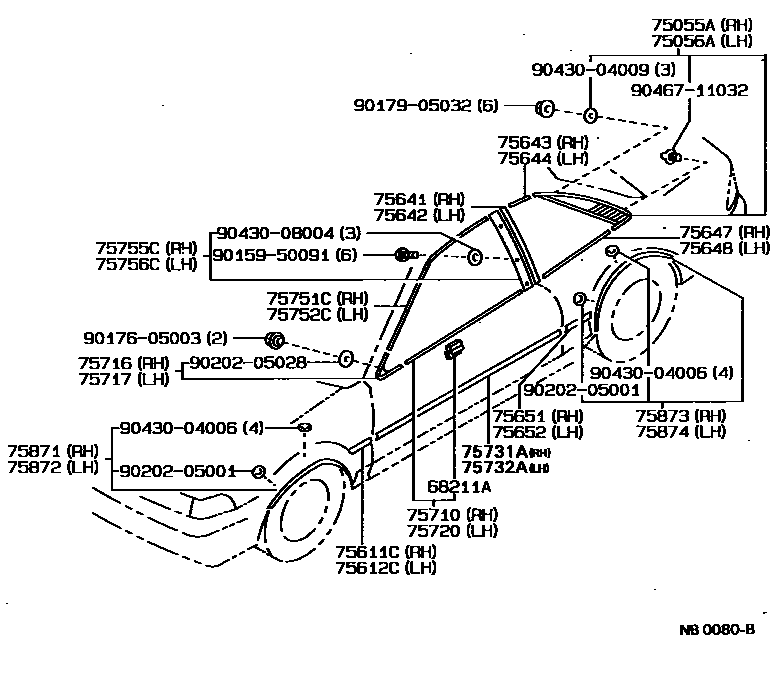

SIDE MOULDING

68211ACLIP, DOOR BELT MOULDING

main68211-12150iAE9#198705-199106

75055AGARNISH SUB-ASSY, QUARTER, OUTER RH

main75055-12100iAE92..GTAPX199001-199005

main75055-12100iAE92..GT,GTV,GTZ198705-199106

main75055-12100iAE92..GTAPX199101-199104

main75055-12110iAE9#..G,GTAPX,L,ZI,ZS198705-199106

75056AGARNISH SUB-ASSY, QUARTER, OUTER LH

main75056-12100iAE92..GTAPX199101-199104

main75056-12100iAE92..GT,GTV,GTZ198705-199106

main75056-12100iAE92..GTAPX199001-199005

main75056-12110iAE9#..G,GTAPX,L,ZI,ZS198705-199106

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-12340iAE91..L198705-198905

BLACK

main75611-12350-01iAE92..GTAPX198810-198905

main75611-12350-02iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER RED 2,3E5

main75611-12350-03iAE92..GTAPX198901-198905

main75611-12350-03iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

GRAY M,168

main75611-12350-05iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

BEIGE M,28E

main75611-12350-08iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER WHITE 2,040

main75611-12350-13iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SILVER M,23E

main75611-12360iAE9#..GT,L198705-198905

main75611-12380iAE91198905-199106

BLACK

main75611-12390-01iAE92198905-199106

BLACK M,205

main75611-12390-02iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER RED 2,3E5

main75611-12390-04iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

DARK BLUE MICA M,8E9

main75611-12390-07iAE92198905-199106

GRAYISH GREEN M,6K6

main75611-12390-08iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER WHITE 2,040

main75611-12390-17iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

LIGHT OLIVEISH GRAY,23M

main75611-12420iAE92..GTAPX199001-199005

main75611-12420iAE92..GTAPX199101-199104

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-12300iAE9#..GTV,ZI198705-198905

BLACK

main75612-12310-01iAE92..GTAPX198810-198905

main75612-12310-02iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER RED 2,3E5

main75612-12310-03iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

GRAY M,168

main75612-12310-03iAE92..GTAPX198901-198905

main75612-12310-05iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

BEIGE M,28E

main75612-12310-08iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER WHITE 2,040

main75612-12310-13iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SILVER M,23E

main75612-12320iAE9#..GT,L198705-198905

main75612-12340iAE91198905-199106

BLACK

main75612-12350-01iAE92198905-199106

BLACK M,205

main75612-12350-02iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER RED 2,3E5

main75612-12350-04iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

DARK BLUE MICA M,8E9

main75612-12350-07iAE92198905-199106

GRAYISH GREEN M,6K6

main75612-12350-08iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER WHITE 2,040

main75612-12350-17iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

LIGHT OLIVEISH GRAY,23M

main75612-12380iAE92..GTAPX199001-199005

main75612-12380iAE92..GTAPX199101-199104

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-12150iAE9#198705-199106

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-12150iAE9#198705-199106

75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH

main75643-12060iAE92..GTAPX199001-199005

main75643-12060iAE92..GTAPX199101-199104

main75643-12060iAE92..GT,GTV,GTZ198705-199106

main75643-12070iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75643-12090iAE9#..G,GTAPX,L,ZS198905-199106

75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH

main75644-12060iAE92..GT,GTV,GTZ198705-199106

main75644-12060iAE92..GTAPX199001-199005

main75644-12060iAE92..GTAPX199101-199104

main75644-12070iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75644-12090iAE9#..G,GTAPX,L,ZS198905-199106

75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH

main75647-12060iAE92..GT,GTV,GTZ198705-199106

main75647-12060iAE92..GTAPX199001-199005

main75647-12060iAE92..GTAPX199101-199104

main75647-12070iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75647-12090iAE9#..G,GTAPX,L,ZS198905-199106

75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH

main75648-12060iAE92..GTAPX199001-199005

main75648-12060iAE92..GTAPX199101-199104

main75648-12060iAE92..GT,GTV,GTZ198705-199106

main75648-12070iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75648-12090iAE9#..G,GTAPX,L,ZS198905-199106

75651MOULDING, QUARTER, OUTSIDE RH

main75651-12740iAE9#..GTV,ZI198705-198905

BLACK

main75651-12750-01iAE92..GTAPX198810-198905

main75651-12750-02iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER RED 2,3E5

main75651-12750-03iAE92..GTAPX198901-198905

main75651-12750-03iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

GRAY M,168

main75651-12750-05iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

BEIGE M,28E

main75651-12750-08iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER WHITE 2,040

main75651-12750-13iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SILVER M,23E

main75651-12760iAE9#..GT,L198705-198905

main75651-12820iAE91198905-199106

BLACK

main75651-12830-01iAE92198905-199106

BLACK M,205

main75651-12830-02iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER RED 2,3E5

main75651-12830-04iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

DARK BLUE MICA M,8E9

main75651-12830-07iAE92198905-199106

GRAYISH GREEN M,6K6

main75651-12830-08iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER WHITE 2,040

main75651-12830-17iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

LIGHT OLIVEISH GRAY,23M

main75651-12880iAE92..GTAPX199101-199104

main75651-12880iAE92..GTAPX199001-199005

75652MOULDING, QUARTER, OUTSIDE LH

main75652-12740iAE91..L198705-198905

BLACK

main75652-12750-01iAE92..GTAPX198810-198905

main75652-12750-02iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER RED 2,3E5

main75652-12750-03iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

GRAY M,168

main75652-12750-03iAE92..GTAPX198901-198905

APEX LIMITED,GRAY M

main75652-12750-05iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

BEIGE M,28E

main75652-12750-08iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER WHITE 2,040

main75652-12750-13iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SILVER M,23E

main75652-12760iAE9#..GT,L198705-198905

main75652-12820iAE91198905-199106

BLACK

main75652-12830-01iAE92198905-199106

BLACK M,205

main75652-12830-02iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER RED 2,3E5

main75652-12830-04iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

DARK BLUE MICA M,8E9

main75652-12830-07iAE92198905-199106

GRAYISH GREEN M,6K6

main75652-12830-08iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER WHITE 2,040

main75652-12830-17iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

LIGHT OLIVEISH GRAY,23M

main75652-12880iAE92..GTAPX199001-199005

main75652-12880iAE92..GTAPX199101-199104

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12450iAE92..GT,GTV,GTZ198705-199106

main75710-12450iAE92..GTAPX199001-199005

main75710-12450iAE92..GTAPX199101-199104

main75710-12460iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75710-12470iAE9#..G,GTAPX,L,ZS198905-199106

75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH

main75716-12070iAE92..GTAPX199001-199005

main75716-12070iAE92..GT,GTV,GTZ198705-199106

main75716-12070iAE92..GTAPX199101-199104

main75716-12080iAE9#..G,GTAPX,L,ZS198905-199106

main75716-12090iAE9#..G,GTAPX,L,ZI,ZS198705-199106

75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH

main75717-12080iAE92..GTAPX199101-199104

main75717-12080iAE92..GTAPX199001-199005

main75717-12080iAE92..GT,GTV,GTZ198705-199106

main75717-12090iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75717-12100iAE9#..G,GTAPX,L,ZS198905-199106

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12450iAE92..GTAPX199001-199005

main75720-12450iAE92..GTAPX199101-199104

main75720-12450iAE92..GT,GTV,GTZ198705-199106

main75720-12460iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75720-12470iAE9#..G,GTAPX,L,ZS198905-199106

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-1A060iAE91..G198705-198905

BLACK

main75731-1A070-01iAE92..GTAPX198810-198905

main75731-1A070-02iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER RED 2,3E5

main75731-1A070-03iAE92..GTAPX198901-198905

main75731-1A070-03iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

GRAY M,168

main75731-1A070-05iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

BEIGE M,28E

main75731-1A070-08iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER WHITE 2,040

main75731-1A070-13iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SILVER M,23E

main75731-1A080iAE9#..GT,L198705-198905

main75731-1A190iAE91198905-199106

BLACK

main75731-1A200-01iAE92198905-199106

BLACK M,205

main75731-1A200-02iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER RED 2,3E5

main75731-1A200-04iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

DARK BLUE MICA M,8E9

main75731-1A200-07iAE92198905-199106

GRAYISH GREEN M,6K6

main75731-1A200-08iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER WHITE 2,040

main75731-1A200-17iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

LIGHT OLIVEISH GRAY,23M

main75731-1A320iAE92..GTAPX199101-199104

main75731-1A320iAE92..GTAPX199001-199005

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-12790iAE9#..GTV,ZI198705-198905

BLACK

main75732-12800-01iAE92..GTAPX198810-198905

main75732-12800-02iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER RED 2,3E5

main75732-12800-03iAE92..GTAPX198901-198905

main75732-12800-03iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

GRAY M,168

main75732-12800-05iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

BEIGE M,28E

main75732-12800-08iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SUPER WHITE 2,040

main75732-12800-13iAE9#..G,GTAPX,GTV,GTZ,ZI198705-198905

SILVER M,23E

main75732-12810iAE9#..GT,L198705-198905

main75732-1A030iAE91198905-199106

BLACK

main75732-1A040-01iAE92198905-199106

BLACK M,205

main75732-1A040-02iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER RED 2,3E5

main75732-1A040-04iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

DARK BLUE MICA M,8E9

main75732-1A040-07iAE92198905-199106

GRAYISH GREEN M,6K6

main75732-1A040-08iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

SUPER WHITE 2,040

main75732-1A040-17iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

LIGHT OLIVEISH GRAY,23M

main75732-1A160iAE92..GTAPX199001-199005

main75732-1A160iAE92..GTAPX199101-199104

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-12160iAE92..GTAPX199101-199104

main75751-12160iAE92..GTAPX199001-199005

main75751-12160iAE92..GT,GTV,GTZ198705-199106

main75751-12170iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75751-12180iAE9#..G,GTAPX,L,ZS198905-199106

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-12160iAE92..GTAPX199001-199005

main75752-12160iAE92..GTAPX199101-199104

main75752-12160iAE92..GT,GTV,GTZ198705-199106

main75752-12170iAE9#..G,GTAPX,L,ZI,ZS198705-199106

main75752-12180iAE9#..G,GTAPX,L,ZS198905-199106

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-12080iAE9#198705-199106

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-12100iAE9#198705-199106

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-19035-01iAE92..SPC198905-199106

BLACK M,205

main75085-19035-02iAE92..SPC198705-199106

SUPER RED 2,3E5

main75085-19035-03iAE92..SPC198705-198905

GRAY M,168

main75085-19035-04iAE92..SPC198905-199106

DARK BLUE MICA M,8E9

main75085-19035-05iAE92..SPC198705-198905

BEIGE M,28E

main75085-19035-07iAE92..SPC198905-199106

GRAYISH GREEN M,6K6

main75085-19035-08iAE92..SPC198705-199106

SUPER WHITE 2,040

main75085-19035-13iAE92..SPC198705-198905

SILVER M,23E

main75085-19035-17iAE92..SPC198905-199106

LIGHT OLIVEISH GRAY,23M

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-19035-01iAE92..SPC198905-199106

BLACK M,205

main75086-19035-02iAE92..SPC198705-199106

SUPER RED 2,3E5

main75086-19035-03iAE92..SPC198705-198905

GRAY M,168

main75086-19035-04iAE92..SPC198905-199106

DARK BLUE MICA M,8E9

main75086-19035-05iAE92..SPC198705-198905

BEIGE M,28E

main75086-19035-07iAE92..SPC198905-199106

GRAYISH GREEN M,6K6

main75086-19035-08iAE92..SPC198705-199106

SUPER WHITE 2,040

main75086-19035-13iAE92..SPC198705-198905

SILVER M,23E

main75086-19035-17iAE92..SPC198905-199106

LIGHT OLIVEISH GRAY,23M

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-19055-01iAE92..SPC198905-199106

BLACK M,205

main75087-19055-02iAE92..SPC198705-199106

SUPER RED 2,3E5

main75087-19055-03iAE92..SPC198705-198905

GRAY M,168

main75087-19055-04iAE92..SPC198905-199106

DARK BLUE MICA M,8E9

main75087-19055-05iAE92..SPC198705-198905

BEIGE M,28E

main75087-19055-07iAE92..SPC198905-199106

GRAYISH GREEN M,6K6

main75087-19055-08iAE92..SPC198705-199106

SUPER WHITE 2,040

main75087-19055-13iAE92..SPC198705-198905

SILVER M,23E

main75087-19055-17iAE92..SPC198905-199106

LIGHT OLIVEISH GRAY,23M

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-19055-01iAE92..SPC198905-199106

BLACK M,205

main75088-19055-02iAE92..SPC198705-199106

SUPER RED 2,3E5

main75088-19055-03iAE92..SPC198705-198905

GRAY M,168

main75088-19055-04iAE92..SPC198905-199106

DARK BLUE MICA M,8E9

main75088-19055-05iAE92..SPC198705-198905

BEIGE M,28E

main75088-19055-07iAE92..SPC198905-199106

GRAYISH GREEN M,6K6

main75088-19055-08iAE92..SPC198705-199106

SUPER WHITE 2,040

main75088-19055-13iAE92..SPC198705-198905

SILVER M,23E

main75088-19055-17iAE92..SPC198905-199106

LIGHT OLIVEISH GRAY,23M

9015950091

main90159-50091

9017605003

main90176-05003

9017905032

main90179-05032

9020205001

main90202-05001

9020205028

main90202-05028

9043004006

main90430-04006

9043004009

main90430-04009

9043008004

main90430-08004

9046711032

main90467-11032

36 parts on this diagram · 1 diagram in section
