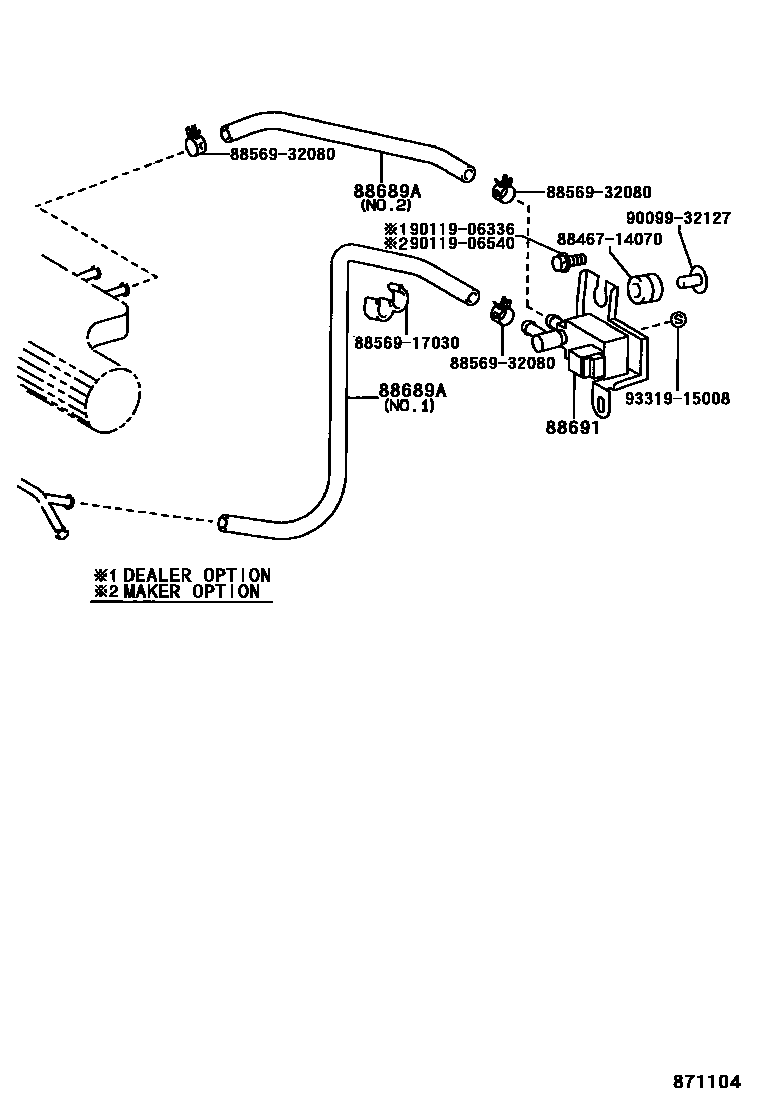

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88689AHOSE, COOLER VACUUM NO.1

main88689-12430iAE111;AE114..4FC199505-199704

NO.2(OUT)

main88689-12430iAE111,114..SCRU,SEVIN,XEVIN199505-199704

main88689-12440iAE111,114..SCRU,SEVIN,XEVIN199505-199704

main88689-12440iAE111;AE114..4FC199505-199704

NO.1(IN)

main88689-12520iAE114..LX199505-199704

NO.1(IN)

main88689-12530iAE114..LX199505-199704

NO.2(OUT)

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-12180iAE111,114199505-199704

main88691-12200iCE11#..SEVIN199505-199804

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8856917030CLAMP (FOR COOLER RELAY)

main88569-17030

8856932080CLAMP (FOR COOLER RELAY)

main88569-32080

9009932127

main90099-32127

9011906336

main90119-06336

9011906540

main90119-06540

9331915008

main93319-15008

9 parts on this diagram · 2 diagrams in section
